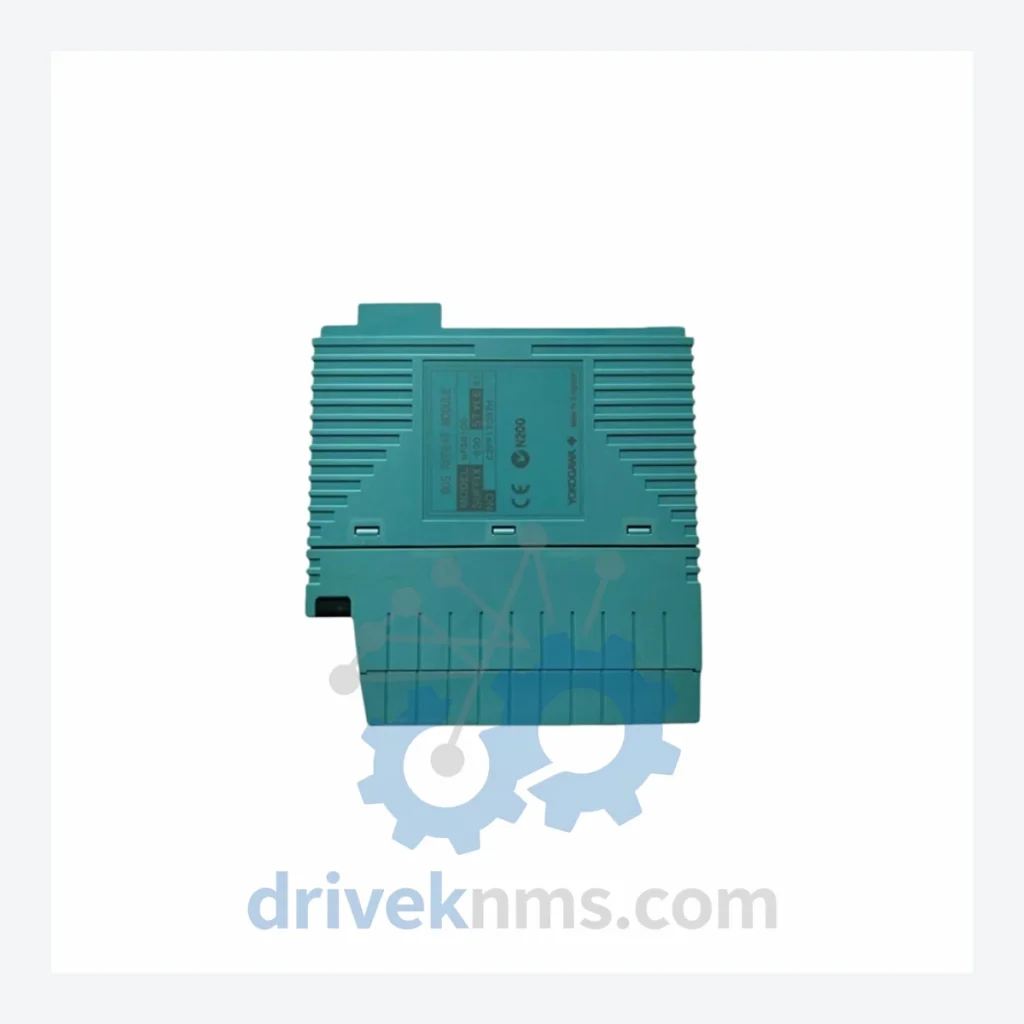

Yokogawa NFSB100-S01 S1 Bus Repeat Module

Technical Dossier

Product Details And Specifications

Yokogawa NFSB100 Series: Comprehensive Module Range and Technical Overview

The Yokogawa NFSB100 series is a field-proven bus repeat module family deployed within the Yokogawa CENTUM CS 3000 and CENTUM VP Distributed Control Systems (DCS). These modules function as signal repeaters on the V-net/RIO (Remote I/O) bus architecture, extending communication reach between field control stations (FCS) and remote I/O units across large-scale industrial installations. The NFSB100 series holds a significant installed base in continuous-process industries including petroleum refining, petrochemical complexes, LNG terminals, nuclear power auxiliary systems, and large-scale chemical manufacturing plants. Its role is infrastructure-critical: a failed bus repeat module can isolate entire I/O segments from the control network, making reliable spare parts availability a plant-safety concern, not merely a maintenance issue.

The Evolution of NFSB100 Architecture

The NFSB100 series was introduced as part of Yokogawa's transition from the earlier CENTUM XL and CENTUM CS platforms toward the unified CENTUM CS 3000 architecture in the late 1990s. The V-net bus, a proprietary high-speed token-passing network operating at 10 Mbps, required dedicated hardware repeaters to overcome distance limitations and segment isolation requirements in large plant topologies. The NFSB100 addressed this by providing transparent bus extension with full electrical isolation between segments.

As Yokogawa evolved the platform into CENTUM VP (introduced circa 2008), the underlying V-net/RIO bus protocol was retained for backward compatibility, allowing NFSB100 modules to remain operational within VP-generation FCS cabinets. This cross-generation compatibility is a defining characteristic of the series and a primary reason for its continued demand in the aftermarket. Plants running hybrid CS 3000 / VP configurations routinely require NFSB100 spares to maintain legacy I/O segments without full migration. The series is now in its mature/end-of-active-production phase; Yokogawa's current architecture direction favors Ethernet-based FIO (Field I/O) in new installations, making long-term maintenance support for NFSB100 a critical procurement consideration.

NFSB100 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented NFSB100 series variants and closely associated bus infrastructure modules within the CENTUM CS 3000 / VP ecosystem. Each entry reflects a distinct hardware suffix denoting revision level, suffix options, or regional specification:

NFSB100-S01 S1: Bus repeat module, single-channel V-net/RIO segment extension, standard suffix S1 revision.
NFSB100-S01 S2: Bus repeat module, single-channel, S2 hardware revision with updated backplane connector spec.
NFSB100-S01 S3: Bus repeat module, single-channel, S3 revision; latest active-production hardware level.
NFSB100-S02: Dual-channel bus repeat module for redundant V-net segment bridging in high-availability FCS configurations.
NFSB100-S02 S1: Dual-channel variant, S1 revision; commonly paired with redundant FCS in refinery applications.
NFSB100-S02 S2: Dual-channel variant, S2 revision; updated EMC compliance markings for EU installations.
NFSB110: Enhanced bus repeat module with extended operating temperature range (-20°C to +70°C) for outdoor cabinet use.
NFSB110-S01: NFSB110 standard suffix variant; used in CENTUM VP R5 and later FCS builds.
NFSB120: Fiber-optic bus repeat module; converts V-net electrical signal to optical for long-distance segment extension (up to 2 km).
NFSB120-S01: NFSB120 with ST-type fiber connectors; standard plant-floor fiber infrastructure compatible.
NFSB120-S02: NFSB120 with LC-type fiber connectors; specified for installations post-2010 using LC-standard fiber patch panels.
NFSB130: Bus repeat module with integrated diagnostics port; supports online segment health monitoring via CENTUM VP engineering console.
NFSB130-S01: NFSB130 standard production variant; includes LED status indicators for segment A/B bus activity.
NFSB140: High-isolation bus repeat module rated for hazardous area adjacent installations; reinforced galvanic isolation to 1500 V.
NFSB140-S01: NFSB140 standard suffix; CE and ATEX documentation package included.
NFSB150: Next-generation bus repeat module compatible with CENTUM VP R6 FIO migration path; supports both V-net/RIO and Vnet/IP bridging modes.

Sourcing Hard-to-Find & Obsolete NFSB100 Series Parts

DriveKNMS maintains a dedicated inventory program for Yokogawa CENTUM CS 3000 and VP bus infrastructure components, with specific focus on NFSB100 series modules that have transitioned out of Yokogawa's active production catalog. For plants operating on extended maintenance contracts or deferring full DCS migration, the inability to source a single NFSB100 unit can result in forced I/O segment shutdown or unplanned engineering workarounds.

DriveKNMS sources NFSB100 series modules through verified decommissioning channels, factory-surplus networks, and long-term storage partners. All units are cataloged by hardware revision suffix (S1, S2, S3) to ensure exact-match replacement. Cross-revision compatibility is assessed on a case-by-case basis and documented prior to shipment. For plants requiring multi-unit quantities for scheduled turnaround maintenance, DriveKNMS can provide batch sourcing with lead-time commitments. Emergency single-unit dispatch for unplanned outages is also supported with expedited logistics coordination.

Quality Control for the NFSB100 Range

The NFSB100 series presents specific quality verification challenges due to its role as a bus-layer infrastructure component. Unlike I/O modules where functional testing can be performed against known signal inputs, bus repeat modules must be validated under active network load conditions to confirm repeater transparency, signal integrity, and isolation performance.

DriveKNMS applies the following test protocol to all NFSB100 series units prior to dispatch: (1) Visual inspection of backplane connector pins and PCB for corrosion, mechanical damage, or evidence of thermal stress. (2) Power-on functional test confirming correct LED status indication for both bus segment ports. (3) Active V-net bus loopback test using a CENTUM CS 3000 / VP test bench, confirming token-passing continuity across the repeat module at rated bus speed. (4) Isolation resistance measurement between bus segment A and segment B ports, verified against Yokogawa's published specification of ≥10 MΩ at 500 VDC. (5) Final burn-in cycle of 24 hours under continuous bus traffic load before packaging. Each unit ships with a test report referencing the specific hardware serial number and revision suffix.
