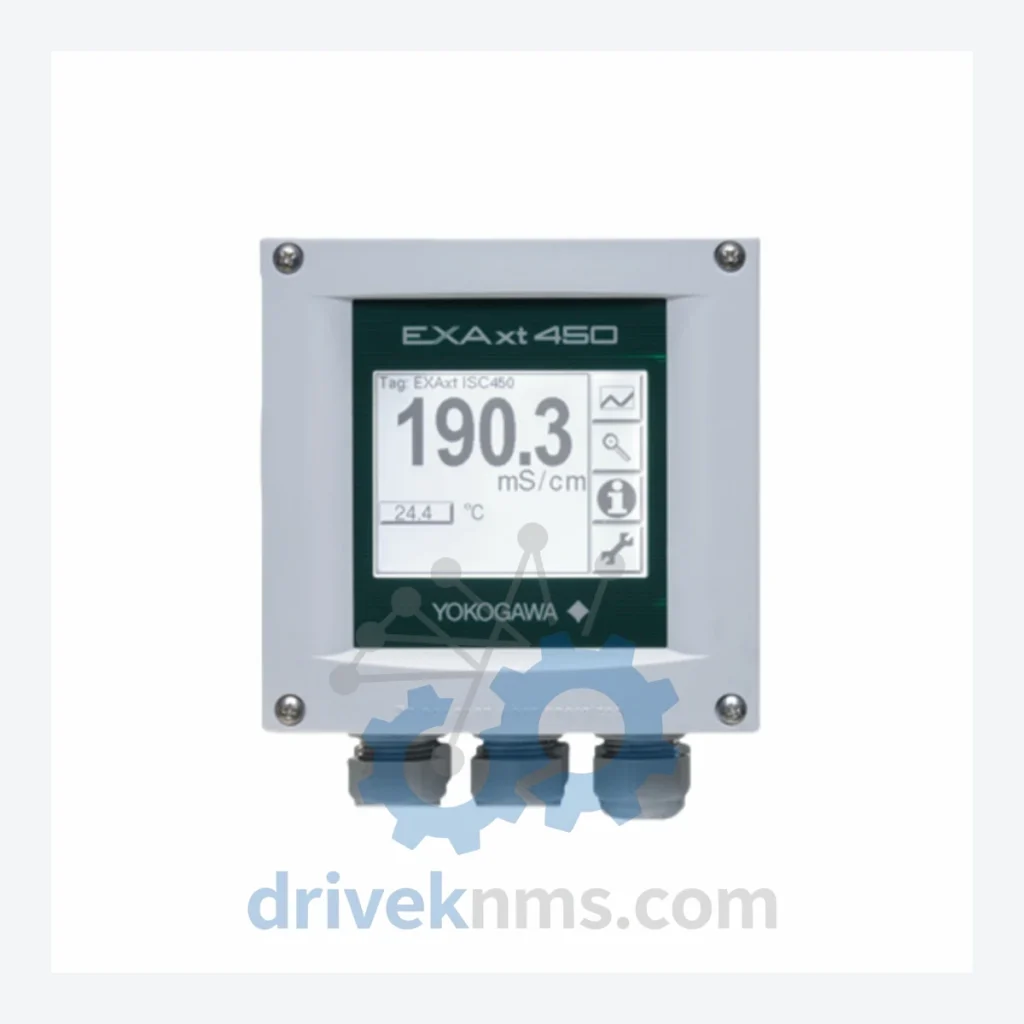

YOKOGAWA SC450 Resistivity Converters

Technical Dossier

Product Details And Specifications

YOKOGAWA SC450 Series: Comprehensive Module Range and Technical Overview

The YOKOGAWA SC450 series is a line of industrial resistivity and conductivity converters engineered for continuous liquid analysis in demanding process environments. Deployed across petrochemical refineries, nuclear power generation facilities, semiconductor ultrapure water systems, pharmaceutical manufacturing, and chemical processing plants, the SC450 platform occupies a critical position in process analytical instrumentation globally. Its architecture supports both 2-wire and 4-wire toroidal and contacting conductivity/resistivity sensor configurations, making it a versatile backbone for inline quality monitoring where measurement integrity directly affects product yield and regulatory compliance.

The SC450 series interfaces with Yokogawa's broader CENTUM VP and STARDOM distributed control systems, as well as third-party DCS platforms via standard 4–20 mA analog output and HART communication. Its modular design allows field replacement of converter heads without process interruption, a feature that has driven its adoption in continuous-operation facilities where downtime carries significant financial and safety consequences.

The Evolution of SC450 Architecture

The SC450 series succeeded Yokogawa's earlier SC series analyzers (including the SC402 and SC420 families) as part of a broader rationalization of the company's liquid analysis portfolio in the late 1990s and 2000s. Early SC450 variants were designed around analog signal conditioning circuits with discrete component amplifier stages, targeting resistivity measurement ranges from 0.05 MΩ·cm to 20 MΩ·cm — a specification set driven by the semiconductor industry's ultrapure water requirements.

Subsequent hardware revisions introduced microprocessor-based signal processing, enabling temperature compensation algorithms (linear, pure water, and custom curve modes) and expanded diagnostic output. The suffix coding system (e.g., -A-A, -B-A, -C-A) encodes power supply voltage, output configuration, and approval class, allowing the same base converter to be specified across North American, European, and Asian installations without hardware redesign.

As the SC450 series has entered its mature/end-of-life phase, Yokogawa has positioned the FLXA21 and FLXA202 multi-parameter analyzers as the primary migration path. However, the installed base of SC450 units in long-lifecycle industries (nuclear, refining, water treatment) remains substantial, and direct replacement parts and reconditioned units continue to be sourced through specialist distributors. Facilities operating SC450 converters should prioritize securing spare units and critical sub-assemblies to support 10–15 year maintenance horizons.

SC450 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified SC450 series product range. Each model is identified by its base part number and suffix configuration. Models are categorized by primary function:

Resistivity Converters

• SC450G-A-A: 2-wire resistivity converter, 100–240 VAC power, standard analog output, general-purpose approval — the core SKU for ultrapure water resistivity monitoring.
• SC450G-B-A: 2-wire resistivity converter, 24 VDC power supply variant, suitable for DCS-powered field installations with DC bus infrastructure.
• SC450G-C-A: 2-wire resistivity converter with HART communication output, enabling digital superimposition on 4–20 mA loop for asset management integration.
• SC450G-A-B: Resistivity converter with explosion-proof (Ex d) approval, IECEx/ATEX certified, for Zone 1/Zone 2 hazardous area installation.
• SC450G-D-A: High-resistivity range variant (up to 20 MΩ·cm), optimized for semiconductor-grade ultrapure water systems requiring sub-ppb ionic contamination detection.

Conductivity Converters

• SC450C-A-A: 2-electrode contacting conductivity converter, 100–240 VAC, standard output — primary model for general industrial conductivity measurement.
• SC450C-B-A: Contacting conductivity converter, 24 VDC power, for loop-powered field installations.
• SC450C-C-A: Contacting conductivity converter with HART output, compatible with Yokogawa PRM and third-party asset management platforms.
• SC450C-A-B: Contacting conductivity converter, explosion-proof approval, for hazardous area process streams.
• SC450T-A-A: Toroidal (inductive) conductivity converter, 100–240 VAC, for high-conductivity or fouling-prone process streams where contacting sensors are impractical.
• SC450T-B-A: Toroidal conductivity converter, 24 VDC power variant, for DCS-integrated field installations.
• SC450T-C-A: Toroidal conductivity converter with HART communication, enabling digital diagnostics over standard 4–20 mA wiring.
• SC450T-A-B: Toroidal conductivity converter, explosion-proof (ATEX/IECEx) approved, for Zone 1 hazardous area service.

Accessories & Sub-Assemblies

• SC450-PSU-AC: Replacement AC power supply board assembly for SC450 series converters — critical spare for aging installations.
• SC450-DISP: LCD display/keypad sub-assembly for SC450 converter heads, required for local indication and parameter configuration.
• SC450-TERM: Terminal block and wiring harness assembly for SC450 field housing, used during converter head replacement or refurbishment.

Sourcing Hard-to-Find & Obsolete SC450 Parts

The SC450 series has been formally discontinued by Yokogawa, with the FLXA21 and FLXA202 designated as successor platforms. However, direct migration is not always operationally or economically viable for facilities with large SC450 installed bases, validated process configurations, or long-term maintenance contracts that predate the discontinuation announcement.

DriveKNMS maintains a dedicated inventory program for SC450 series converters and sub-assemblies, sourced through authorized surplus channels, factory-reconditioned units, and controlled decommissioning of operational installations. Stock is held for the most common suffix configurations (A-A, B-A, C-A, A-B) across both the SC450G (resistivity) and SC450C/T (conductivity) product lines.

Quality Control for the SC450 Range

SC450 series converters present specific quality verification challenges due to their analog signal conditioning architecture and the precision required for resistivity measurement at MΩ·cm ranges. DriveKNMS applies a structured test protocol to all SC450 units prior to dispatch:

• Power-on functional verification: Full power-up sequence with display initialization check and self-diagnostic pass confirmation across all power supply variants (AC and 24 VDC).
• Analog output calibration check: 4–20 mA output verified against traceable resistance decade box inputs at 0%, 25%, 50%, 75%, and 100% of rated measurement range. Linearity error must be within ±0.5% of span.
• Temperature compensation circuit validation: PT1000 RTD input simulation across 0–100°C range; compensation algorithm output verified against Yokogawa published correction tables.
• HART communication integrity test (for -C suffix models): HART frame transmission and response verified using a calibrated HART communicator; device descriptor and variable mapping confirmed against factory configuration.
• Insulation resistance test: 500 VDC megohm test between power supply terminals and signal circuit to verify isolation integrity of aging units.
• Housing and terminal inspection: Physical inspection of field housing, cable gland threads, terminal block condition, and display glass for damage or corrosion consistent with field service history.

All test results are documented and accompany each unit shipment. Units failing any test parameter are either repaired to specification or removed from serviceable inventory.
