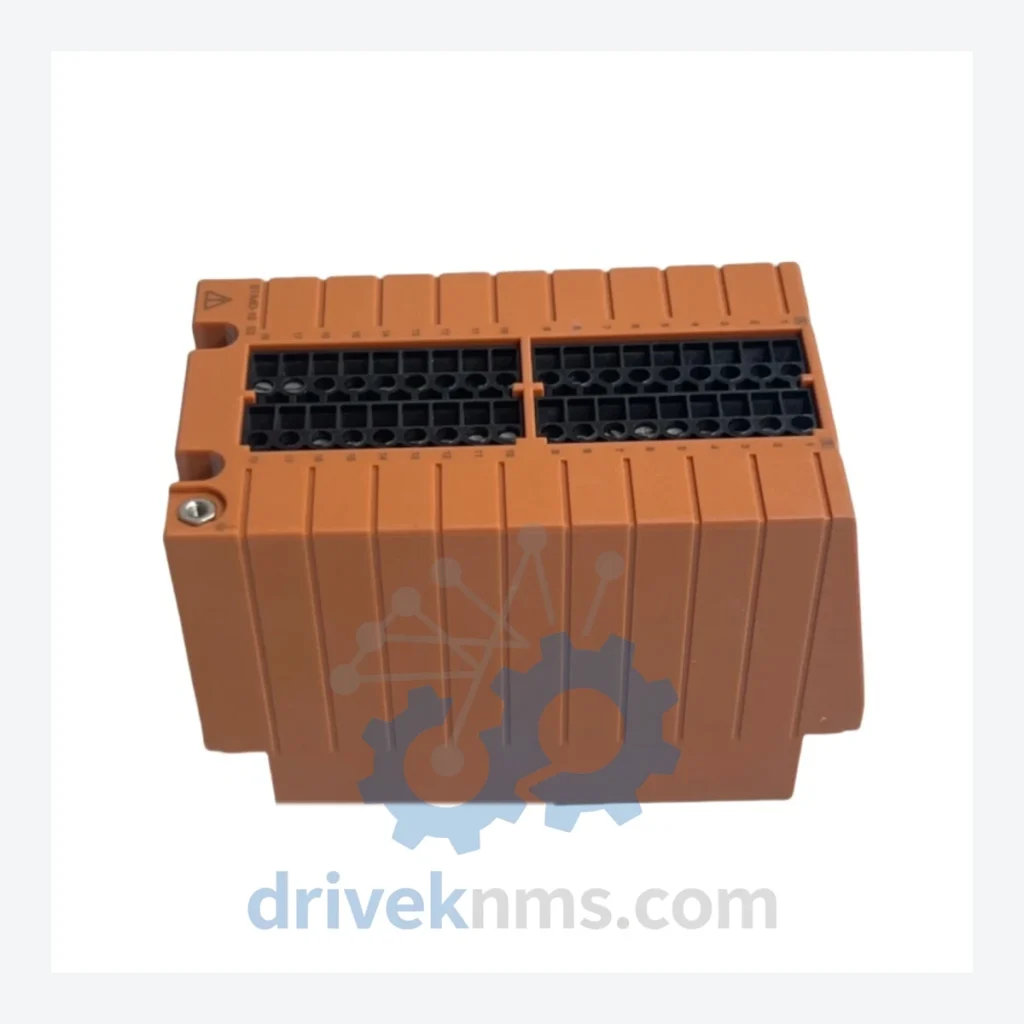

Yokogawa STA4D Series Terminal Blocks

Technical Dossier

Product Details And Specifications

Yokogawa STA4D Series: Comprehensive Module Range and Technical Overview

The Yokogawa STA4D series of pressure clamp terminal blocks occupies a critical position in global heavy-industry field wiring infrastructure. Deployed extensively across petrochemical complexes, nuclear power facilities, offshore platforms, and continuous-process refineries, the STA4D range serves as the standardized field-side termination interface for Yokogawa CENTUM CS, CENTUM VP, and ProSafe-RS distributed control system (DCS) architectures. Its adoption in safety-instrumented systems (SIS) and high-density I/O marshalling cabinets reflects its compliance with IEC 60947-7-1 terminal block standards and its compatibility with Yokogawa's proprietary node-to-field wiring conventions. The series is manufactured in Japan and is subject to Yokogawa's industrial-grade quality certification processes, making it a reference component for long-term plant asset management programs.

The Evolution of STA4D Architecture

The STA4D terminal block series was introduced as part of Yokogawa's standardized field wiring ecosystem to support the CENTUM CS 1000/3000 generation of DCS platforms, which entered widespread deployment in the mid-1990s. The pressure clamp (also referred to as spring-clamp or Cage Clamp) termination mechanism replaced earlier screw-type terminals in high-vibration and high-cycle-maintenance environments, reducing the risk of conductor loosening over time.

As Yokogawa transitioned its installed base toward CENTUM VP (introduced circa 2008) and subsequently toward the CENTUM VP R6 architecture, the STA4D series maintained backward-compatible footprint dimensions, allowing direct substitution in existing marshalling cabinets without panel modification. The suffix designations (e.g., S2, S3) denote connector pitch variants and insulation color coding used for functional identification within multi-rail terminal assemblies. The series interfaces with Yokogawa's FTB (Field Terminal Block) and MTB (Marshalling Terminal Block) sub-assemblies, and is cross-referenced against Yokogawa part numbers in the KF series and EB series field wiring documentation.

As of 2026, the STA4D series is in the mature-to-declining phase of its product lifecycle. Yokogawa continues to supply select variants through its global spare parts network, but several sub-variants have been classified as limited-availability or end-of-life. Plants operating CENTUM CS 3000 systems with original STA4D wiring infrastructure are advised to conduct forward-looking spare parts audits and establish buffer stock for critical termination points.

STA4D Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented STA4D series range. Each entry reflects a distinct mechanical or electrical specification variant used in Yokogawa DCS field wiring assemblies:

STA4D-10 S2: Pressure clamp terminal block, 4mm² conductor, 10-position rail, S2 pitch variant — the primary subject of this listing.
STA4D-10 S3: Pressure clamp terminal block, 4mm² conductor, 10-position rail, S3 pitch, used in higher-density marshalling rows.
STA4D-6 S2: 6-position pressure clamp terminal, 4mm² conductor, S2 pitch, applied in compact I/O sub-panels.
STA4D-6 S3: 6-position pressure clamp terminal, 4mm² conductor, S3 pitch, alternate density configuration.
STA4D-20 S2: 20-position extended rail terminal block, 4mm² conductor, S2 pitch, used in high-channel-count marshalling cabinets.
STA4D-20 S3: 20-position extended rail terminal block, S3 pitch variant for dense field wiring panels.
STA4D-10 S2 YL: Yellow-coded 10-position pressure clamp terminal, used for functional identification of signal groups (e.g., intrinsically safe circuits).
STA4D-10 S2 GN: Green-coded 10-position pressure clamp terminal, typically assigned to protective earth (PE) or functional earth (FE) conductors.
STA4D-10 S2 RD: Red-coded 10-position pressure clamp terminal, used for positive DC supply rail identification.
STA4D-10 S2 BU: Blue-coded 10-position pressure clamp terminal, assigned to negative DC supply or neutral conductors per IEC color convention.
STA4D-10 S2 GY: Grey-coded 10-position pressure clamp terminal, standard signal wiring identification color.
STA4D-6 S2 YL: Yellow-coded 6-position compact terminal, intrinsically safe circuit identification in space-constrained panels.
STA4D-6 S2 GN: Green-coded 6-position compact terminal, protective earth designation in sub-panel assemblies.
STA4D-20 S2 GY: Grey-coded 20-position extended terminal block, high-density standard signal marshalling.
STA4D-10 S3 YL: Yellow-coded S3 pitch 10-position terminal, IS circuit identification in S3-pitch marshalling rows.
STA4D-10 S3 GN: Green-coded S3 pitch 10-position terminal, PE/FE conductor identification in S3 panel configurations.
STA4D-10 S3 GY: Grey-coded S3 pitch 10-position terminal, standard signal wiring in S3-pitch marshalling assemblies.

Sourcing Hard-to-Find & Obsolete STA4D Parts

DriveKNMS maintains a dedicated inventory program for Yokogawa STA4D series terminal blocks, with particular focus on variants that have been discontinued or placed on allocation by Yokogawa's official distribution network. For plants operating legacy CENTUM CS 1000 and CS 3000 systems — where original STA4D wiring infrastructure remains in service — sourcing replacement terminal blocks through standard channels has become increasingly difficult as Yokogawa prioritizes production capacity for current-generation CENTUM VP R6 components.

Quality Control for the STA4D Range

Terminal blocks in the STA4D series present specific quality verification requirements due to their pressure clamp mechanism and rail-mount interface. DriveKNMS applies the following inspection protocol to all STA4D units prior to dispatch:

Mechanical Inspection: Each unit is examined for cage clamp spring integrity, conductor entry port condition, and DIN rail locking tab function. Deformed or fatigued spring elements — a common failure mode in aged or improperly stored units — result in automatic rejection.
Insulation Resistance Test: Units are tested for insulation resistance between adjacent poles and between pole and rail mount, using a 500V DC megohmmeter. Minimum acceptable resistance is 100MΩ per IEC 60947-7-1.
Contact Resistance Verification: Milliohm measurement is performed across the conductor path to verify that clamp-to-busbar contact resistance is within the manufacturer's specified range, confirming conductor retention force is adequate.
Color Code and Suffix Verification: Each unit's insulation color and pitch suffix (S2/S3) are verified against the purchase order specification to prevent cross-variant substitution errors in multi-color marshalling assemblies.
Dimensional Check: Rail pitch, pole spacing, and overall block height are measured to confirm compatibility with Yokogawa-specified panel layouts and adjacent component clearances.
