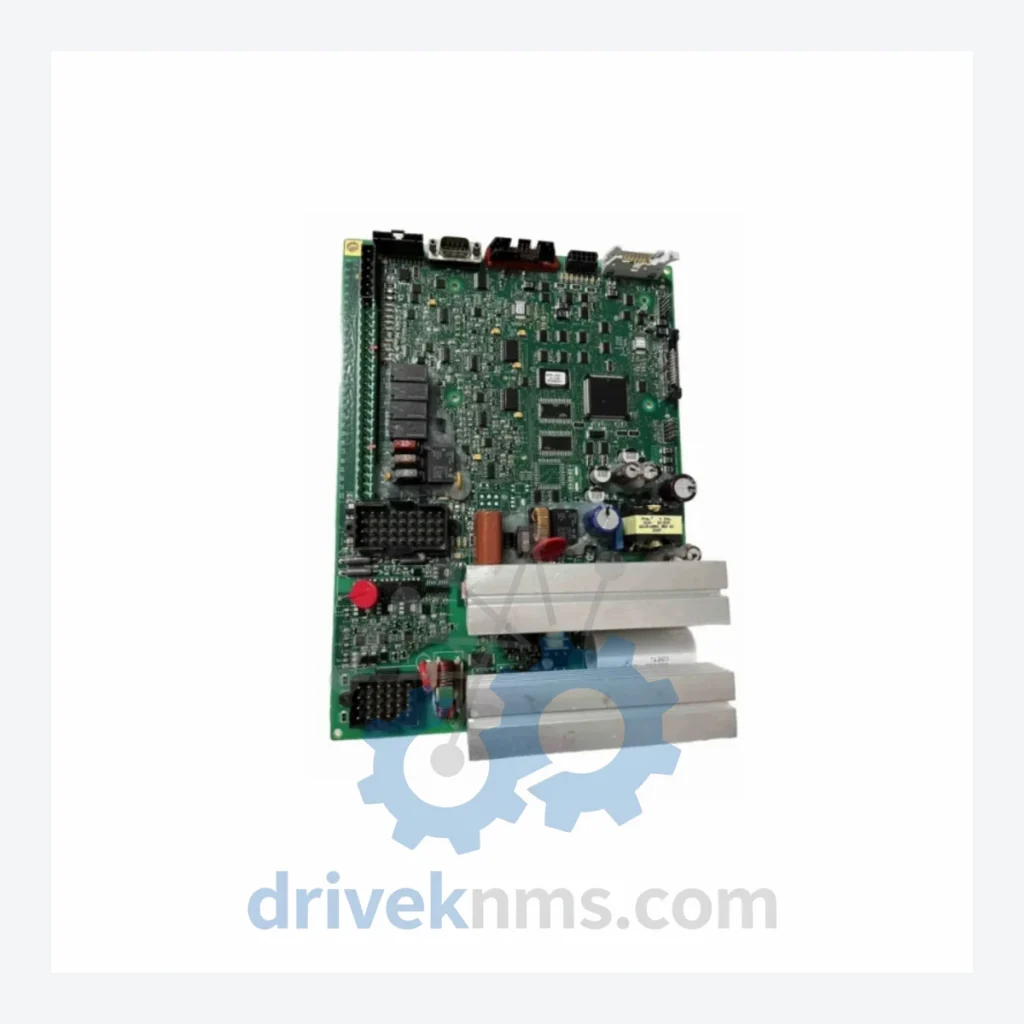

Cummins 300-4969 / AX1005414 PCB Assembly – Obsolete Engine Control Spare Part

Technical Dossier

Product Details And Specifications

Cummins 300-4969 / AX1005414 PCB Assembly – Obsolete Engine Control Spare Part

When a PCB assembly at the core of a Cummins engine control system fails, the consequences extend far beyond a single component. Production lines dependent on Cummins-powered generator sets, industrial engines, or marine propulsion systems face immediate shutdown risk. A forced platform migration — driven solely by the unavailability of one circuit board — routinely carries engineering, procurement, and commissioning costs measured in the hundreds of thousands to millions of dollars. The Cummins 300-4969 / AX1005414 PCB Assembly is a discontinued control board that remains embedded in a significant installed base of legacy Cummins engine management systems. DriveKNMS maintains verified stock of this unit, providing plant managers and maintenance engineers a direct path to system continuity without capital expenditure on new infrastructure.

Technical Specifications

Solving the Discontinued Hardware Crisis

Cummins engine control PCB assemblies such as the 300-4969 / AX1005414 were designed as long-life industrial components, but Cummins' product lifecycle policy does not guarantee indefinite parts availability. Once a board enters end-of-life status, the OEM channel closes. Aftermarket remanufacturers rarely take on low-volume, high-complexity PCB assemblies of this type, leaving operators with three options: source from specialist distributors, cannibalize other units, or accept a full system replacement.

For facilities running Cummins-powered standby generators, pump drives, or marine engines, the third option is rarely viable within a maintenance window. A full generator set replacement involves civil works, load bank testing, and regulatory re-certification — a process that can take 6 to 18 months and consume capital budgets that were not allocated for this cycle. Sourcing a verified 300-4969 / AX1005414 from DriveKNMS eliminates that path entirely. The board slots into the existing control architecture, preserving the surrounding system investment and keeping the asset in productive service.

Plant managers facing pressure from finance teams to justify aging infrastructure should note: the per-unit cost of a replacement PCB assembly is a fraction of one percent of the cost of a forced platform upgrade. Maintaining a strategic spare inventory of critical control boards is a documented asset protection practice in industries where unplanned downtime carries contractual or safety consequences.

Condition & Reliability Assurance

Obsolete PCB assemblies sourced outside the OEM channel carry inherent risk if not properly evaluated before installation. DriveKNMS applies a five-step inspection protocol to all legacy control boards prior to dispatch:

1. Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in PCBs stored beyond five years. Each board is inspected for bulging, electrolyte leakage, and ESR deviation from specification.

2. Firmware Version Verification: Where firmware is embedded, the version is documented and cross-referenced against known compatibility requirements for the target system generation.

3. Pin and Connector Corrosion Inspection: All edge connectors, pin headers, and solder joints are examined under magnification for oxidation, cold joints, and mechanical damage.

4. Functional Continuity Check: Board-level continuity testing is performed to confirm the integrity of primary signal and power traces.

5. Packaging for Long-Term Storage: Units not immediately installed are packaged in anti-static, moisture-barrier materials with desiccant, suitable for extended shelf storage as a strategic spare.

Key Features for System Maintenance

The 300-4969 / AX1005414 is a direct drop-in replacement for the original Cummins-installed board. No firmware reprogramming is required for standard replacement applications. No modifications to the surrounding control cabinet wiring or I/O mapping are necessary. This means a qualified maintenance technician can execute the replacement within a planned maintenance window without involvement from a controls engineer or OEM service representative — eliminating both the scheduling delay and the associated labor cost of a specialist callout.

For facilities that have standardized on Cummins engine platforms across multiple sites, holding one or two units of the 300-4969 / AX1005414 as a site spare is a low-cost insurance policy against a failure event that would otherwise trigger an emergency procurement process with no guaranteed lead time.

FAQ

Q: What warranty applies to an obsolete PCB assembly?
A: DriveKNMS provides a 90-day warranty against defects identified under our inspection protocol. Warranty terms are confirmed in writing at the time of order.

Q: How do I confirm the unit is new or quality-refurbished?
A: Condition is disclosed per unit at the time of quotation. New old stock (NOS) and professionally refurbished units are listed separately. Inspection records are available on request.

Q: Should I purchase more than one unit as a long-term spare?
A: For any system where this board is a single point of failure and no alternative sourcing exists, holding a minimum of one spare unit on-site is standard practice. Given that global stock of discontinued Cummins PCB assemblies is finite and not replenished, procurement delay increases with each passing year. Early acquisition locks in current pricing and availability.

Q: Can DriveKNMS source other obsolete Cummins parts?
A: Yes. DriveKNMS specializes in hard-to-find and discontinued industrial components across multiple OEM brands. Submit your full part list for a consolidated quotation.
