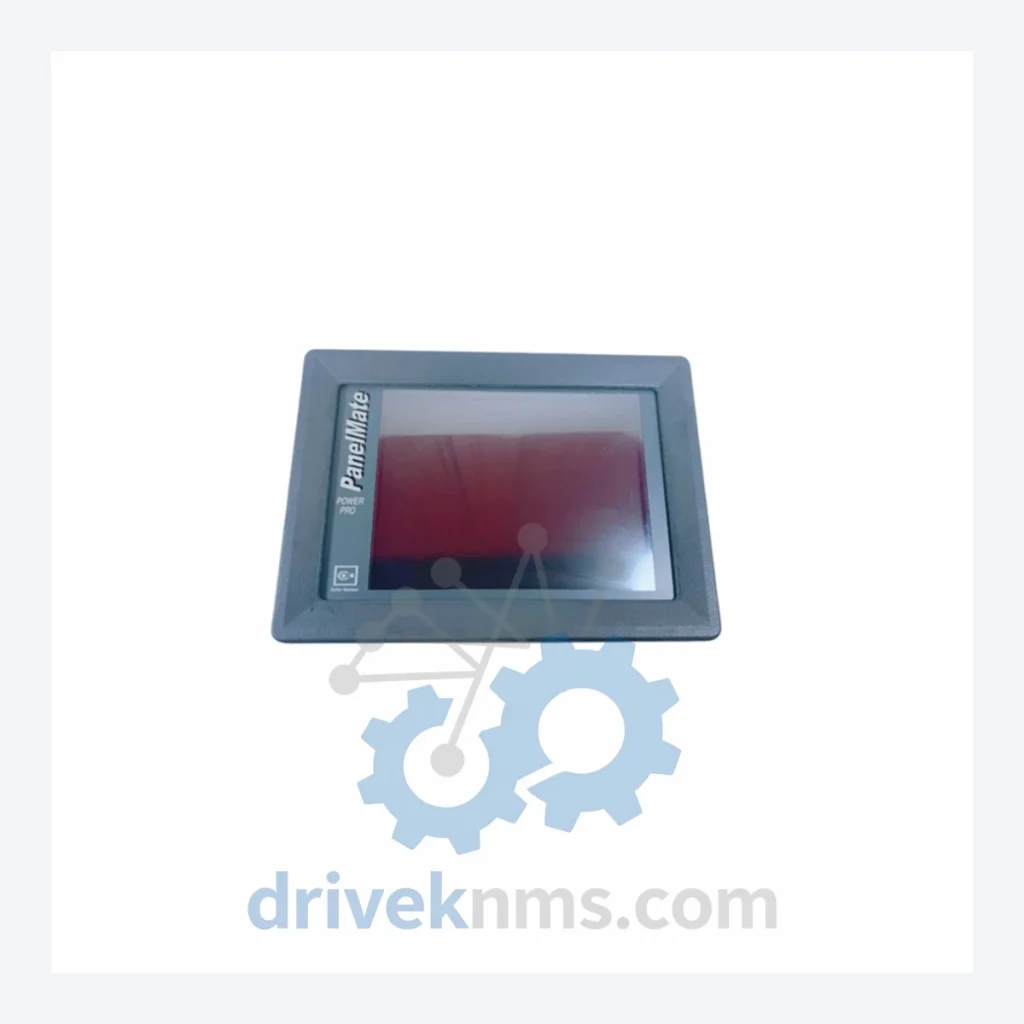

Cutler-Hammer 1785T-PMPP-1700 Touchscreen Operator Display Panel – Obsolete HMI Spare Part

Technical Dossier

Product Details And Specifications

Cutler-Hammer 1785T-PMPP-1700 Touchscreen Operator Display Panel – Obsolete HMI Spare Part

When a touchscreen operator display panel fails on a legacy automation line, the consequences are rarely limited to a single module. For plants still running Cutler-Hammer (Eaton) control architectures built around the 1785T series, the failure of a unit like the 1785T-PMPP-1700 (P/N: 92-01942-01) does not present a simple swap-out problem — it presents a system-level crisis. Sourcing a direct replacement from the original manufacturer is no longer possible. The alternative — a full HMI platform migration — routinely carries engineering, integration, and revalidation costs that run into the hundreds of thousands of dollars, and in process-critical environments, far more. DriveKNMS maintains verified stock of this discontinued panel. For plant managers and maintenance engineers who need to protect an existing capital investment without triggering a forced upgrade cycle, this is a direct path to continuity.

Technical Specifications

Note: Electrical parameters not confirmed from verified documentation are intentionally omitted. Contact us for datasheet support.

Solving the Discontinued Hardware Crisis

The 1785T-PMPP-1700 was designed as the primary human-machine interface for Cutler-Hammer's 1785T control platform — a system deployed extensively in manufacturing, utilities, and process industries during its production era. These installations were engineered for decade-long service cycles, and many remain in active production today.

The discontinuation of this panel does not mean the systems it serves are obsolete. It means the supply chain supporting those systems has contracted. For a plant manager, this distinction matters: the underlying control logic, field wiring, and process integration represent a capital investment that cannot be replicated cheaply. Replacing the HMI platform alone — even before touching PLCs, I/O modules, or field devices — requires engineering hours, software migration, operator retraining, and a revalidation period that takes production offline.

The practical strategy for extending the service life of a 1785T-based system by 5 to 10 years is straightforward: identify the highest-failure-risk components, secure verified spares before they disappear from the secondary market entirely, and establish a documented maintenance protocol. The operator display panel is consistently among the first components to degrade in these systems, driven by touchscreen wear, backlight aging, and connector fatigue. Holding one verified spare unit eliminates the single most likely cause of an unplanned shutdown. For facilities running multiple lines on the same platform, a two-unit reserve is a defensible maintenance investment against the cost of even one day of unplanned downtime.

DriveKNMS specializes in sourcing and verifying discontinued industrial components for exactly this purpose. Our inventory of the 1785T-PMPP-1700 is finite. Once secondary market stock is exhausted, no further supply will exist.

Condition & Reliability Assurance

All discontinued panels sourced by DriveKNMS pass a structured 5-step inspection protocol before being offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy display electronics. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
• Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known compatibility requirements for the 1785T platform. Mismatched or corrupted firmware is flagged prior to shipment.
• Step 3 – Connector and Pin Integrity Check: All interface connectors are inspected under magnification for oxidation, pin corrosion, and mechanical deformation. Corroded contacts are cleaned and treated; units with structural pin damage are rejected.
• Step 4 – Touchscreen Functionality Test: The display and touch input are tested across the full active area. Dead zones, calibration drift, and backlight uniformity issues are documented and disclosed.
• Step 5 – Final Functional Verification: Where test equipment permits, the unit is powered and verified for normal operational response before packaging.

Condition grade (New, Refurbished-Grade A, or Tested-Used) is disclosed in full on each order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The 1785T-PMPP-1700 installs directly into existing panel cutouts and connects to existing wiring harnesses without modification.
• No reprogramming required: The operator display panel does not store application logic. Replacement does not require PLC reprogramming or HMI application re-deployment in standard configurations.
• Avoids engineering reconstruction costs: A verified spare unit eliminates the need to engage systems integrators for platform migration, preserving both budget and production schedule.
• Maintains system validation status: In regulated industries, replacing a like-for-like component carries significantly lower revalidation burden than a platform change.
• Protects downstream capital: Keeping the HMI layer intact preserves the investment in PLCs, field wiring, and process integration that surrounds it.
