Digital Electronics 31B0009-00 HMI Display – Obsolete UF5310-2 Series Spare Part

Technical Dossier

Product Details And Specifications

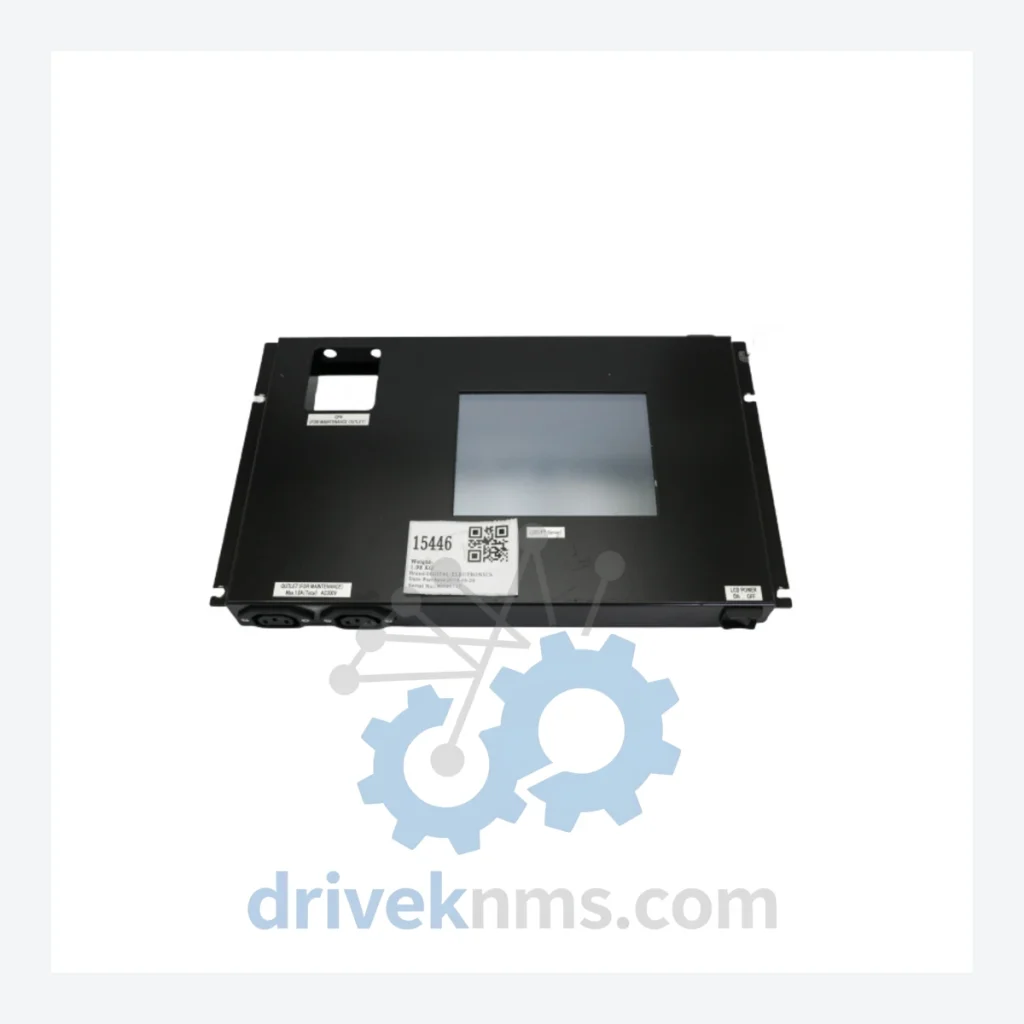

Digital Electronics 31B0009-00 HMI Display – Obsolete UF5310-2 Series Spare Part

When a production line depends on a legacy HMI panel that is no longer manufactured, the risk is not theoretical — it is a ticking clock. The Digital Electronics 31B0009-00 (UF5310-2 series) LCD Touch Screen HMI Display with frame has been discontinued. Sourcing a direct replacement on the open market is increasingly difficult. A single failed unit, left unreplaced, can force a plant manager into an unplanned system-wide migration: new PLC hardware, new SCADA software licenses, re-engineering of operator interfaces, and weeks of production downtime. Conservative estimates place such forced upgrades at USD $500,000 to several million dollars depending on line complexity. DriveKNMS maintains verified stock of this unit. Securing a spare now is not a procurement decision — it is an asset protection decision.

Technical Specifications

Note: Electrical parameters (voltage, resolution, backlight type) vary by firmware revision. Confirmed specifications are provided upon request with unit serial number verification. No parameters are published here that cannot be independently verified — accuracy in obsolete hardware documentation is a safety matter.

Solving the Discontinued Hardware Crisis

The UF5310-2 series was widely deployed in process manufacturing, automotive assembly, and food & beverage plants throughout the 1990s and 2000s as a front-end operator interface for programmable logic controllers. Its resistive touch panel, serial communication ports, and ladder-logic-compatible display protocol made it a standard component in systems built around platforms such as Mitsubishi MELSEC, Omron SYSMAC, and similar mid-generation PLC architectures.

Digital Electronics ceased production of this series, and authorized distribution channels have been exhausted for years. The consequence is that any facility still running a UF5310-2-based operator station faces a binary choice: locate a verified spare, or commit to a full HMI migration project. Migration is not simply a hardware swap. It requires re-mapping every screen, every alarm tag, and every operator workflow — a process that routinely takes 6 to 18 months of engineering time and carries significant risk of introducing new failure modes into a previously stable system.

Extending the service life of an existing, proven system by 5 to 10 years through strategic spare part procurement is, in most cases, the lower-risk and lower-cost path. A single verified 31B0009-00 unit held in reserve eliminates the emergency procurement scramble that follows an unplanned failure — and the premium prices that come with it.

Condition & Reliability Assurance

DriveKNMS applies a 5-step QA protocol to all refurbished obsolete HMI units before they leave our facility:

• Step 1 – Electrolytic Capacitor Inspection: All electrolytic capacitors on the main board and power supply board are tested for capacitance drift and ESR. Units with capacitors showing age-related degradation are recapped with equivalent-spec components before dispatch.
• Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against the customer's existing unit where possible, to confirm compatibility before shipment.
• Step 3 – Pin and Connector Corrosion Audit: All I/O connectors, communication ports, and backplane pins are inspected under magnification for oxidation and contact resistance. Corroded contacts are treated or the connector assembly is replaced.
• Step 4 – Display and Touch Panel Functional Test: The LCD panel is powered and tested for dead pixels, backlight uniformity, and touch registration accuracy across the full active area.
• Step 5 – Burn-in and Final Inspection: Units undergo a minimum 24-hour powered burn-in cycle. Final inspection confirms all test results are within acceptable limits before the unit is packaged and sealed.

Key Features for System Maintenance

• Drop-in Replacement: The 31B0009-00 is a direct physical and electrical replacement for the original installed unit. No panel cutout modification is required.
• No Reprogramming Required: Screen projects and tag databases created for the original UF5310-2 unit are fully compatible. Operator retraining is not necessary.
• Avoids Engineering Reconstruction Costs: Retaining the existing HMI platform eliminates the need to re-engineer operator interfaces, re-validate alarm management systems, or re-certify the control system under applicable safety standards.
• Long-Term Inventory Strategy: For facilities with multiple UF5310-2 stations, procuring two or three units as strategic spares is a documented best practice in legacy system asset management. The cost of holding spare inventory is a fraction of the cost of a single unplanned downtime event.

How Spare Parts Extend Automation Asset Life by 5–10 Years

Plant managers facing pressure to retire aging control systems often underestimate the leverage that a disciplined spare parts strategy provides. The core principle is straightforward: the weakest link in a legacy system determines its service life. If that weakest link is a single HMI display panel — a component with no moving parts and a well-understood failure mode — then replacing that component on a planned basis is a direct extension of the entire system's operational life.

For a system with a replacement cost of USD $2 million, extending service life by even three years at a spare parts cost of USD $5,000–$15,000 represents a return that no capital expenditure project can match. The calculation becomes more compelling when the cost of production disruption during a forced migration is included. Facilities that maintain a documented critical spare parts list — covering HMI panels, power supply modules, and communication interface cards — consistently report longer mean time between forced upgrades and lower total maintenance cost per production hour.

The 31B0009-00 belongs on that critical spare parts list for any facility where the UF5310-2 platform remains in active service.

FAQ

• What warranty applies to obsolete parts? DriveKNMS provides a 90-day functional warranty on all QA-certified refurbished units and a 12-month warranty on new (sealed) units, covering defects in materials and workmanship under normal operating conditions.
• How do I confirm the unit is new or quality-refurbished? Each unit ships with a condition report documenting the QA steps completed, the firmware version recorded, and the test results from the burn-in cycle. New sealed units include original manufacturer packaging where available.
• Can I order multiple units for long-term stock? Yes. For facilities managing multiple UF5310-2 installations, we recommend discussing a reserved inventory arrangement. Contact us to discuss volume pricing and dedicated stock allocation.
• How quickly can you ship? In-stock units typically ship within 2 business days of order confirmation. Express freight options are available for urgent requirements.
• What if my exact sub-reference number differs? The 31B0009-00 was produced across several hardware revisions. Contact us with your full nameplate data and we will confirm compatibility before processing your order.
