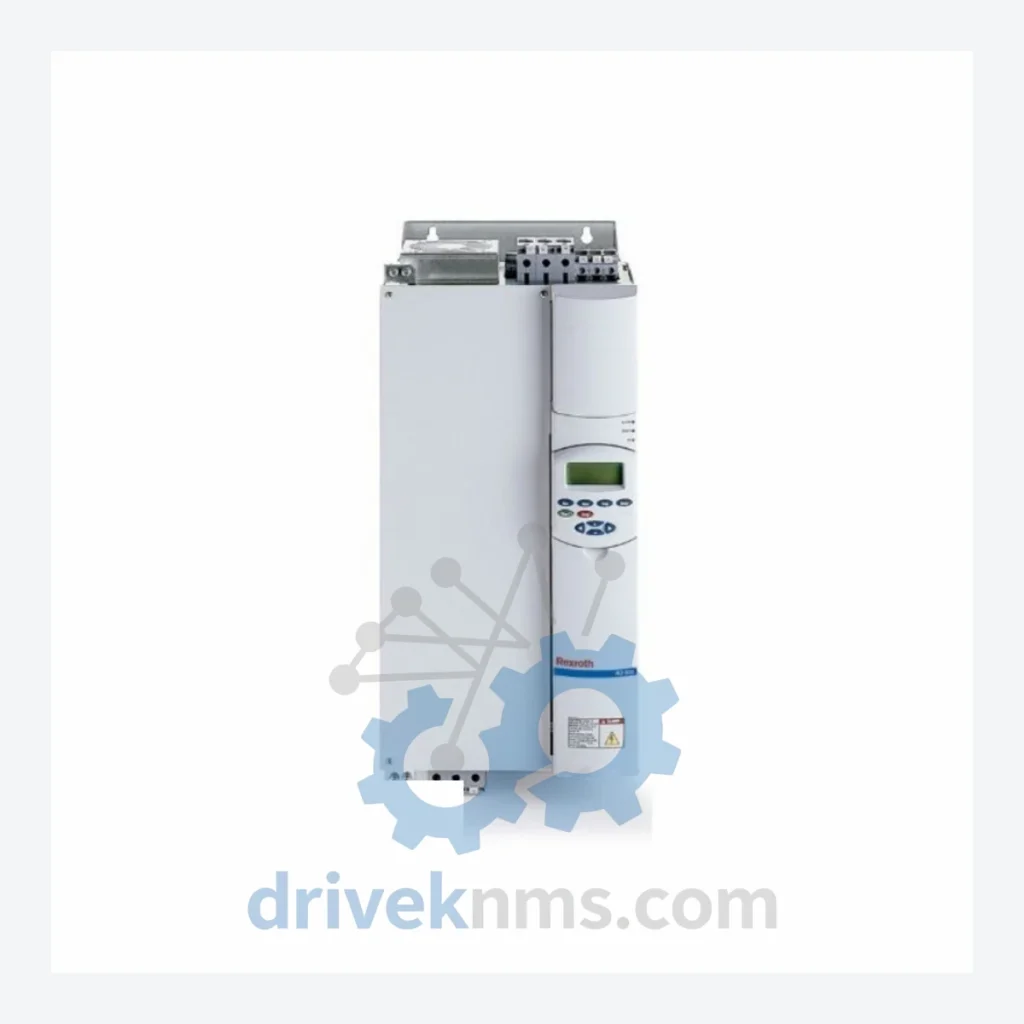

Bosch Rexroth IndraDrive RD52 Series Drives: RD52.1-4B-011-L-NN-NN-NN-FW

Technical Dossier

Product Details And Specifications

Bosch Rexroth IndraDrive RD52 Series: Comprehensive Module Range and Technical Overview

The Bosch Rexroth IndraDrive RD52 series represents a mature, field-proven line of AC servo drive controllers deployed across global heavy industry sectors including petrochemical processing, nuclear power auxiliary systems, offshore drilling platforms, steel rolling mills, and large-scale paper and pulp manufacturing. Characterized by its modular architecture and deterministic real-time control, the RD52 platform has accumulated significant installed base in applications where drive replacement cycles span 10–20 years. The series supports multi-axis synchronization, closed-loop torque/speed/position control, and integrates directly with Bosch Rexroth IndraControl and IndraMotion MLC motion logic controllers via SERCOS III and PROFIBUS-DP fieldbus interfaces. Its ruggedized design meets IEC 61800-3 EMC requirements and is rated for continuous operation in ambient temperatures up to 45°C, making it suitable for demanding industrial environments without additional derating.

The Evolution of RD52 Architecture

The IndraDrive RD52 series is the second-generation successor to the Rexroth ECODRIVE Cs (DKC) and IndraDrive C (HCS) platforms. Early IndraDrive variants (circa 2002–2006) used the IndraDrive Firmware FWA-INDRV*-MPH, which provided basic positioning and speed control. The RD52 generation introduced a unified firmware architecture (FWA-INDRV*-MPB and FWA-INDRV*-MPE) that consolidated motion, safety, and communication stacks into a single firmware image, eliminating the need for separate communication firmware cards used in predecessor HCS02/HCS03 units.

Compatibility considerations are critical for maintenance engineers: RD52 drives use the MSK and MKE motor encoder interface, which is electrically incompatible with older MDD/MKD motor feedback cables without adapter harnesses. The SERCOS III ring topology used in RD52 installations is backward-compatible with SERCOS II at the protocol level but requires firmware version MPB-18 or higher for full feature parity. Engineers migrating from DKC01/DKC02 controllers to RD52 must account for parameter set restructuring — P-0-0001 through P-0-0556 parameter blocks are not directly transferable and require re-commissioning via IndraWorks DS engineering software.

As of 2024, the RD52 series has entered the extended lifecycle (EL) phase under Bosch Rexroth's product lifecycle management policy, meaning new production has ceased but spare parts and repair services remain available through authorized distributors and specialist suppliers such as DriveKNMS through 2030.

RD52 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the Bosch Rexroth IndraDrive RD52 series. Models are classified by functional role:

Servo Drive Controllers (Single-Axis)

• RD52.1-4B-011-L-NN-NN-NN-FW: Single-axis IndraDrive, 11A cont. output, 400V 3-phase, SERCOS III, no safety option
• RD52.1-4B-018-L-NN-NN-NN-FW: Single-axis IndraDrive, 18A cont. output, 400V 3-phase, SERCOS III interface
• RD52.1-4B-028-L-NN-NN-NN-FW: Single-axis IndraDrive, 28A cont. output, 400V 3-phase, SERCOS III interface
• RD52.1-4B-040-L-NN-NN-NN-FW: Single-axis IndraDrive, 40A cont. output, 400V 3-phase, high-dynamic servo axis
• RD52.1-4B-060-L-NN-NN-NN-FW: Single-axis IndraDrive, 60A cont. output, 400V 3-phase, heavy-duty spindle/servo
• RD52.1-4B-075-L-NN-NN-NN-FW: Single-axis IndraDrive, 75A cont. output, 400V 3-phase, high-power axis control

Servo Drive Controllers (with Integrated Safety — STO/SS1)

• RD52.1-4B-011-L-NN-NN-S1-FW: 11A single-axis drive, SIL2/PLd integrated Safe Torque Off (STO) safety function
• RD52.1-4B-018-L-NN-NN-S1-FW: 18A single-axis drive, STO + Safe Stop 1 (SS1) certified safety option
• RD52.1-4B-028-L-NN-NN-S1-FW: 28A single-axis drive, integrated functional safety, IEC 62061 compliant
• RD52.1-4B-040-L-NN-NN-S1-FW: 40A single-axis drive, STO/SS1/SLS safety functions, safety-rated encoder interface

Dual-Axis Controllers

• RD52.2-4B-011-L-NN-NN-NN-FW: Dual-axis IndraDrive, 2×11A, shared DC bus, compact multi-axis configuration
• RD52.2-4B-018-L-NN-NN-NN-FW: Dual-axis IndraDrive, 2×18A, shared DC bus, SERCOS III dual-node

Supply Units / Power Sections

• HMV01.1E-W0030-A-07-NNNN: Regenerative mains supply unit, 30kW, compatible with RD52 DC bus rail
• HMV01.1E-W0075-A-07-NNNN: Regenerative mains supply unit, 75kW, for large RD52 multi-axis cabinets

Communication & Option Modules

• RD52.1-4B-011-L-PN-NN-NN-FW: RD52 variant with PROFINET IO interface replacing SERCOS III
• RD52.1-4B-011-L-PB-NN-NN-FW: RD52 variant with PROFIBUS-DP slave interface for legacy PLC integration

Sourcing Hard-to-Find & Obsolete RD52 Parts

With the RD52 series now in extended lifecycle status, procurement teams face increasing lead times from OEM channels. DriveKNMS maintains a dedicated inventory of RD52 series units sourced from decommissioned production lines, controlled factory surplus, and verified refurbishment programs. All units are stored in ESD-safe, climate-controlled warehousing to prevent capacitor degradation and PCB oxidation — the two primary failure modes for long-stored servo drives.

DriveKNMS provides cross-reference services for engineers seeking functional equivalents: for example, RD52.1-4B-011-L-NN-NN-NN-FW units can in many applications be substituted with HCS02.1E-W0012-A-03-NNNN with appropriate firmware and parameter migration, subject to cabinet and motor compatibility review. Our technical team provides pre-sale compatibility assessments at no charge for qualified procurement inquiries.

For discontinued option cards and encoder interface modules specific to the RD52 platform, DriveKNMS sources from a network of European and Asian industrial surplus specialists, with typical lead times of 5–15 business days for verified stock.

Quality Control for the RD52 Range

The RD52 series presents specific test challenges due to its integrated SERCOS III ASIC, multi-layer power PCB, and dual-port DC bus capacitor bank. DriveKNMS applies the following test protocol to all RD52 units prior to dispatch:

• DC Bus Capacitor ESR Test: Capacitance and equivalent series resistance measured at 100Hz and 1kHz; units with ESR deviation >15% from factory spec are reconditioned or rejected.
• IGBT Gate Drive Integrity: Each phase leg tested under controlled load conditions to verify switching waveform symmetry and dead-time compliance.
• Firmware Version Verification: Firmware version read via IndraWorks DS; units are updated to the latest stable MPB release unless customer specifies a legacy version for compatibility.
• SERCOS III Ring Communication Test: Drive placed in a live SERCOS III ring with a reference controller; phase 0–4 initialization verified, cyclic data exchange confirmed at 250μs cycle time.
• Thermal Imaging Under Load: Unit operated at 80% rated current for 30 minutes; thermal camera inspection confirms no hotspots on power modules, gate drivers, or control board.
• Safety Function Validation (S1 variants): STO input tested per IEC 62061 test procedure; response time measured and logged against SIL2 requirements.

Each unit ships with a test report documenting measured values, firmware version, and inspector ID. A 12-month warranty is provided on all tested units.
