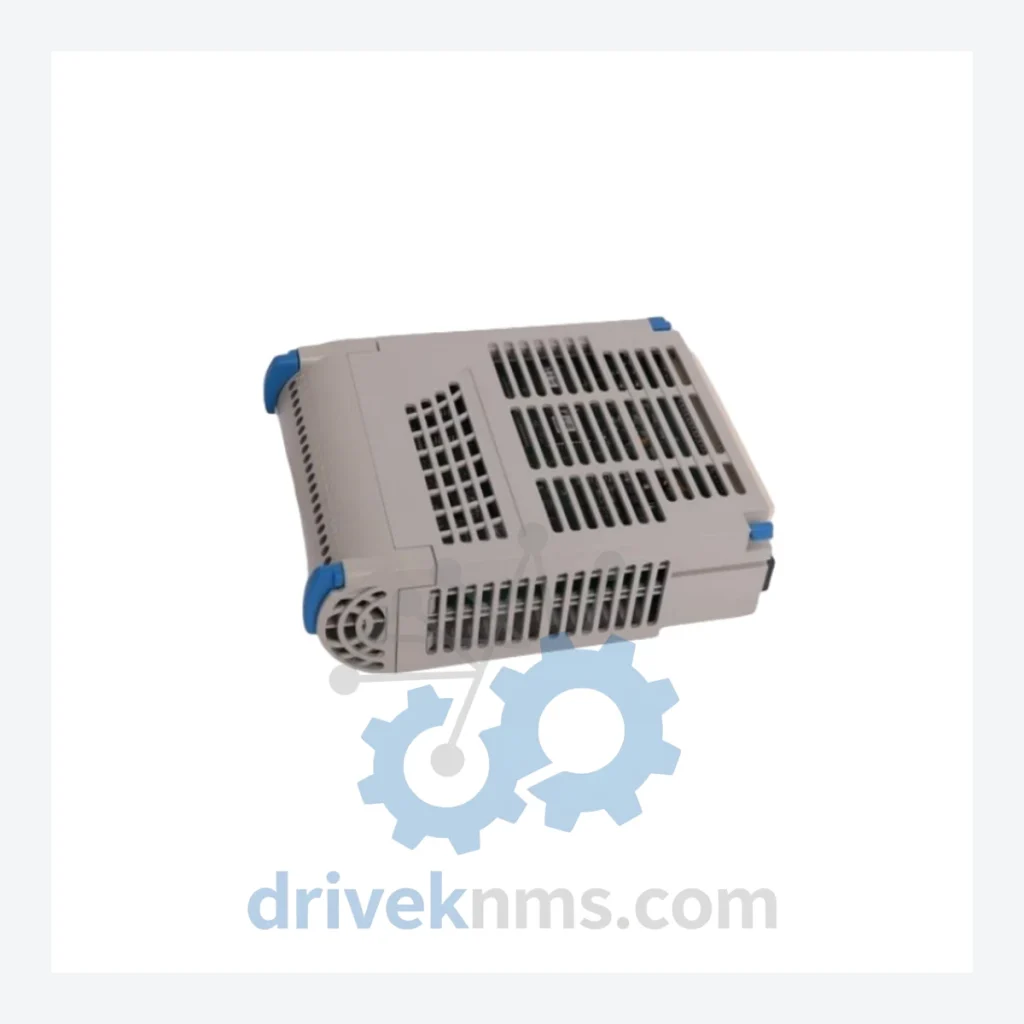

Emerson Ovation 1C31179G01 Modules

Technical Dossier

Product Details And Specifications

Emerson Ovation Series: Comprehensive Module Range and Technical Overview

The Emerson Ovation Distributed Control System (DCS) is one of the most widely deployed process automation platforms in global heavy industry. Installed across fossil fuel power plants, nuclear generating stations, chemical processing facilities, and petroleum refineries, the Ovation platform has accumulated a multi-decade installed base that spans hundreds of critical infrastructure sites worldwide. The 1C31179G01 Input/Output Remote Module is a core field I/O component within this architecture, designed to interface directly with process instrumentation and transmit data across the Ovation controller network. Its role in remote I/O marshalling makes it a high-demand spare part for facilities operating Ovation systems in maintenance and lifecycle extension programs.

The Evolution of Ovation I/O Architecture

The Ovation DCS platform originated from Westinghouse Electric's WDPF (Westinghouse Distributed Processing Family) system, which was introduced in the 1980s. Following Emerson's acquisition of the process control division, the platform was rebranded and progressively modernized under the Ovation name. Early WDPF hardware used proprietary backplane bus structures and dedicated I/O drop controllers. As the Ovation platform matured through the 1990s and 2000s, Emerson introduced a standardized I/O module form factor with a common backplane interface, enabling mixed analog and digital I/O within a single drop. The 1C31xxx module family represents this standardized generation. Compatibility between early WDPF hardware and later Ovation I/O is limited; backplane pinouts and communication protocols differ, requiring careful revision-level verification during any hardware substitution. Modern Ovation systems (Ovation 3.x and later) support Ethernet-based I/O drops, but legacy 1C31xxx modules remain in active service at sites that have not undergone full platform migration. For these facilities, sourcing verified spare modules is operationally critical.

Ovation 1C31xxx Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Emerson Ovation 1C31xxx I/O series. Each module is designed for installation in an Ovation I/O drop enclosure and communicates via the Ovation Data Highway or local drop bus.

1C31179G01: Input/Output Remote Module; primary field I/O interface for Ovation remote drops.
1C31116G01: Analog Input Module; 16-channel, 4–20 mA process signal acquisition.
1C31116G02: Analog Input Module, high-density variant; extended channel configuration.
1C31122G01: Analog Output Module; 8-channel, 4–20 mA control signal output to final elements.
1C31129G01: Digital Input Module; 32-channel 24 VDC discrete contact status acquisition.
1C31132G01: Digital Output Module; 16-channel relay-isolated discrete output for actuator control.
1C31142G01: Pulse Accumulator Input Module; high-speed counter for turbine speed and flow signals.
1C31147G01: RTD Input Module; 8-channel resistance temperature detector signal conditioning.
1C31150G01: Thermocouple Input Module; 16-channel millivolt-level thermocouple signal acquisition.
1C31157G01: Servo Valve Output Module; precision analog output for electrohydraulic control applications.
1C31161G01: Communication Interface Module; drop-level bus arbitration and data highway interface.
1C31166G01: Power Supply Module; 24 VDC regulated power distribution for I/O drop backplane.
1C31169G01: Redundant Power Supply Module; hot-standby power for high-availability I/O drops.
1C31174G01: Sequence of Events (SOE) Input Module; 1 ms time-stamped discrete event capture.
1C31181G01: I/O Termination Module; field wiring marshalling and signal conditioning interface.
1C31194G01: Enhanced Analog Input Module; 16-channel with HART protocol pass-through support.
1C31197G01: Drop Controller Module; local I/O drop processor and Ovation network node controller.

Sourcing Hard-to-Find & Obsolete Ovation Parts

Emerson has progressively transitioned Ovation hardware support toward its current-generation Smart Process Controller (SPC) and Ovation 3.x platform. Many 1C31xxx series modules have been classified as end-of-life or have entered limited-availability status through Emerson's official supply chain. For power generation and refining facilities operating on extended asset lifecycles — commonly 20 to 40 years for nuclear and fossil fuel plants — this creates a critical spare parts gap. DriveKNMS maintains a dedicated inventory of tested and verified 1C31xxx series modules sourced through authorized secondary market channels. All units are subject to functional verification prior to shipment. DriveKNMS provides documentation of test results upon request and supports emergency same-day quotation for facilities managing unplanned outages. Long-term maintenance agreements for Ovation spare parts stocking are available for site reliability engineers managing multi-unit plant inventories.

Quality Control for the Ovation 1C31xxx Range

Ovation I/O modules employ a proprietary backplane bus with specific impedance and timing requirements. Standard bench power-up testing is insufficient to validate module functionality. DriveKNMS applies a structured test protocol for all 1C31xxx series modules: each unit is installed in a live Ovation I/O drop test bench running a validated Ovation controller configuration. Analog input modules are verified against calibrated signal sources across the full 4–20 mA range. Digital I/O modules are exercised through complete channel scan cycles. Communication modules are validated for correct node registration on the Ovation Data Highway. Modules exhibiting backplane communication errors, channel offset drift exceeding ±0.1% of span, or firmware version mismatches are quarantined and not offered for sale. Test records are retained and available for customer review.
