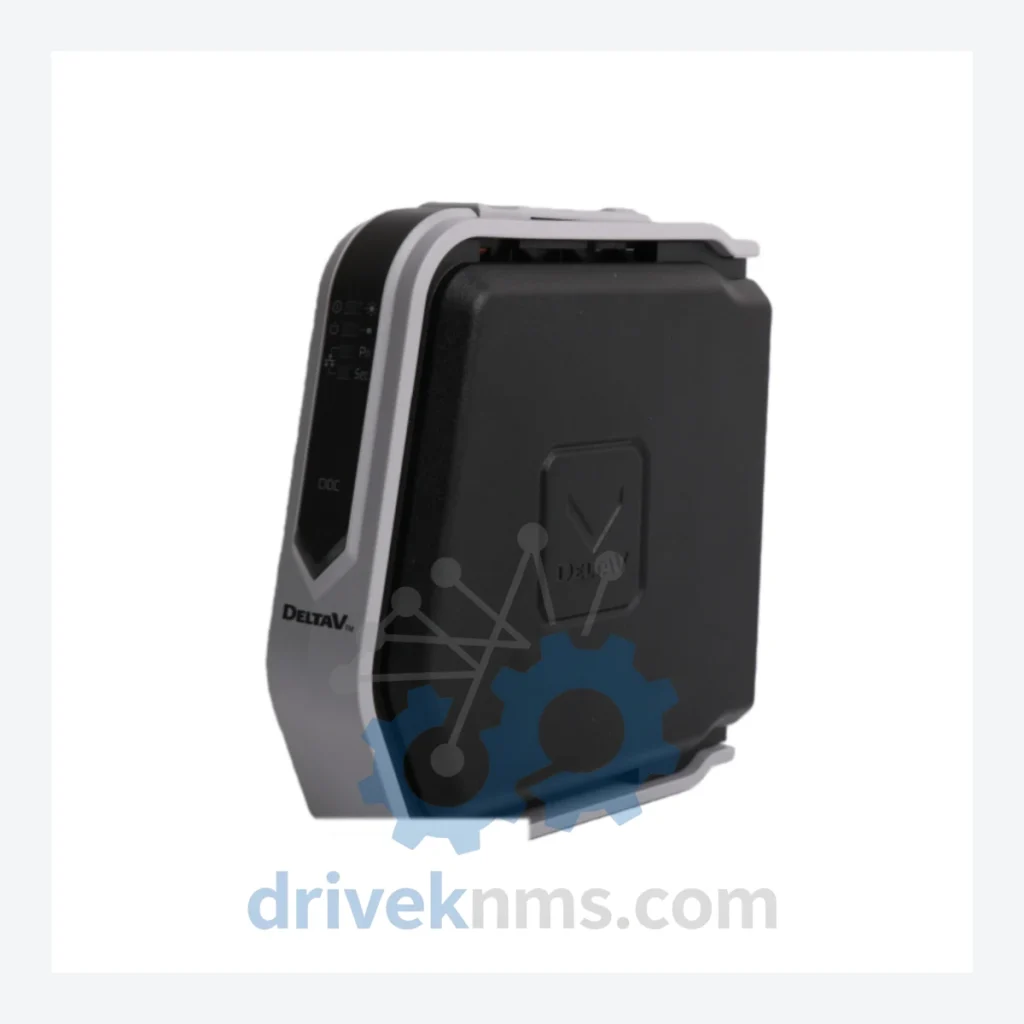

Emerson CHARM I/O Modules - KL2101X1-BA1 SE6501T01

Technical Dossier

Product Details And Specifications

Emerson CHARM Series Technical Notes

The Emerson CHARM (Characterization Module) I/O system is a field-proven, channel-based I/O architecture deployed across the global process automation industry. Installed in refineries, chemical complexes, LNG terminals, nuclear auxiliary systems, and offshore platforms, CHARM I/O is the field-wiring backbone of the Emerson DeltaV S-series distributed control system. Unlike traditional marshalled I/O, each CHARM module characterizes a single field signal at the terminal block level, eliminating the need for signal-type-specific I/O cards and enabling online reconfiguration without rewiring. This architecture is the dominant I/O standard in greenfield DCS projects commissioned after 2012 and remains the preferred upgrade path for legacy DeltaV installations in heavy industry worldwide.

The Evolution of CHARM Architecture

CHARM I/O was introduced by Emerson as part of the DeltaV S-series platform, replacing the traditional card-based I/O approach of the DeltaV M-series. The first-generation CHARM basecard (CIOC — CHARM I/O Controller) established the 96-channel-per-card density model, with each channel slot accepting a hot-swappable CHARM module. Early deployments (2012–2015) used the KL2101X1-BA1 CHARM basecard in conjunction with individual signal CHARMs such as the SE6501T01 (AI HART) and SE6502T01 (AO HART). The second-generation architecture introduced the Electronic Marshalling Cabinet (EMC) and the CHARM Field Enclosure (CFE), extending CHARM I/O to remote and hazardous-area installations. By 2018, Emerson introduced SIS CHARM modules compatible with the DeltaV SIS platform, enabling a unified I/O infrastructure for both basic process control and safety instrumented systems. Compatibility constraints exist between early CIOC firmware revisions and later CHARM types; field engineers must verify CIOC firmware version against CHARM hardware revision before substitution.

CHARM Full Catalog & Functionalities (SKU List)

CHARM Basecards & Controllers

• KL2101X1-BA1: CHARM I/O Controller (CIOC) basecard, 96-channel capacity, DeltaV S-series
• KJ2201X1-BA1: CHARM I/O Controller with redundant power input, 96-channel
• KJ2201X1-HA1: CIOC with HART pass-through, high-density variant

Analog Input (AI) CHARM Modules

• SE6501T01: AI HART CHARM, 4–20 mA with HART, single-channel, intrinsically safe
• SE6502T01: AO HART CHARM, 4–20 mA output with HART, single-channel
• SE6503T01: AI 1–5 VDC CHARM, single-channel voltage input
• SE6504T01: RTD/Resistance CHARM, PT100/PT1000 compatible, 3-wire
• SE6505T01: Thermocouple CHARM, types J/K/T/E/R/S/B/N, CJC integrated
• SE6506T01: AI Discrete CHARM, 24 VDC dry contact or wet contact input

Analog Output (AO) CHARM Modules

• SE6507T01: AO 4–20 mA CHARM, non-HART, single-channel current output
• SE6508T01: AO 1–5 VDC CHARM, single-channel voltage output

Discrete Input / Output CHARM Modules

• SE6509T01: DI 24 VDC CHARM, sourcing/sinking, single-channel
• SE6510T01: DO 24 VDC CHARM, sourcing output, single-channel
• SE6511T01: DO 120/240 VAC CHARM, relay output, single-channel
• SE6512T01: DI 120 VAC CHARM, single-channel AC discrete input

SIS & Safety CHARM Modules

• SE6521T01: SIS AI HART CHARM, IEC 61511 compliant, SIL 2 rated
• SE6522T01: SIS DI 24 VDC CHARM, safety-rated discrete input
• SE6523T01: SIS DO 24 VDC CHARM, safety-rated discrete output

Power & Auxiliary

• KJ2201X1-PA1: CHARM Power Supply module, 24 VDC, DIN-rail mount
• KJ2201X1-CA1: CHARM Cabinet Interface module, EMC integration
