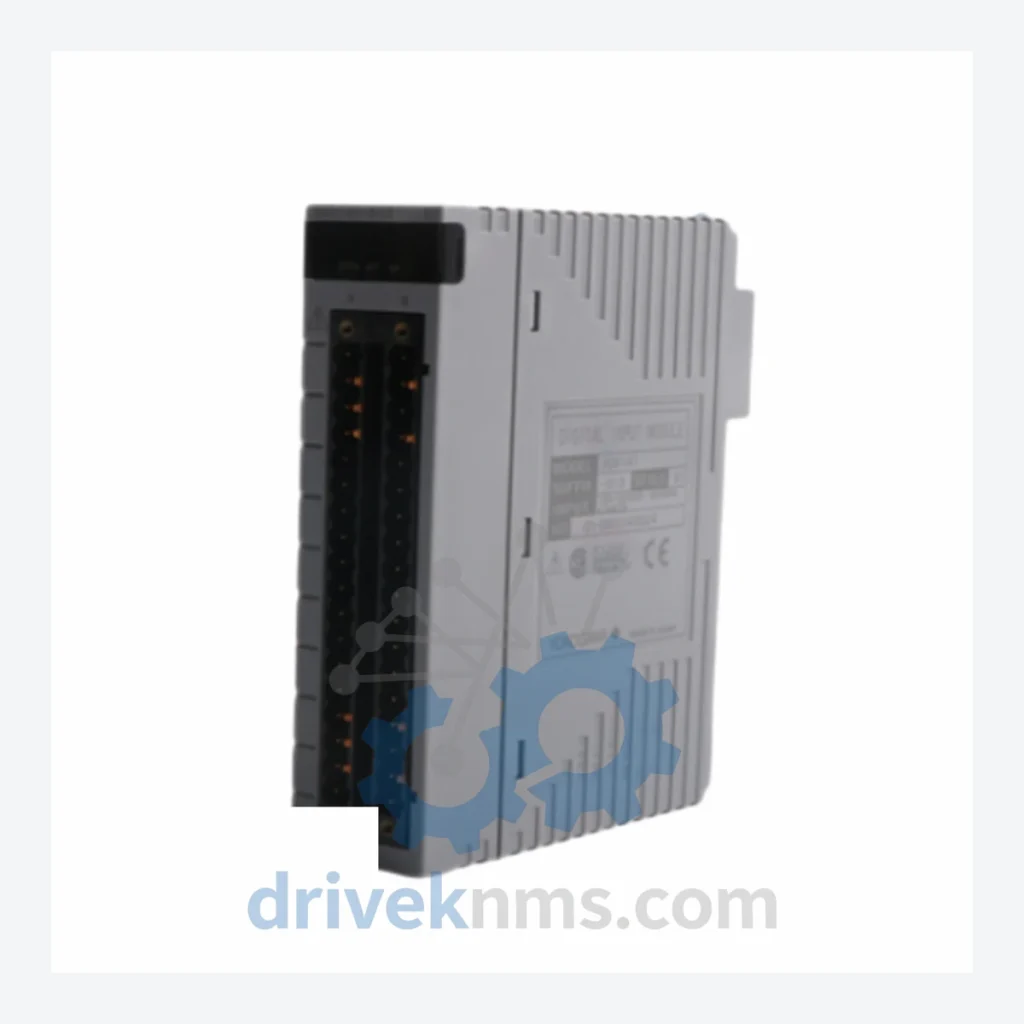

Emerson KC3011X1-BA1 12P6749X062 Input Module

Technical Dossier

Product Details And Specifications

Emerson KC3011X1 Series: Comprehensive Module Range and Technical Overview

The Emerson KC3011X1 series represents a line of analog input modules deployed within the Fisher-Rosemount RS3 Distributed Control System (DCS) platform. These modules have accumulated significant installed base across global heavy industry sectors including petroleum refining, chemical processing, nuclear power generation, and LNG facilities. The RS3 DCS, originally developed by Rosemount Inc. and later integrated into Emerson Process Management's portfolio, remains operational in thousands of plants worldwide due to its deterministic control architecture and long mean-time-between-failure (MTBF) ratings. The KC3011X1-BA1 12P6749X062 is a specific hardware revision of the KC3011X1 analog input module, designed for direct integration into RS3 controller nodes via the RS3 backplane bus.

The Evolution of KC3011X1 Architecture

The KC3011X1 series traces its lineage to the early RS3 platform architecture introduced in the 1980s. The RS3 system was engineered around a peer-to-peer token-passing control network (PeerWay) operating at 2 Mbps, with modular I/O cards interfacing through dedicated backplane connectors. Early revisions of the KC3011 input module used through-hole PCB construction with discrete analog front-end components. Subsequent hardware revisions (denoted by the suffix codes such as -BA1, -BB1, -BC1) introduced surface-mount technology, improved EMI shielding, and revised EEPROM configurations for calibration data storage.

The 12P6749X062 assembly number identifies a specific board-level revision within the -BA1 hardware family, indicating a defined BOM (Bill of Materials) snapshot used for manufacturing traceability. Compatibility between hardware revisions is generally maintained at the backplane interface level, but firmware and calibration files may differ. Plants operating mixed-revision environments must verify compatibility through Emerson's RS3 hardware compatibility matrix prior to substitution. As the RS3 platform has entered end-of-life status with Emerson, no new firmware development is planned; however, the installed base continues to require spare parts support through third-party MRO suppliers.

KC3011X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson RS3 KC3011X1 input module family and associated RS3 I/O ecosystem. Each entry reflects a distinct hardware configuration or assembly revision:

KC3011X1-BA1 12P6749X062: Analog input module, RS3 backplane, -BA1 hardware revision, assembly 12P6749X062.
KC3011X1-BB1: Analog input module, revised PCB layout, improved thermal tolerance over -BA1.
KC3011X1-BC1: Analog input module, surface-mount BOM, enhanced EMI filtering.
KC3011X1-BD1: Analog input module, updated EEPROM, compatible with RS3 v10+ firmware.
KC3011X2-BA1: Dual-channel analog input variant, same backplane footprint as KC3011X1.
KC3011X2-BB1: Dual-channel analog input, revised hardware, extended temperature range.
KC3012X1-BA1: Analog output module, RS3 platform, paired with KC3011X1 in control loops.
KC3012X1-BB1: Analog output module, updated revision, 4–20 mA loop-powered output.
KC3013X1-BA1: Digital input module, 24 VDC, RS3 backplane compatible.
KC3013X1-BB1: Digital input module, revised opto-isolation circuit, improved noise immunity.
KC3014X1-BA1: Digital output module, relay-type, RS3 I/O node.
KC3014X1-BB1: Digital output module, solid-state output option, updated revision.
KC3015X1-BA1: Thermocouple input module, RS3 platform, multi-type TC support.
KC3015X1-BB1: Thermocouple input module, cold junction compensation revision.
KC3016X1-BA1: RTD input module, RS3 backplane, 2/3/4-wire PT100 support.
KC3016X1-BB1: RTD input module, updated linearization firmware, extended range.
KC3017X1-BA1: Pulse input module, RS3 platform, frequency and totalizer functions.
KC3018X1-BA1: HART multiplexer interface module, RS3 integration, 16-channel.
KC3019X1-BA1: RS3 power supply module, 24 VDC regulated output, backplane bus.
KC3020X1-BA1: RS3 controller communication module, PeerWay interface.

Sourcing Hard-to-Find & Obsolete KC3011X1 Parts

Emerson formally discontinued active manufacturing support for the RS3 platform. Replacement parts for the KC3011X1 series are no longer available through standard Emerson distribution channels. DriveKNMS maintains a dedicated inventory of RS3 spare modules sourced through controlled decommissioning projects, surplus asset recovery, and long-term MRO partnerships with petrochemical and power generation facilities globally.

For the KC3011X1-BA1 12P6749X062 specifically, DriveKNMS provides: verified pull-out units with full functional test records, board-level repair services for common failure modes (analog front-end drift, EEPROM corruption, backplane connector wear), and cross-reference support to identify compatible hardware revision substitutes where direct replacements are unavailable. All units are shipped with documented test results and a defined warranty period. Customers operating RS3 systems under long-term service agreements (LTSA) are encouraged to establish a standing spare parts agreement to mitigate lead-time risk on critical I/O modules.

Quality Control for the KC3011X1 Range

The KC3011X1 module interfaces with the RS3 backplane via a proprietary edge connector carrying both power rails and the PeerWay communication bus. Quality verification for this module family requires specialized test procedures beyond standard bench power-up checks. DriveKNMS applies the following test protocol to all KC3011X1 units prior to shipment:

Backplane bus communication verification using an RS3 node emulator to confirm PeerWay token participation. Analog channel accuracy calibration across the full 4–20 mA input range at 0%, 25%, 50%, 75%, and 100% of span, with results logged against factory tolerance specifications. EEPROM integrity check to confirm calibration constants and hardware revision data are intact and uncorrupted. Visual and dimensional inspection of the backplane edge connector for pin wear, oxidation, and mechanical deformation. Thermal cycling test (where applicable) to identify latent solder joint failures common in aged PCB assemblies. High-potential (hipot) isolation test between signal commons and chassis ground to verify dielectric integrity of input isolation barriers.
