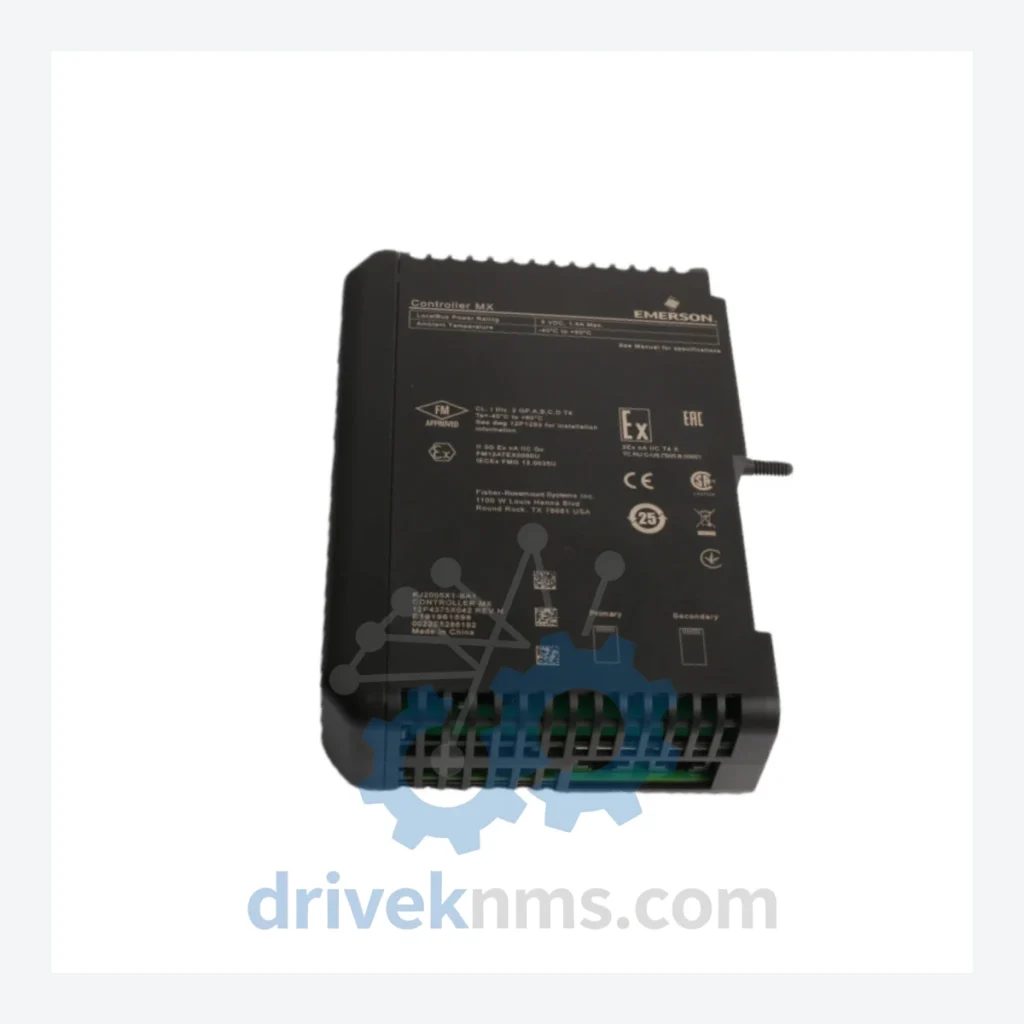

Emerson KJ2005X1-BA1 DeltaV Controller – Obsolete DeltaV Series Spare Part

Technical Dossier

Product Details And Specifications

Emerson KJ2005X1-BA1 DeltaV Controller – Obsolete DeltaV Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as power consumption, bus speed, and firmware revision vary by production batch. DriveKNMS will confirm exact hardware revision upon order inquiry. No parameters are fabricated.

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Condition & Reliability Assurance

• Stage 1 – Visual and Physical Inspection: Board-level examination for mechanical damage, corrosion on edge connectors, and pin integrity. Units with compromised backplane connectors are rejected at this stage.
• Stage 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are a primary failure mode in legacy DCS hardware. Capacitors showing ESR deviation or physical swelling are replaced with specification-matched components.
• Stage 3 – Firmware Version Verification: The installed firmware revision is documented and disclosed. Compatibility with the target DeltaV system version is confirmed prior to shipment where system information is provided by the buyer.
• Stage 4 – Functional Power-On Test: The module is powered and subjected to a functional test sequence to confirm basic controller operation and communication readiness.
• Stage 5 – Anti-Static Packaging and Documentation: Units are packaged in ESD-safe materials with a condition report and test record included.

Key Features for System Maintenance

• Drop-in replacement: The KJ2005X1-BA1 installs directly into the existing DeltaV controller chassis with no hardware modification required.
• No reprogramming required: DeltaV controller configuration resides in the system database, not on the module itself. A replacement module loads the existing configuration automatically upon commissioning — eliminating the need for costly re-engineering.
• Avoids system-wide migration costs: Maintaining a functional DeltaV system with verified spare modules costs a fraction of a platform migration. A single KJ2005X1-BA1 spare can protect years of uninterrupted production.
• Extends asset life by 5–10 years: Plants operating DeltaV systems installed in the 2000s and early 2010s can realistically extend operational life by a decade through disciplined spare parts management. The controller module is the highest-risk single point of failure in this architecture. Holding one verified spare eliminates that risk entirely.
• Supports phased migration strategy: For facilities planning an eventual DCS upgrade, maintaining operational continuity with spare hardware allows the migration to proceed on a planned schedule rather than under emergency conditions — reducing engineering costs and negotiating leverage loss.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: Should I purchase more than one unit?
A: For any facility running a DeltaV system where the KJ2005X1-BA1 is a critical node, holding a minimum of one cold spare is standard risk management practice. Given the declining availability of this module on the secondary market, procurement teams responsible for multi-year maintenance budgets should consider securing two to three units while RFQ-reviewed sourcing status exists. Availability cannot be guaranteed beyond current inventory.

Q: Can DriveKNMS confirm compatibility with my specific DeltaV system version?
A: Yes. Provide your DeltaV system version and controller chassis type when inquiring, and our technical team will confirm compatibility before the order is placed.
