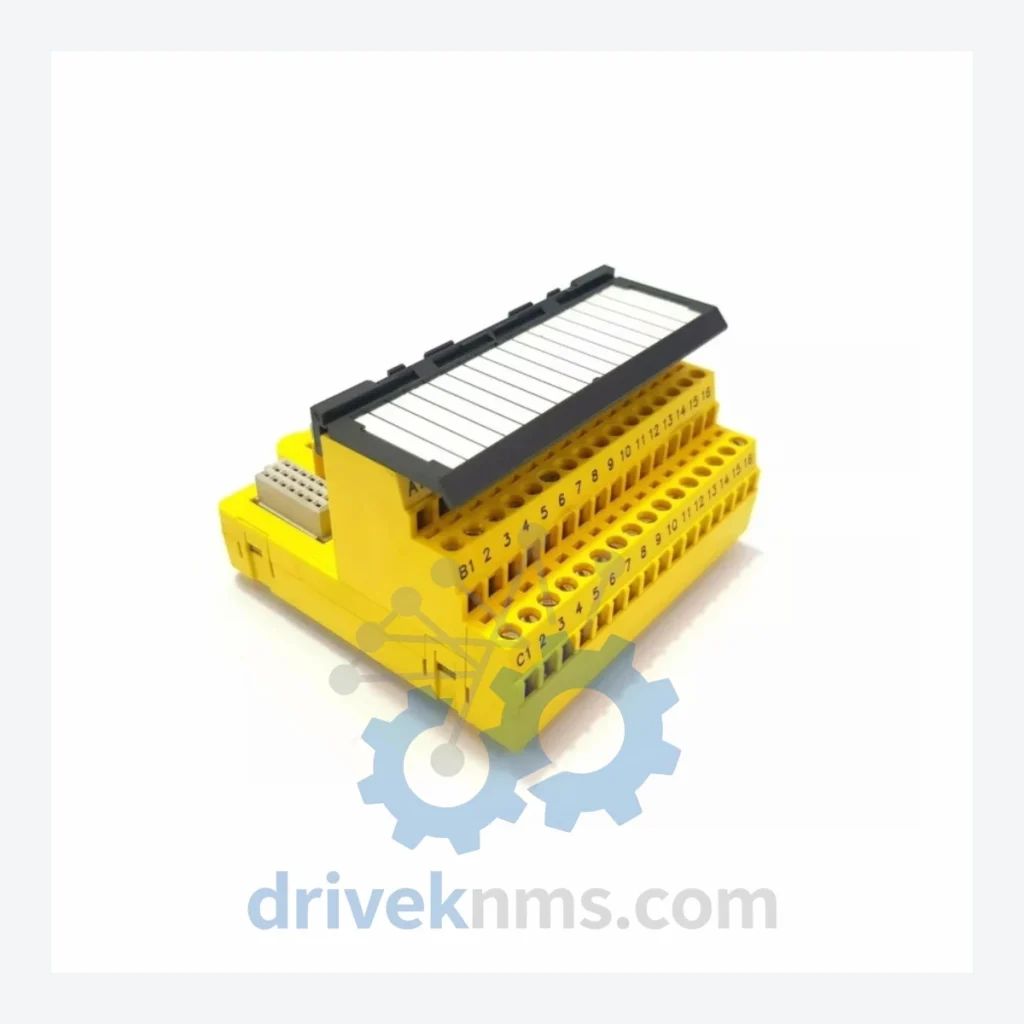

Emerson KJ2201X1-HA1 Terminal Block – Obsolete DeltaV S-Series Spare Part

Technical Dossier

Product Details And Specifications

Emerson KJ2201X1-HA1 Terminal Block – Obsolete DeltaV S-Series Spare Part

When a terminal block fails inside a DeltaV S-series I/O subsystem, the consequences extend far beyond a single channel going offline. The KJ2201X1-HA1 sits at the physical interface between field wiring and the DeltaV controller bus. Its failure can take down an entire I/O card slot, disrupting process loops that took years to tune and commission. Replacing the surrounding control architecture — migrating to a current-generation DeltaV SIS or DeltaV Distributed Control System — carries engineering, commissioning, and production-loss costs that routinely exceed USD 500,000 per production unit. DriveKNMS holds RFQ-reviewed sourcing status of this discontinued component. Securing one unit today is not a purchasing decision; it is an asset protection decision.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage rating, current capacity, and terminal pitch are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The Emerson DeltaV S-series platform was deployed extensively in oil & gas, chemical processing, and power generation facilities throughout the late 1990s and 2000s. Many of these installations remain in active production service. Emerson's transition to the DeltaV M-series and subsequent generations left a significant installed base without a direct upgrade path that does not require full I/O rewiring and controller replacement.

The KJ2201X1-HA1 terminal block is a passive but structurally critical component. It provides the mechanical and electrical termination point for field instrument wiring connecting to DeltaV S-series I/O cards. Without a functional terminal block in the correct slot, the associated I/O card cannot communicate with field devices — rendering the entire loop inoperable regardless of the controller's health.

How to extend your DeltaV S-series asset life by 5 to 10 years — a practical framework for plant management:

The single most effective strategy is a structured spare parts audit conducted against your installed I/O card population. Identify every KJ-series terminal block variant in service, cross-reference against your current spare holdings, and calculate a minimum two-unit buffer per critical loop. This buffer absorbs one failure event while allowing time to source a replacement without production pressure.

Fourth, consider purchasing a small quantity of units for long-term storage. Terminal blocks stored in controlled environments — low humidity, stable temperature, away from direct light — retain full functionality for decades. The cost of storing three units is negligible against the cost of a single unplanned shutdown.

Fifth, document your current firmware and configuration baseline for the associated I/O cards. When a terminal block is replaced, having a verified configuration record eliminates the risk of parameter drift during recommissioning.

Condition & Reliability Assurance

Every KJ2201X1-HA1 unit shipped by DriveKNMS passes a five-stage quality verification process before dispatch.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Stage 2 – Electrolytic Capacitor Assessment: Where applicable on associated board-level components, capacitors are inspected for bulging, electrolyte leakage, and ESR deviation — the primary failure mode in aged electronic assemblies.

Stage 4 – Firmware and Compatibility Verification: For units with embedded identification logic, firmware version is confirmed against the compatible DeltaV S-series I/O card revision matrix.

Stage 5 – Final Functional Test: Units are tested for electrical continuity across all terminals and mechanical retention force on the card-edge connector before packaging.

Units that do not pass all five stages are not offered for sale.

Key Features for System Maintenance

The KJ2201X1-HA1 is a direct mechanical and electrical replacement for the original factory-installed unit. Installation requires no software changes, no controller reconfiguration, and no I/O card replacement. Field wiring reconnects to the same terminal positions using the same wire labels. This drop-in replacement characteristic is the defining advantage of sourcing the correct obsolete part versus pursuing a system migration.

Plants operating under tight capital budgets can maintain full process control system integrity without committing to a platform migration project. The KJ2201X1-HA1 preserves the existing investment in DeltaV S-series infrastructure, trained operations staff, and established maintenance procedures.

Should I purchase more than one unit?
For any DeltaV S-series installation with more than one KJ2201X1-HA1 in service, purchasing a minimum of two spare units is the standard recommendation. The secondary market supply of this part is finite and declining. Units purchased today are available; units needed during an emergency shutdown may not be.
