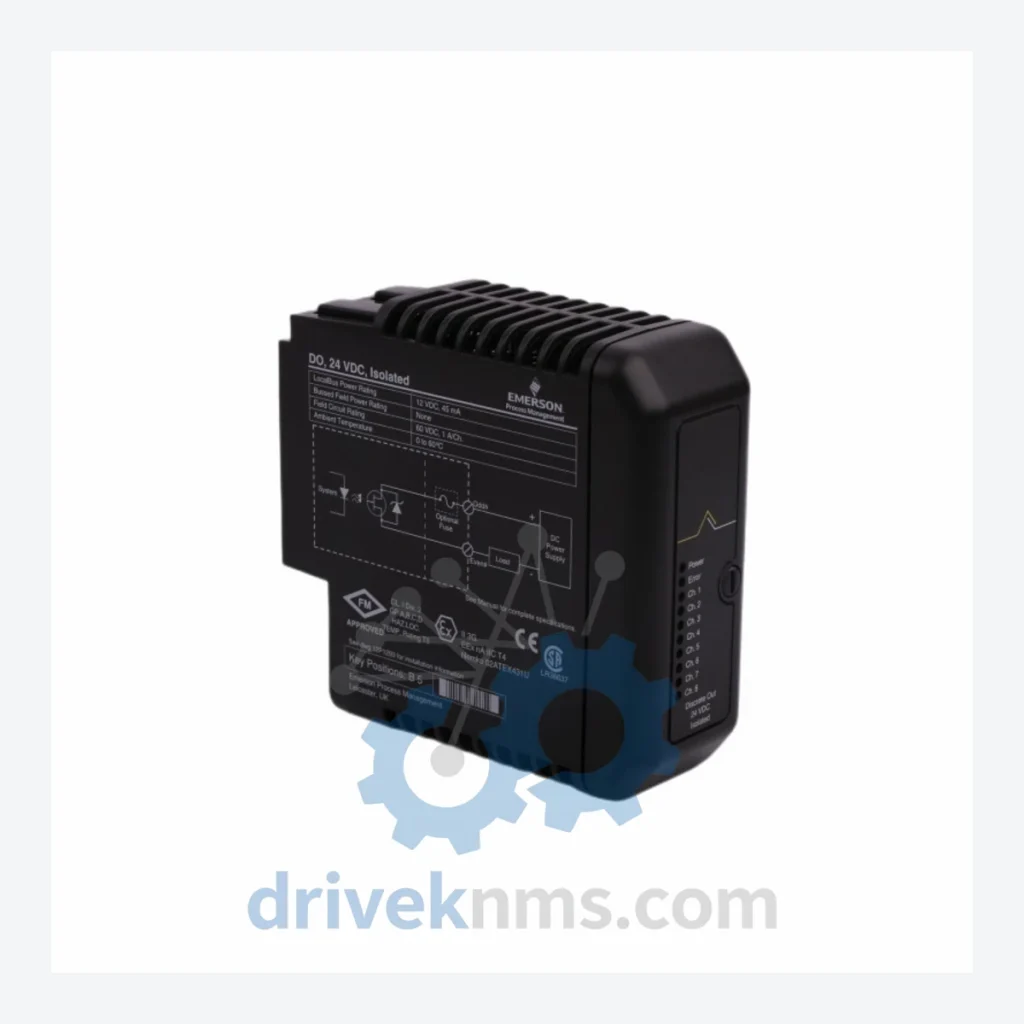

Emerson KJ3001X1-BG1 12P0557X162 Digital Output Module – Obsolete DeltaV Spare Part

Technical Dossier

Product Details And Specifications

Emerson KJ3001X1-BG1 12P0557X162 Digital Output Module – Obsolete DeltaV Spare Part

DriveKNMS reviews sourcing options for discontinued components through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters beyond those listed above are not independently verified by DriveKNMS. Refer to Emerson document D800003X012 or the original DeltaV Books Online for full specification data. We do not publish unverified parameters.

Solving the Discontinued Hardware Crisis

The Emerson DeltaV M-Series platform was deployed extensively across refining, petrochemical, pharmaceutical, and power generation facilities throughout the 1990s and 2000s. Many of these installations remain in active production service. Emerson's transition to the DeltaV S-series and subsequent Electronic Marshalling architecture rendered the M-Series I/O card family — including the KJ3001X1-BG1 — commercially obsolete. Emerson no longer manufactures or provides factory repair services for this card family.

For plant managers operating legacy DeltaV M-Series nodes, this creates a concrete operational risk: the installed spare holding period has ended, and the secondary market is the only remaining source. Facilities that did not build adequate strategic spares inventory during the transition window now face a shrinking pool of available units, with prices that reflect genuine scarcity rather than speculative markup.

The KJ3001X1-BG1 is not interchangeable with current-generation DeltaV S-series DO cards without controller reconfiguration and, in many cases, marshalling cabinet modifications. This means a like-for-like replacement from the secondary market is the lowest-cost, lowest-risk path to restoring a failed channel — provided the replacement unit has been properly evaluated before installation.

How to extend your DeltaV M-Series asset life by 5–10 years without a full migration:

The decision to retire a DeltaV M-Series system is rarely driven by the controller itself — it is driven by the inability to source I/O cards. A structured spare parts strategy can defer that decision by a decade at a fraction of the migration cost. The following approach is used by maintenance engineering teams at facilities that have successfully extended M-Series service life past the 20-year mark:

2. Establish a minimum two-unit buffer per critical card type. One unit covers an active failure. The second covers the time required to source a replacement from the secondary market, which for obsolete DeltaV I/O cards can range from weeks to months depending on market availability at the time of failure.

3. Prioritize isolated output cards. Isolated DO cards such as the KJ3001X1-BG1 are used in applications where field device ground loops or voltage differentials are a concern — typically in hazardous area installations or where field devices are powered from separate sources. A failure in an isolated output channel cannot be temporarily bridged using a non-isolated card without engineering review. This makes the KJ3001X1-BG1 a non-substitutable spare in many plant configurations.

Condition & Reliability Assurance

Step 1 – Electrolytic capacitor inspection. Aged electrolytic capacitors are the primary failure mechanism in power supply and signal conditioning circuits on cards of this generation. Each unit is inspected for visible bulging, electrolyte leakage, and ESR deviation from specification.

Step 2 – Firmware version verification. The firmware revision on the card is confirmed and documented. Cards with firmware versions known to have field issues are flagged and handled separately.

Step 4 – Functional power-on test. Where test fixtures are available for the card type, units are powered and output channel continuity is verified.

Step 5 – Packaging and ESD protection. Units are packaged in anti-static bags with desiccant and shipped in rigid protective packaging to prevent transit damage.

Condition grade (New, Refurbished-Grade A, or Tested-Used) is disclosed on the invoice and confirmed prior to shipment. We do not ship units without a disclosed condition grade.

Key Features for System Maintenance

The KJ3001X1-BG1 is a direct, drop-in replacement for a failed unit in any DeltaV M-Series I/O subsystem where the card type and slot assignment match. No controller reprogramming is required. No changes to the DeltaV database are necessary. The replacement card reads its configuration from the controller on power-up, consistent with standard DeltaV M-Series behavior.

Facilities that have invested in DeltaV M-Series infrastructure over the past two decades have a legitimate interest in protecting that investment. A verified spare card is the most direct mechanism available to do so.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for label authenticity, PCB markings, and component consistency with known-good reference units. We do not purchase from unverified brokers. Provenance documentation is available on request for units where chain-of-custody records exist.

Can this card be used in a DeltaV S-series system?
No. The KJ3001X1-BG1 is mechanically and electrically specific to the DeltaV M-Series I/O subsystem. It is not compatible with DeltaV S-series Electronic Marshalling or CHARM I/O architectures.
