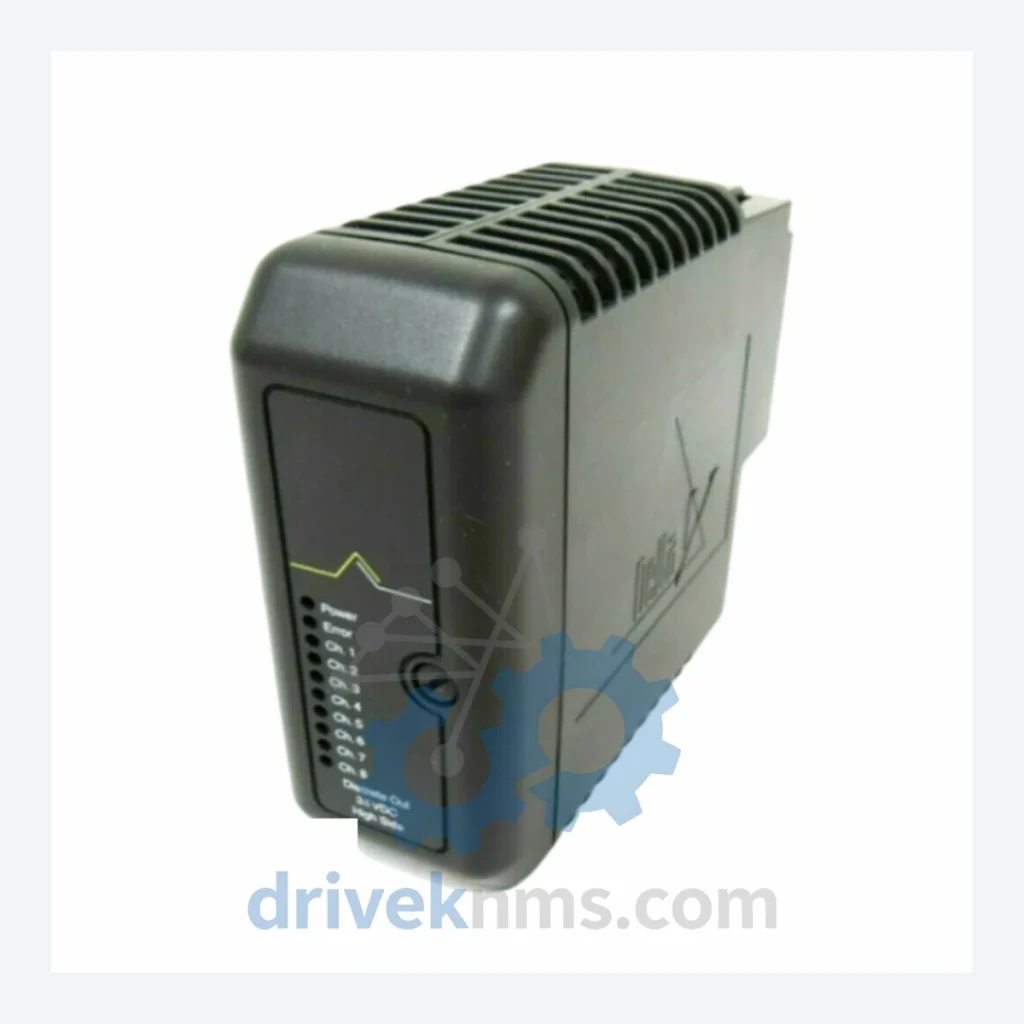

Emerson KJ3001X1-BJ1 12P0555X152 DeltaV M-Series I/O Modules

Technical Dossier

Product Details And Specifications

Emerson KJ3001X1 Series Technical Notes

The Emerson KJ3001X1 series represents the core I/O subsystem architecture of the DeltaV distributed control system (DCS), deployed across critical process industries including petroleum refining, chemical manufacturing, nuclear power generation, and LNG terminals. As a field-proven platform with installations spanning more than two decades, the KJ3001X1 family provides the physical interface layer between DeltaV controllers and field instrumentation. Its modular backplane design supports hot-swap replacement, enabling maintenance without process interruption — a mandatory requirement in continuous-operation facilities. The series is classified under Emerson's M-Series I/O architecture, which defines the electrical, mechanical, and communication standards for all modules within the DeltaV ecosystem. Global installed base estimates place KJ3001X1-family modules in tens of thousands of control loops across refineries, offshore platforms, and pharmaceutical batch systems.

The Evolution of KJ3001X1 Architecture

The KJ3001X1 architecture was introduced as part of the DeltaV Version 6.x platform, replacing earlier PROVOX and RS3 legacy I/O systems. The initial release standardized the 8-channel I/O card form factor and the CHARM (Characterization Module) interface concept was later layered on top in DeltaV S-series. The KJ3001X1 backplane communicates with the DeltaV controller via a proprietary high-speed serial bus, with each I/O card occupying a dedicated slot. Firmware revisions across DeltaV versions 7.x through 14.x introduced incremental improvements to diagnostic coverage, HART pass-through bandwidth, and SIL 2 certification for select analog input variants. Compatibility constraints exist between early-revision KJ3001X1 hardware and DeltaV v13+ software — specifically, modules manufactured before 2008 may require firmware upgrades to maintain full diagnostic visibility. As the DeltaV platform has transitioned toward the CHARM I/O architecture (CIOC/WIOC), the KJ3001X1 series has entered a mature/end-of-active-development phase. Emerson continues to provide spare parts and firmware support, but new feature development is concentrated on the S-series and Electronic Marshalling platforms. For facilities committed to long-term KJ3001X1 operation, third-party lifecycle extension support — including tested surplus and refurbished modules — is the primary procurement strategy.

KJ3001X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the KJ3001X1 and closely related DeltaV M-Series I/O families. Modules are categorized by functional type.

Analog Input (AI)

• KJ3001X1-BA1: 8-channel 4–20 mA analog input with HART, SIL 2 rated
• KJ3001X1-BB1: 8-channel analog input, thermocouple/RTD multi-type, isolated
• KJ3001X1-BC1: 8-channel analog input, high-density voltage/current, non-isolated
• KJ3001X1-BD1: 8-channel AI with extended HART diagnostic pass-through support
• KJ3101X1-BA1: 16-channel analog input, 4–20 mA, HART-enabled, high-density backplane

Analog Output (AO)

• KJ3201X1-BA1: 8-channel 4–20 mA analog output with HART, loop-powered
• KJ3221X1-BA1: 8-channel AO, voltage output, 0–10 V DC, non-isolated
• KJ3222X1-BA1: 8-channel AO, current output, SIL 2 certified for safety loops

Digital Input (DI)

• KJ3001X1-BE1: 8-channel 24 V DC digital input, dry contact and wet contact compatible
• KJ3001X1-BF1: 8-channel DI, 120 V AC input, optically isolated, surge protected
• KJ3241X1-BA1: 16-channel DI, 24 V DC, high-speed pulse counting capable
• KJ3242X1-BA1: 8-channel DI, NAMUR sensor interface, intrinsically safe rated

Digital Output (DO)

• KJ3001X1-BG1: 8-channel 24 V DC digital output, sourcing type, 0.5 A per channel
• KJ3001X1-BH1: 8-channel DO, relay output, SPDT, 2 A at 120 V AC
• KJ3243X1-BA1: 16-channel DO, 24 V DC sinking, high-density terminal block

Output Module (Specific SKU)

• KJ3001X1-BJ1 12P0555X152: Output module assembly, 8-channel DO, includes terminal block sub-assembly 12P0555X152, field-wiring interface for DeltaV M-Series backplane slot

Controller & Communication

• KJ3002X1-BA1: DeltaV M-Series controller card, primary CPU, dual-redundancy capable
• KJ3002X1-BB1: Controller card, redundant pair partner, hot-standby synchronization
• KJ3003X1-BA1: DeltaV network interface card, Ethernet/IP, 100 Mbps
• KJ3004X1-BA1: Serial communication module, RS-232/RS-485, Modbus RTU/ASCII
• KJ3001X1-BK1: Backplane bus terminator and power distribution module
• KJ3001X1-CA1: I/O carrier assembly, 8-slot, horizontal mount, DIN rail compatible
• KJ3001X1-CB1: I/O carrier assembly, 16-slot, vertical mount, panel-mount bracket
