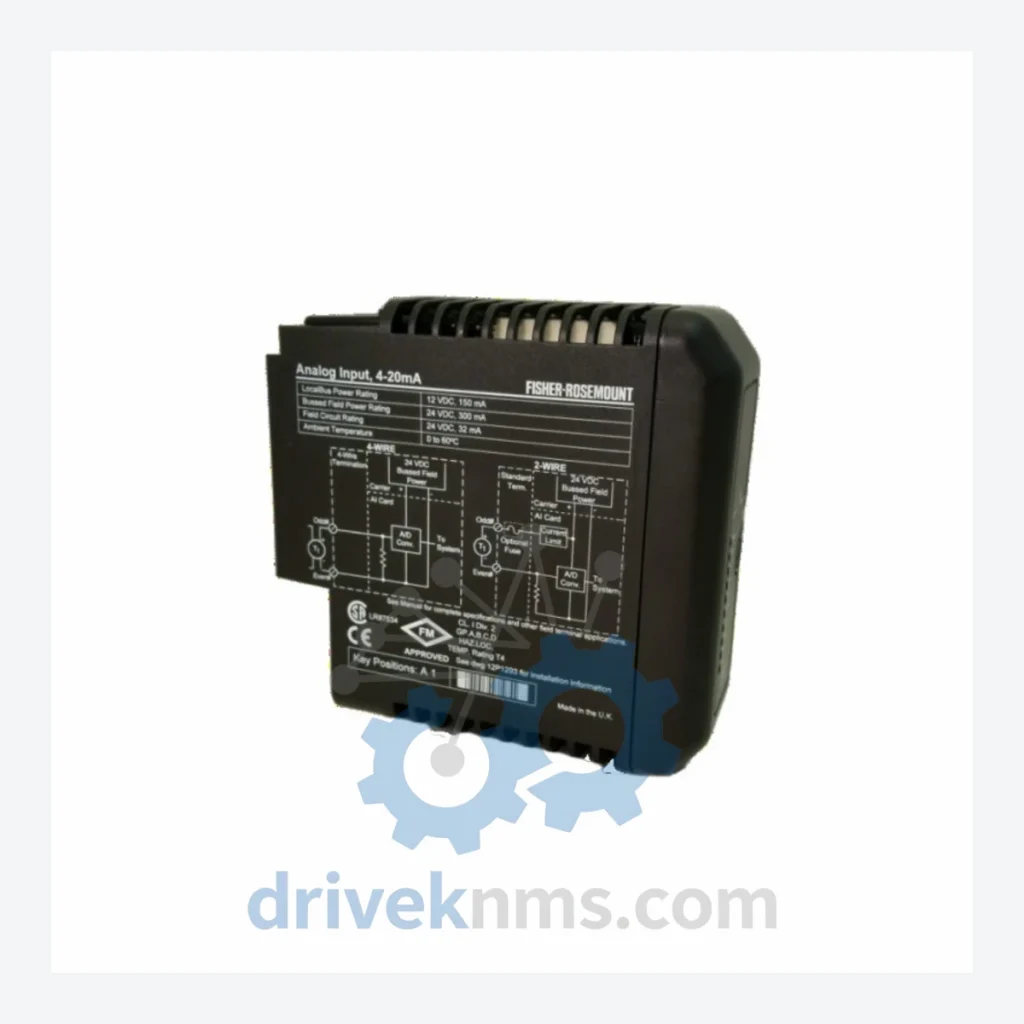

Emerson DeltaV KJ3002X1-BC1 12P0681X072 Analog Input Module

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ3002X1 Series Technical Notes

The Emerson DeltaV KJ3002X1 series of Analog Input Modules occupies a critical position in global heavy-industry distributed control system (DCS) deployments. These modules are installed across petrochemical refineries, nuclear power facilities, offshore platforms, and large-scale chemical processing plants where signal integrity and long-term platform stability are non-negotiable operational requirements. The KJ3002X1 series interfaces field-level 4–20 mA HART signals to the DeltaV controller network, providing 8-channel isolated analog input with per-channel HART pass-through capability. Its architecture is designed for continuous 24/7 operation in Class I Division 2 hazardous environments. The installed base of this series spans multiple decades of DeltaV platform generations, making lifecycle parts availability a primary concern for plant maintenance engineers worldwide.

The Evolution of KJ3002X1 Architecture

The DeltaV Analog Input module lineage traces its origins to the initial DeltaV platform release in the late 1990s. Early-generation modules operated under the DeltaV v5–v7 firmware environment and used a proprietary backplane bus protocol that was incompatible with later CHARM-based I/O architectures introduced in DeltaV v13 and above.

The KJ3002X1 series represents the second-generation analog input design, introducing improved HART 5/6/7 multi-master support and enhanced EMI shielding over its predecessor KJ3001X1. The module communicates over the DeltaV I/O bus via a carrier assembly (the BC1 carrier being the standard 8-slot horizontal carrier), and is firmware-managed through the DeltaV controller without requiring individual module configuration tools.

With the introduction of the Electronic Marshalling architecture (CHARM I/O, CHARacterization Module), Emerson positioned the KJ3002X1 as a legacy-tier module. However, the installed base remains extensive. Plants running DeltaV v10 through v14 on existing hardware cannot migrate to CHARM I/O without significant capital expenditure, making the KJ3002X1 a long-term maintenance item for the foreseeable operational horizon of most facilities commissioned between 2000 and 2015.

Compatibility note: KJ3002X1 modules require a KJ3002X1-BC1 carrier assembly. They are not interchangeable with KJ3001X1 carriers or CHARM baseplates. Firmware compatibility is validated against DeltaV v7.3 through v14.3 LTS.

KJ3002X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified KJ3002X1 series and directly associated carrier and accessory part numbers within the Emerson DeltaV ecosystem. Each entry reflects a distinct hardware configuration or revision state.

Analog Input Modules

• KJ3002X1-BC1 12P0681X072: 8-ch isolated AI, HART 5/6/7, 4–20 mA, standard revision, BC1 carrier-mounted
• KJ3002X1-BC1 12P0681X062: 8-ch isolated AI, HART 5/6/7, earlier firmware revision, functionally equivalent to X072
• KJ3002X1-BC1 12P0681X052: 8-ch isolated AI, HART 5/6, pre-HART 7 revision, compatible with DeltaV v7.3–v11
• KJ3002X1-BC1 12P0681X042: 8-ch isolated AI, HART 5 only, earliest production revision, DeltaV v5–v9 environments
• KJ3002X1-BC1 12P0681X082: 8-ch isolated AI, HART 5/6/7, latest production revision with enhanced diagnostics

Analog Output Modules (companion series)

• KJ3221X1-BC1 12P2714X012: 8-ch isolated AO, HART 5/6/7, 4–20 mA, standard revision
• KJ3221X1-BC1 12P2714X022: 8-ch isolated AO, HART 5/6/7, updated revision with loop diagnostics

Digital Input Modules

• KJ3001X1-BC1 12P0680X072: 8-ch DI, 24 VDC, isolated, NAMUR-compatible, standard revision
• KJ3001X1-BC1 12P0680X062: 8-ch DI, 24 VDC, earlier revision, DeltaV v7–v12 compatible

Digital Output Modules

• KJ3211X1-BC1 12P2713X012: 8-ch DO, 24 VDC, isolated, solid-state output, standard revision
• KJ3211X1-BC1 12P2713X022: 8-ch DO, 24 VDC, relay output variant, updated revision

Carrier Assemblies

• KJ3002X1-BC1: Standard 8-slot horizontal carrier for KJ3002X1 AI modules
• KJ3001X1-BC1: Standard 8-slot horizontal carrier for KJ3001X1 DI modules
• KJ3211X1-BC1: Standard 8-slot horizontal carrier for KJ3211X1 DO modules

Power Supply Modules

• KJ4001X1-BA1 12P1535X012: DeltaV I/O power supply, 24 VDC, redundant-capable, standard revision
• KJ4001X1-BA1 12P1535X022: DeltaV I/O power supply, updated revision with enhanced fault reporting

Controller Modules

• KJ2003X1-BA1 12P1535X032: DeltaV MD-Plus controller, standard revision, compatible with KJ3002X1 I/O bus

Sourcing Hard-to-Find & Obsolete KJ3002X1 Parts

DriveKNMS maintains a dedicated inventory of tested surplus and refurbished KJ3002X1 modules across all revision states. Our sourcing network covers decommissioned DCS systems from refinery turnarounds, plant shutdowns, and system upgrades globally. This allows us to fulfill single-unit emergency replacement orders as well as multi-unit bulk requirements for scheduled maintenance outages.

For plants operating under extended lifecycle agreements (ELA) with Emerson, DriveKNMS can serve as a secondary supply source to supplement OEM support contracts, particularly for revision states no longer stocked by Emerson's own service depots. We maintain traceability documentation for all units, including original system extraction records where available.

Quality Control for the KJ3002X1 Range

The KJ3002X1 module presents specific test challenges due to its multi-channel HART pass-through architecture and isolated backplane bus interface. DriveKNMS applies the following test protocol to all KJ3002X1 units prior to dispatch:

• Backplane bus communication test: Module is seated in a live DeltaV I/O carrier and polled by a DeltaV controller running v11 or v14 firmware. Successful module recognition and channel enumeration is confirmed before proceeding.
• Per-channel 4–20 mA loop calibration: Each of the 8 channels is driven with a precision current source at 4.000 mA, 12.000 mA, and 20.000 mA. Measured values are compared against module-reported values. Deviation tolerance: ±0.1% of span.
• HART communication verification: A HART 7-compliant field device simulator is connected to each channel. Primary variable, device status, and diagnostic data are confirmed to pass through the module to the DeltaV controller without error.
• Isolation integrity test: Channel-to-channel and channel-to-backplane isolation is verified at 500 VDC using a calibrated insulation resistance tester. Minimum acceptable resistance: 100 MΩ.
• Thermal burn-in: Units are powered continuously for 48 hours at 40°C ambient prior to final test to screen for early-life component failures.
• Firmware revision verification: Module firmware version is read and recorded. Units are supplied with firmware revision documentation matching the physical label.
