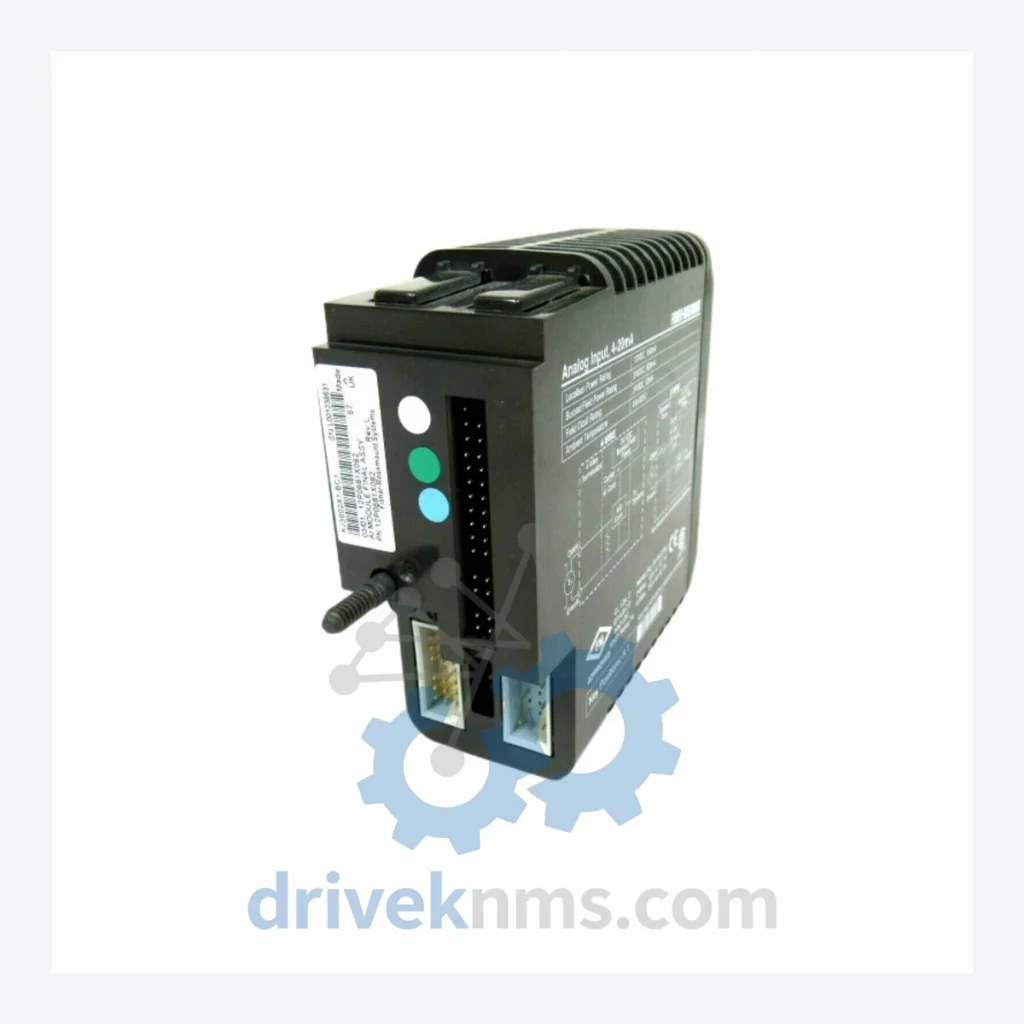

Emerson DeltaV KJ3002X1 Modules - KJ3002X1-BC1 12P0681X082

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ3002X1 Series Technical Notes

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The Evolution of KJ3002X1 Architecture

The DeltaV KJ3002X1 series was introduced as part of Emerson's second-generation DeltaV I/O platform, succeeding the earlier KJ1501 and KJ2201 card families. The architecture shifted from proprietary bus communication to a more open, HART-over-4-20mA signal standard, enabling field device diagnostics without additional wiring infrastructure.

Early revisions (suffix BA1, BB1) focused on basic analog signal conditioning with 8-channel density. Later revisions (BC1, BD1) introduced enhanced EMI shielding, extended operating temperature ranges (−40°C to +70°C), and improved firmware for NAMUR NE107 diagnostic compliance. The series is fully compatible with DeltaV controllers from the MD series through the current SQ series, provided the correct I/O subsystem firmware version is maintained.

KJ3002X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core of the KJ3002X1 series, classified by I/O function. Each module is a discrete field-replaceable unit (FRU) designed for hot-swap operation within the DeltaV carrier assembly.

Analog Input (AI) Modules

• KJ3002X1-BC1 12P0681X082: 8-channel 4–20mA HART analog input, standard density, current revision.
• KJ3002X1-BB1 12P0683X092: 8-channel 4–20mA analog input, earlier hardware revision, HART Rev 5 compatible.
• KJ3002X1-BA1 12P0680X012: 8-channel analog input, original production revision, limited HART diagnostics.
• KJ3002X1-BD1 12P0682X102: 8-channel AI with extended temperature rating and enhanced EMI filtering.
• KJ3002X1-BE1 12P0684X112: 8-channel AI, HART Rev 7 compatible, supports multivariable transmitters.

Analog Output (AO) Modules

• KJ3002X1-CB1 12P0690X042: 8-channel 4–20mA HART analog output, standard revision.
• KJ3002X1-CA1 12P0689X032: 8-channel AO, original revision, compatible with DeltaV MD and MX controllers.
• KJ3002X1-CC1 12P0691X052: 8-channel AO with enhanced loop diagnostics and open-wire detection.
• KJ3002X1-CD1 12P0692X062: 8-channel AO, extended temperature, suitable for outdoor marshalling cabinets.

Digital Input (DI) Modules

• KJ3002X1-DB1 12P0700X072: 8-channel 24VDC digital input, wet contact, standard revision.
• KJ3002X1-DA1 12P0699X062: 8-channel DI, dry contact, original revision.
• KJ3002X1-DC1 12P0701X082: 8-channel DI, 120VAC input compatible, for legacy field wiring.

Digital Output (DO) Modules

• KJ3002X1-EB1 12P0710X092: 8-channel 24VDC digital output, sourcing type, standard revision.
• KJ3002X1-EA1 12P0709X082: 8-channel DO, sinking type, original revision.
• KJ3002X1-EC1 12P0711X102: 8-channel DO with individual channel diagnostics and short-circuit protection.

Power & Carrier Accessories

• KJ3002X1-FA1 12P0720X012: 8-slot I/O carrier assembly, standard mounting, DIN rail compatible.
• KJ3002X1-FB1 12P0721X022: 8-slot carrier with redundant power bus, for SIL-rated applications.

Sourcing Hard-to-Find & Obsolete KJ3002X1 Parts

The KJ3002X1 series occupies a critical position in the spare parts lifecycle: it is neither new enough to be readily available through standard distribution channels nor old enough to have been fully decommissioned from active plants. This creates a sourcing gap that procurement teams encounter repeatedly during planned turnarounds and unplanned shutdowns.

Quality Control for the KJ3002X1 Range

The KJ3002X1 series uses a proprietary backplane bus protocol for communication with the DeltaV controller. Standard bench testing with a generic signal generator is insufficient to validate module health — bus communication integrity must be verified under live DeltaV conditions or using a dedicated bus analyzer.

DriveKNMS applies the following test protocol to all KJ3002X1 units prior to shipment:

• Visual inspection: PCB for corrosion, connector pin integrity, conformal coating condition.
• Power-on self-test (POST): Module LED status verification against Emerson diagnostic codes.
• Signal accuracy test: Each analog channel calibrated against a Fluke 754 HART communicator; accuracy verified to ±0.1% of span.
• HART communication test: DD library handshake verified for HART Rev 5 and Rev 7 compatibility.
• Backplane bus test: Module seated in a live DeltaV test rack; I/O subsystem recognition and channel scan confirmed.
• Burn-in: 24-hour powered soak at 50°C ambient to screen for early-life component failures.
