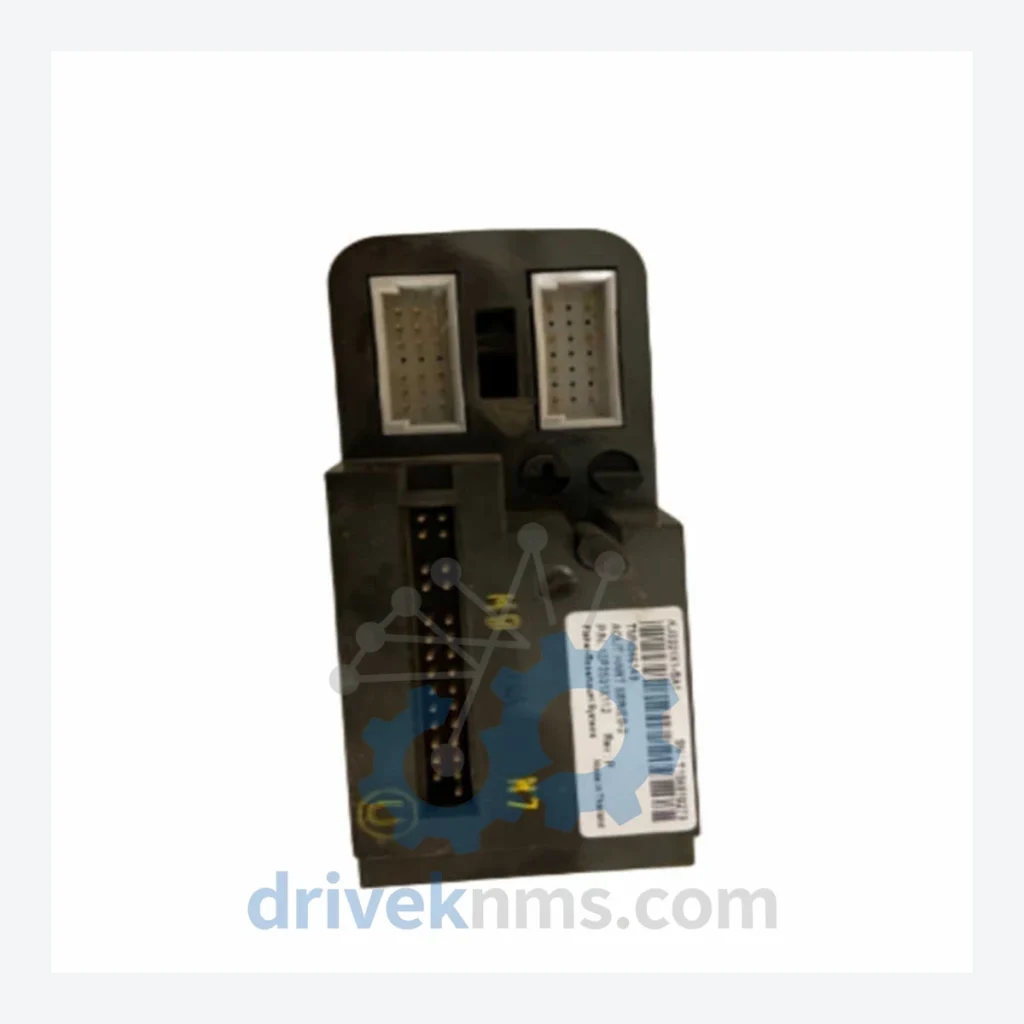

Emerson DeltaV KJ3002X1-BD1 12P1033X102 Analog Input Module

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ30xx Series Technical Notes

The Emerson DeltaV KJ30xx M-Series I/O platform is one of the most widely deployed distributed control system (DCS) I/O architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, LNG terminals, offshore platforms, and continuous-process refineries, the KJ30xx family provides the field-level signal conditioning and marshalling backbone for DeltaV controller nodes. Its modular, carrier-mounted architecture allows hot-swap replacement without process interruption, a critical requirement in facilities operating under 24/7 uptime mandates. The series supports HART pass-through on analog channels, enabling asset management integration via AMS Device Manager. With a global installed base spanning hundreds of thousands of I/O points, the KJ30xx series represents a long-lifecycle platform that remains in active maintenance and spare parts demand well beyond its original production window.

The Evolution of DeltaV KJ30xx Architecture

The DeltaV M-Series I/O was introduced in the late 1990s as Emerson's answer to the growing demand for scalable, fieldbus-ready DCS I/O. Early revisions of the KJ30xx family (BA1, BB1 suffixes) established the carrier-and-module form factor that became the platform standard. These modules communicate with the DeltaV controller via a proprietary backplane bus, with each carrier supporting up to eight I/O modules in a single marshalling cabinet footprint.

DeltaV KJ30xx Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the Emerson DeltaV KJ30xx M-Series I/O family. Modules are classified by function. Each entry reflects a discrete, field-replaceable unit (FRU).

Analog Input (AI) Modules

• KJ3002X1-BA1: 8-channel 4–20 mA HART analog input, early BA1 revision, standard density.
• KJ3002X1-BB1: 8-channel HART AI, BB1 revision with improved surge protection on field terminals.
• KJ3002X1-BD1: 8-channel HART AI, BD1 revision; assembly 12P1033X102; broadest firmware compatibility.
• KJ3002X1-BG1: 8-channel HART AI, BG1 revision; enhanced EMI filtering for high-noise environments.

Analog Output (AO) Modules

• KJ3003X1-BA1: 8-channel 4–20 mA HART analog output, loop-powered, BA1 revision.
• KJ3003X1-BC1: 8-channel HART AO, BC1 revision; improved output accuracy ±0.1% full scale.

Digital Input (DI) Modules

• KJ3001X1-BA1: 8-channel 24 VDC digital input, dry contact and wet contact configurable.
• KJ3001X1-BB1: 8-channel DI, BB1 revision; extended input voltage range 10–30 VDC.
• KJ3101X1-BB1: 8-channel 120 VAC digital input module for high-voltage field device interfacing.

Digital Output (DO) Modules

• KJ3202X1-BA1: 8-channel 24 VDC digital output, sourcing type, 0.5 A per channel.
• KJ3203X1-BA1: 8-channel 24 VDC DO, sinking configuration, short-circuit protected.
• KJ3204X1-BA1: 8-channel relay output module, SPDT contacts, 2 A resistive load.

Thermocouple / RTD Input Modules

• KJ3221X1-BA1: 8-channel thermocouple input; supports J, K, T, E, R, S, B type sensors.
• KJ3222X1-BA1: 8-channel RTD input; supports Pt100, Pt200, Pt500, Ni120 configurations.
• KJ3241X1-BA1: 8-channel mV/TC input with cold junction compensation, high-resolution ADC.
• KJ3242X1-BA1: 8-channel RTD/resistance input, 3-wire and 4-wire measurement modes.
• KJ3243X1-BA1: 8-channel isolated TC/mV input, galvanic isolation per channel.

Communication & Controller Modules

• KJ4001X1-BA1: DeltaV M-Series controller module, primary CPU for KJ30xx carrier systems.
• KJ4001X1-BE1: DeltaV M-Series controller, BE1 revision; increased memory and faster scan cycle support.

Sourcing Hard-to-Find & Obsolete DeltaV KJ30xx Parts

All units are cross-referenced against Emerson assembly numbers (e.g., 12P1033X102 for KJ3002X1-BD1) to ensure exact hardware revision matching. This is critical for facilities where firmware compatibility between controller and I/O module revisions is a validated parameter in their process safety management (PSM) documentation. DriveKNMS provides full traceability documentation, including supplier chain records and inspection reports, to support customer qualification processes.

Quality Control for the DeltaV KJ30xx Range

Each KJ30xx module processed by DriveKNMS undergoes a structured inspection and functional test protocol prior to shipment. The procedure addresses the specific failure modes documented for the M-Series I/O platform:

• Backplane connector inspection: Visual and dimensional check of the 96-pin DIN connector for bent pins, corrosion, and mechanical damage. This connector is the primary failure point for modules removed and reinstalled multiple times in the field.
• Channel-level functional test: Each analog channel is stimulated with a calibrated 4–20 mA source (AI modules) or loaded with a precision resistive load (AO modules) and output values are verified against datasheet accuracy specifications.
• HART communication verification: A HART master device is connected to each channel to confirm HART layer 2 and layer 7 communication integrity, validating that the HART modem circuitry is functional.
• Power rail measurement: Internal 3.3 V and 5 V power rails are measured under load to confirm regulator health.
• Firmware revision identification: Where accessible, module firmware revision is read and documented to support customer compatibility verification against their DeltaV system version.
