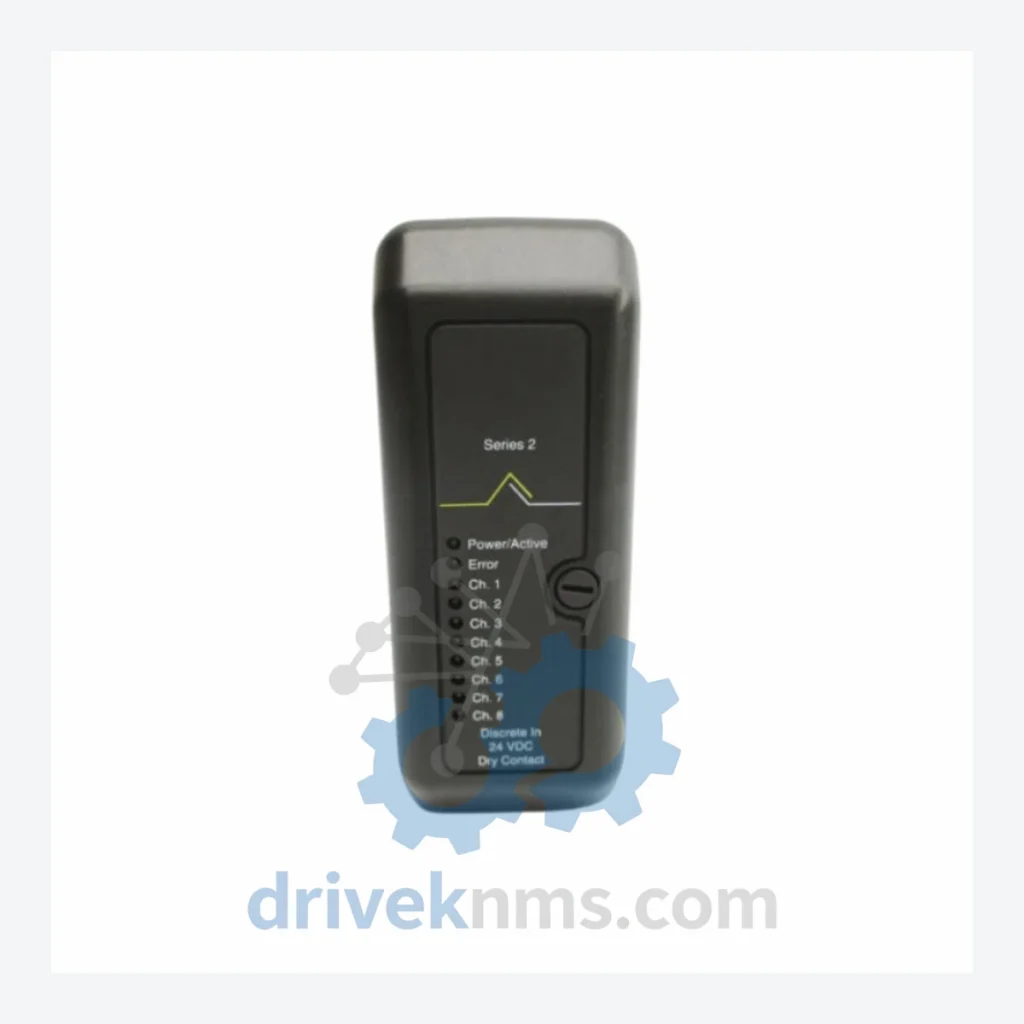

Emerson DeltaV KJ3201X1-BA1 12P2535X042: Dry Contact Input Module

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ3201X1-BA1 Series Technical Notes

The Emerson DeltaV KJ3201 series of Dry Contact Input modules occupies a critical position in global heavy-industry automation infrastructure. Deployed extensively across petrochemical complexes, LNG terminals, nuclear power stations, offshore platforms, and crude oil refineries, the KJ3201 family provides hardened discrete input acquisition within the DeltaV distributed control system (DCS) architecture. These modules interface directly with field-level dry contact signals — limit switches, valve position feedback, motor run status, and interlock logic — and transmit state data over the DeltaV FOUNDATION fieldbus backplane to the controller subsystem. Their role in safety-critical process loops makes long-term parts availability a primary operational concern for plant maintenance engineers worldwide.

The Evolution of KJ3201 Architecture

The DeltaV platform was introduced by Emerson (then Fisher-Rosemount) in the mid-1990s as a scalable, node-based DCS designed to replace legacy PROVOX and RS3 systems. The KJ3201 Dry Contact Input module was part of the original Series 1 I/O card set, designed for 8-channel discrete input acquisition from volt-free contacts. Early revisions operated exclusively within the S-series controller nodes (MD, MD Plus) using the DeltaV proprietary backplane bus at 2 Mbps.

With the introduction of DeltaV Series 2 hardware (circa 2005–2008), Emerson revised the KJ3201 family to support higher-density I/O carriers and improved diagnostics. The KJ3201X1-BA1 revision introduced enhanced EMI shielding, extended operating temperature tolerance (0°C to 60°C), and compatibility with the 12P2535X042 carrier assembly. The module communicates module health, channel-level diagnostics, and contact state to the DeltaV controller in real time, enabling predictive maintenance workflows within AMS Device Manager.

As DeltaV evolved through versions 10, 11, 12, 13, and 14, the KJ3201 series maintained backward compatibility with existing I/O subsystems, making it one of the longest-supported discrete input module families in the DeltaV ecosystem. However, Emerson has progressively migrated new installations toward the CHARMS (CHARacterization Modules) I/O architecture introduced with DeltaV v13, which offers channel-by-channel configurability. Plants running pre-v13 DeltaV systems continue to rely on KJ3201 modules for both operational spares and corrective maintenance.

KJ3201X1-BA1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified KJ3201 series and closely associated DeltaV discrete I/O modules. Each entry reflects a distinct hardware revision, carrier pairing, or functional variant within the Emerson DeltaV I/O subsystem.

Discrete Input Modules (DI)

KJ3201X1-BA1 / 12P2535X042: 8-channel dry contact input module, Series 2, standard carrier assembly, DeltaV backplane bus compatible.
KJ3201X1-BB1: 8-channel dry contact input, revised conformal coating specification for high-humidity environments.
KJ3201X1-BC1: 8-channel dry contact input, extended temperature variant (-20°C to 70°C), offshore/arctic deployment.
KJ3202X1-BA1: 8-channel 24 VDC discrete input module, wet contact (sourcing), paired with 12P2536X042 carrier.
KJ3202X1-BB1: 8-channel 24 VDC discrete input, sinking configuration, for NPN field devices.
KJ3203X1-BA1: 8-channel 120 VAC discrete input module, high-voltage field interface, power plant applications.
KJ3204X1-BA1: 8-channel 240 VAC discrete input module, utility-grade isolation, substation integration.

Discrete Output Modules (DO)

KJ3221X1-BA1: 8-channel 24 VDC discrete output, sourcing, relay-driven field loads up to 0.5 A per channel.
KJ3221X1-BB1: 8-channel 24 VDC discrete output, sinking, NPN-compatible actuator interface.
KJ3222X1-BA1: 8-channel 120 VAC discrete output, triac-based switching, motor starter control.
KJ3223X1-BA1: 8-channel relay output module, Form C contacts, 2 A @ 30 VDC / 0.5 A @ 120 VAC.

Analog Input Modules (AI)

KJ3001X1-BA1: 8-channel 4–20 mA analog input, HART pass-through, standard DeltaV carrier.
KJ3001X1-BB1: 8-channel 4–20 mA analog input, high-resolution 16-bit ADC variant.
KJ3002X1-BA1: 8-channel thermocouple/mV input module, cold junction compensation, multi-type support (J, K, T, E, R, S, B).

Analog Output Modules (AO)

KJ3011X1-BA1: 8-channel 4–20 mA analog output, HART-enabled, control valve and positioner interface.
KJ3011X1-BB1: 8-channel 4–20 mA analog output, isolated channel architecture, high-impedance loop compatibility.

Associated Carrier Assemblies

12P2535X042: Standard 8-channel I/O carrier for KJ3201X1-BA1, screw-terminal field wiring, DIN-rail mount.
12P2536X042: 8-channel carrier for KJ3202 series, 24 VDC wet contact wiring configuration.

Sourcing Hard-to-Find & Obsolete KJ3201X1-BA1 Parts

The KJ3201 series has entered the mature-to-declining phase of its product lifecycle. Emerson's current DeltaV CHARMS architecture is the designated replacement for new greenfield projects, and Emerson has progressively reduced factory production runs of legacy KJ-series I/O cards. This creates a documented supply gap for plants operating DeltaV systems on versions 10 through 12, where CHARMS retrofits are not economically viable within existing maintenance budgets.

Quality Control for the KJ3201X1-BA1 Range

The KJ3201X1-BA1 module incorporates a multi-layer backplane connector and a proprietary DeltaV bus transceiver IC that requires targeted test procedures beyond standard continuity checks. DriveKNMS applies the following verification protocol to all KJ3201 series units:

Backplane Bus Communication Test: Each module is seated in a live DeltaV I/O subsystem test bench running DeltaV v11 or v12 software. Module recognition, firmware version readback, and channel-level diagnostic reporting are verified against Emerson factory baseline parameters.

Channel-Level Contact State Verification: All 8 input channels are individually exercised using a calibrated dry contact simulator. Open/closed state transitions are verified at the DeltaV controller level, confirming end-to-end signal path integrity through the carrier assembly and backplane.

Isolation and Leakage Test: Channel-to-channel and channel-to-backplane isolation resistance is measured at 500 VDC. Minimum acceptable isolation: 100 MΩ. Units failing this threshold are rejected from serviceable inventory.

Thermal Cycling: Modules flagged as refurbished undergo a 4-hour thermal soak at 55°C followed by ambient stabilization, with bus communication and channel state re-verified post-cycle to screen for latent solder joint or connector degradation.

Firmware and Revision Audit: Hardware revision markings (BA1, BB1, BC1) and embedded firmware version strings are logged and matched against Emerson's published compatibility matrix for the target DeltaV system version.
