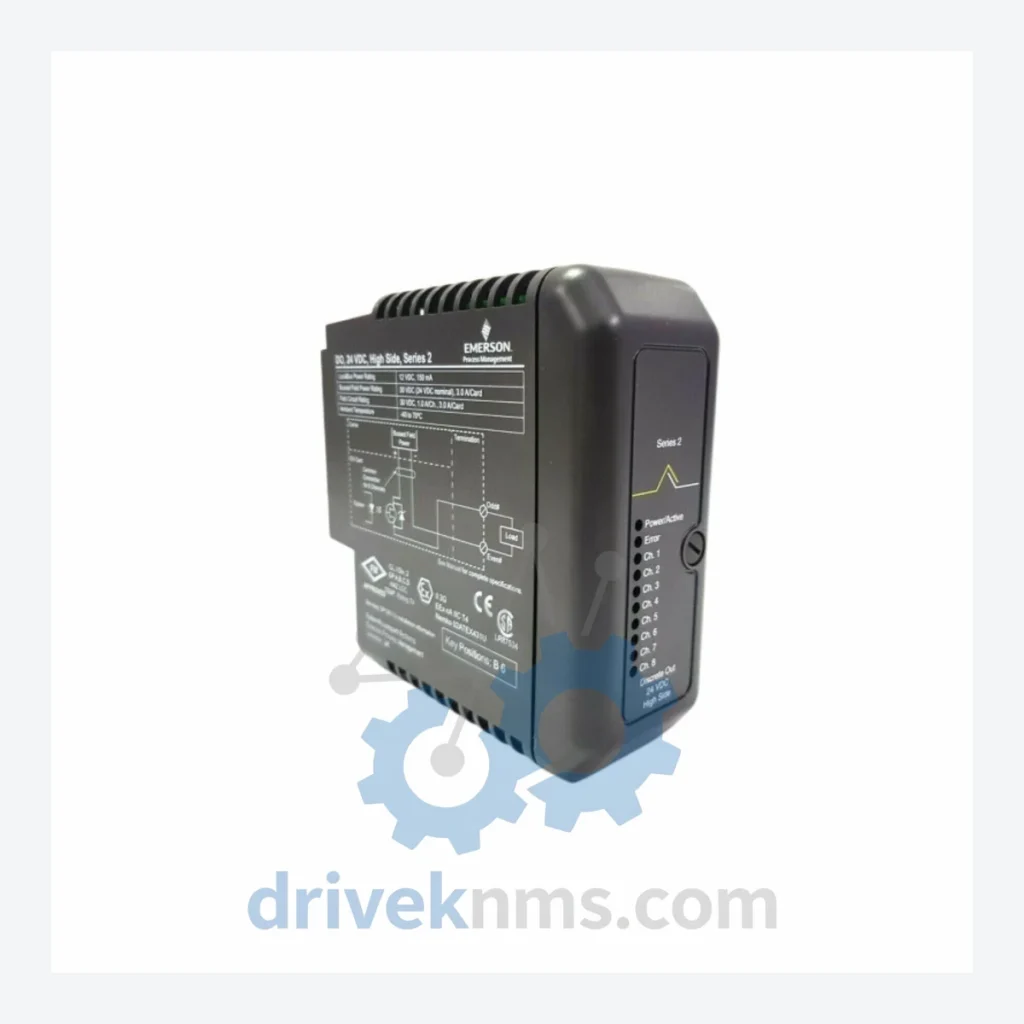

Emerson KJ3202X1-BA1 High Side Card – Obsolete DeltaV Spare Part

Technical Dossier

Product Details And Specifications

Emerson KJ3202X1-BA1 High Side Card – Obsolete DeltaV Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Solving the Discontinued Hardware Crisis

The KJ3202X1-BA1 High Side Card occupies a specific slot in the DeltaV I/O subsystem. It is not interchangeable with later-generation cards without controller firmware updates, I/O database reconfiguration, and in some cases, physical backplane modifications. For a plant manager facing a card failure at 2 a.m. on a Sunday, none of those options are available on short notice.

For facilities managing multiple DeltaV nodes, a structured obsolete-parts inventory — covering I/O cards, power supplies, and controller modules — is a recognized asset-protection practice. It extends the economic life of a proven, stable control system by 5 to 10 years without the capital expenditure and operational risk of a full DCS migration.

Condition & Reliability Assurance

Sourcing discontinued industrial electronics carries inherent risk. DriveKNMS applies a five-stage inspection protocol to every unit before it is offered for sale:

• Visual and mechanical inspection: Enclosure integrity, connector pin condition, corrosion screening on all exposed contacts and PCB surfaces.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are a primary failure mode in legacy I/O hardware. Each unit is evaluated for capacitor condition; units showing signs of electrolyte leakage or bulging are rejected.
• Firmware and label verification: Reference numbers and revision markings are cross-checked against known production records to confirm authenticity and revision compatibility.
• Pin and connector integrity check: All edge connectors and backplane interface pins are inspected under magnification for oxidation, mechanical deformation, and solder joint integrity.
• Functional pre-shipment check: Where test infrastructure permits, units are powered and checked for basic operational response prior to dispatch.

Key Features for System Maintenance

• Drop-in replacement: The KJ3202X1-BA1 installs directly into the existing DeltaV backplane slot. No controller reconfiguration is required when replacing a like-for-like unit.
• No re-programming required: DeltaV I/O cards of the same revision carry their configuration from the controller database. Swapping a failed card does not require re-downloading the I/O configuration in standard replacement scenarios.
• Avoids engineering re-work costs: A direct spare replacement eliminates the need for control system engineers, loop re-commissioning, and process safety reviews that a hardware-generation change would trigger.
• Protects validated environments: In pharmaceutical and food-grade facilities operating under regulatory validation frameworks, replacing a card with an identical part number preserves the validated state of the control system. A hardware upgrade would require re-validation — a process measured in months and significant cost.

Extending Automation Asset Life: A Practical Strategy for Plant Management

The decision to migrate away from a legacy DCS is rarely driven by the control system's inability to perform its function. It is driven by the inability to maintain it. When spare parts become unavailable, the risk calculus shifts: a single card failure becomes a potential production stoppage of indefinite duration.

The practical counter-strategy is straightforward: identify the highest-risk single points of failure in the existing DeltaV architecture — typically I/O cards, power supply modules, and communication interface cards — and secure physical spares before they become impossible to source. This approach has been used by asset-intensive industries to defer DCS migrations by 5 to 10 years while maintaining full production reliability.

The cost of a structured spare-parts program for a legacy DeltaV system is a fraction of the cost of a single unplanned outage, and orders of magnitude less than a full system replacement. For plant managers under pressure to defer capital expenditure, it is the most defensible maintenance investment available.

Can you supply multiple units for a long-term spares program?
Yes. DriveKNMS works with plant engineering and procurement teams to structure multi-unit spare parts agreements. Contact us to discuss quantity availability and pricing for bulk orders.
