Emerson DeltaV KJ3208X1-BA1 12P3904X012 Modules

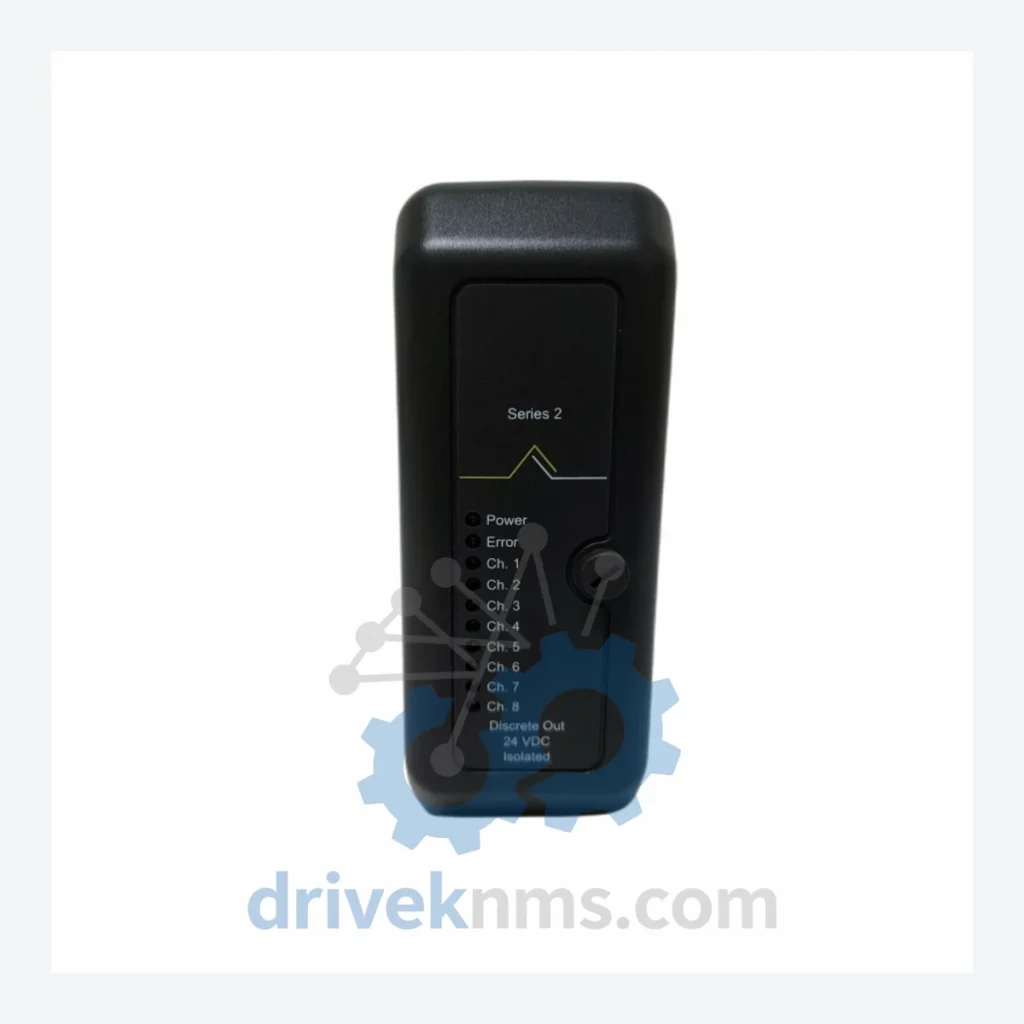

Name: Emerson DeltaV KJ3208X1-BA1 12P3904X012 Modules
Brand: Emerson

Model: KJ3208X1-BA1 12P3904X012

Brand Emerson

Series DeltaV

Model KJ3208X1-BA1 12P3904X012

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ3208X1 Series Technical Notes

The Emerson DeltaV KJ3208X1 series represents a core analog output module family within the DeltaV distributed control system (DCS) platform, deployed extensively across global heavy industries including petrochemical refineries, nuclear power facilities, LNG terminals, offshore platforms, and continuous-process chemical plants. The KJ3208X1-BA1, part number 12P3904X012, is an 8-channel isolated analog output module operating on the DeltaV Series 2 Electronic Marshalling (CHARM) and traditional I/O card architecture. Its galvanic isolation per channel makes it the preferred selection for high-noise industrial environments where ground loops and signal interference are critical failure vectors. Installed base counts for the KJ3208X1 family run into the tens of thousands of nodes globally, with the majority embedded in facilities operating on 15–25 year maintenance cycles.

The Evolution of KJ3208X1 Architecture

The DeltaV I/O architecture has progressed through three distinct generations since its commercial introduction in the mid-1990s. The first-generation DeltaV I/O cards (Series 1) established the foundational 4–20 mA analog output standard with shared-rail isolation, suitable for general process control but limited in channel-to-channel fault containment. The KJ3208X1 series belongs to the second-generation architecture, introducing per-channel galvanic isolation, which eliminated cross-channel fault propagation — a critical requirement for SIL-rated loops and safety instrumented systems (SIS). The third generation introduced CHARM (Characterization Module) technology, enabling field-configurable I/O types without hardware changes. Despite CHARM's flexibility, the KJ3208X1 remains in active procurement due to the massive installed base of legacy DeltaV cabinets that cannot be economically migrated to CHARM architecture without full cabinet redesign. Compatibility is maintained across DeltaV controller generations (MD, MD Plus, S-series) via the standard DeltaV backplane bus, though firmware alignment between the module and the controller must be verified during replacement to avoid bus communication faults.

KJ3208X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Emerson DeltaV KJ3208X1 analog output module family and related DeltaV I/O ecosystem. Each entry reflects a distinct hardware configuration or revision.

KJ3208X1-BA1 (12P3904X012): 8-ch isolated analog output, 4–20 mA, Series 2, standard revision.
KJ3208X1-BB1 (12P3904X022): 8-ch isolated analog output, revised conformal coating for high-humidity environments.
KJ3208X1-BC1 (12P3904X032): 8-ch isolated analog output, extended temperature range variant (-40°C to +70°C).
KJ3201X1-BA1 (12P2535X012): 8-ch analog input, 4–20 mA, non-isolated, standard DeltaV backplane.
KJ3202X1-BA1 (12P2536X012): 8-ch analog input, isolated, HART-enabled per channel.
KJ3203X1-BA1 (12P2537X012): 8-ch analog output, non-isolated, 4–20 mA, legacy revision.
KJ3204X1-BA1 (12P2538X012): 16-ch digital input, 24 VDC, standard DeltaV I/O card.
KJ3205X1-BA1 (12P2539X012): 8-ch digital output, 24 VDC, relay-isolated contacts.
KJ3206X1-BA1 (12P2540X012): 8-ch thermocouple/mV input, isolated, multi-type TC support.
KJ3207X1-BA1 (12P2541X012): 8-ch RTD input, isolated, 2/3/4-wire PT100/PT1000 compatible.
KJ3209X1-BA1 (12P3905X012): 8-ch isolated analog output, HART pass-through enabled revision.
KJ3221X1-BA1 (12P2543X012): 4-ch analog output, high-resolution 16-bit DAC, isolated.
KJ3222X1-BA1 (12P2544X012): 4-ch analog input, high-resolution 16-bit ADC, isolated.
KJ3223X1-BA1 (12P2545X012): Pulse input module, 4-ch, frequency/totalizer function.
KJ3224X1-BA1 (12P2546X012): Serial interface module, RS-232/RS-485, Modbus RTU gateway.
KJ3225X1-BA1 (12P2547X012): FOUNDATION Fieldbus H1 interface, 2-segment, DeltaV backplane mount.
KJ3226X1-BA1 (12P2548X012): PROFIBUS DP interface module, DeltaV I/O bus, V1 slave support.

Continue The Model Path

Use system, brand and series routes to compare related published models.

Move from this exact model into the matching system hub, brand archive, model-family archive or lifecycle sourcing route before sending a final RFQ list.
