Emerson KJ3222X1-BA1 12P2532X092 Analog Input Module – Obsolete DeltaV Spare Part

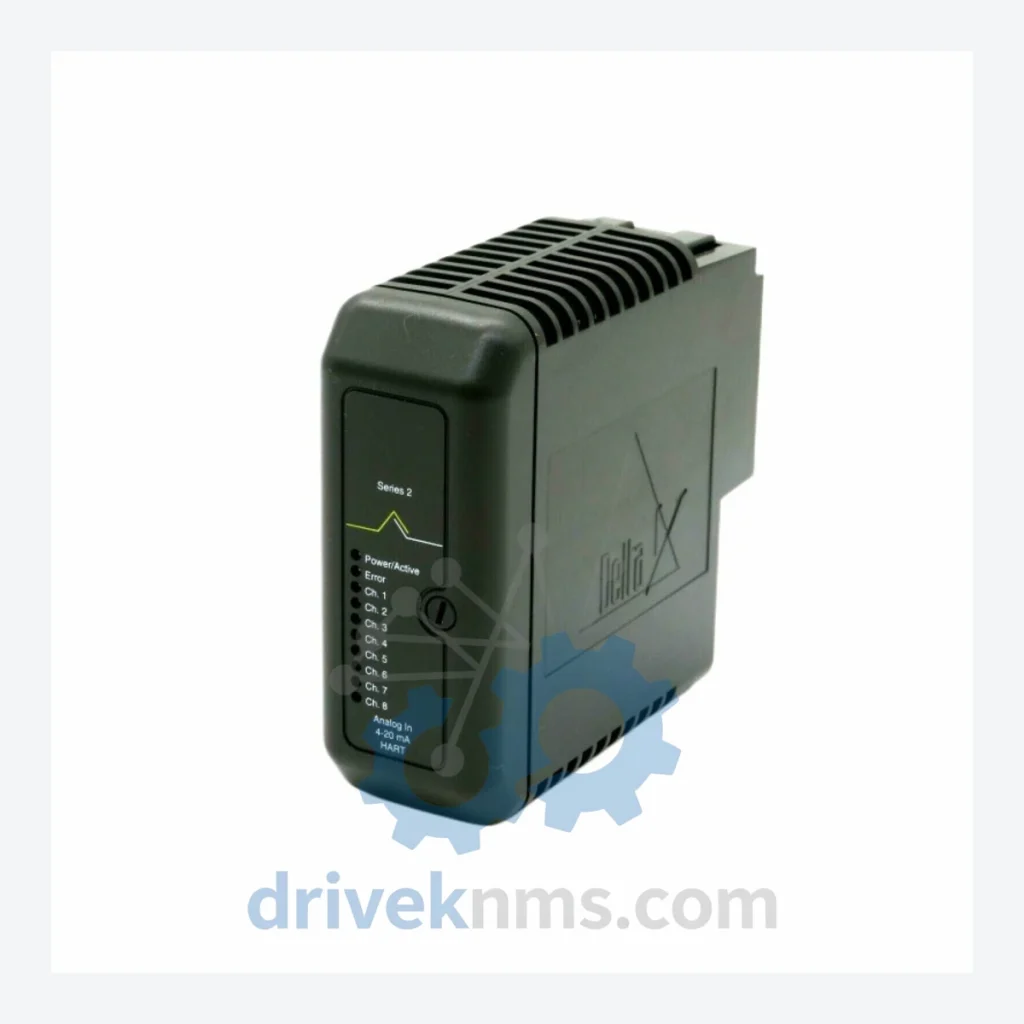

The Emerson KJ3222X1-BA1 (part number 12P2532X092) is a HART-enabled, 8-channel analog input module designed for the DeltaV Series 2 Local Bus architecture. Production of this module has been discontinued by Emerson. Replacement units are no longer available through standard distribution channels. DriveKNMS maintains RFQ-reviewed sourcing status of this module for facilities that cannot afford an unplanned system outage.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not listed above are not independently verified by DriveKNMS. Specifications should be cross-referenced against the Emerson DeltaV Series 2 I/O Reference Manual prior to installation.

Solving the Discontinued Hardware Crisis

The DeltaV platform has been a backbone of process automation in oil & gas, pharmaceutical, and chemical manufacturing for over two decades. The Series 2 Local Bus I/O architecture, while robust in operation, represents a hardware generation that Emerson has systematically phased out of its active product portfolio. The KJ3222X1-BA1 sits at the center of this discontinuation wave.

Facilities running DeltaV MD or SD controllers with Series 2 I/O subsystems face a structural problem: the controller logic, the field wiring, and the operator interface are all calibrated around this specific I/O card form factor. Substituting a current-generation CHARM I/O or Electronic Marshalling module is not a drop-in operation — it requires backplane replacement, controller reconfiguration, and in most cases, a full loop checkout. That work takes weeks, not days.

How to extend your DeltaV Series 2 asset life by 5 to 10 years — without a platform migration:

These measures do not require capital expenditure approval. They require planning discipline and access to verified spare parts inventory — both of which DriveKNMS is positioned to support.

Condition & Reliability Assurance

Sourcing obsolete industrial hardware from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step inspection protocol to every KJ3222X1-BA1 unit before it is offered for sale:

1. Visual and mechanical inspection: Full examination of the PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure. Units with pin deformation, burn marks, or cracked housings are rejected at this stage.
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in legacy analog I/O modules. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Modules with suspect capacitors are quarantined and not offered as operational spares.
3. Firmware version verification: Where accessible, the module firmware revision is documented and cross-referenced against known compatible DeltaV controller firmware versions. Incompatible firmware combinations are flagged prior to sale.
4. Pin and connector integrity check: The Local Bus edge connector and field terminal block contacts are inspected for oxidation, fretting corrosion, and mechanical wear. Contact surfaces are cleaned and verified against continuity specifications.
5. Functional power-on verification: Where test infrastructure permits, modules are powered and checked for basic operational response prior to packaging.

Key Features for System Maintenance

• Drop-in replacement compatibility: The KJ3222X1-BA1 installs directly into any Series 2 DeltaV I/O backplane slot configured for an 8-channel analog input module. No backplane modification is required.
• No controller reprogramming required: DeltaV's module recognition is based on the backplane slot assignment and module type, not the individual unit serial number. A verified replacement module restores full I/O function without any controller-side configuration change.
• HART pass-through preserved: The HART communication channel is maintained through the replacement module, preserving access to field device diagnostics and calibration data without additional engineering work.
• Avoids engineering re-scoping costs: A platform migration triggered by I/O module unavailability typically requires a formal engineering change order, updated P&IDs, and a management of change (MOC) process. A like-for-like module replacement bypasses all of that overhead.

How do I confirm the unit is genuine and not counterfeit?
Every unit sold by DriveKNMS includes documentation of its inspection history and, where available, provenance records. We do not source from unverified brokers. Customers requiring third-party authentication can arrange independent inspection prior to shipment.

Should I buy more than one unit?
For any module that is confirmed obsolete and installed in a running system, the answer is yes. The KJ3222X1-BA1 is no longer in production. Current secondary market availability is finite. Facilities that have experienced one failure of this module type should treat additional units as insurance against a second failure, not as excess inventory.

Can DriveKNMS source other DeltaV Series 2 modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. Contact us with your full bill of materials for a consolidated availability assessment.
