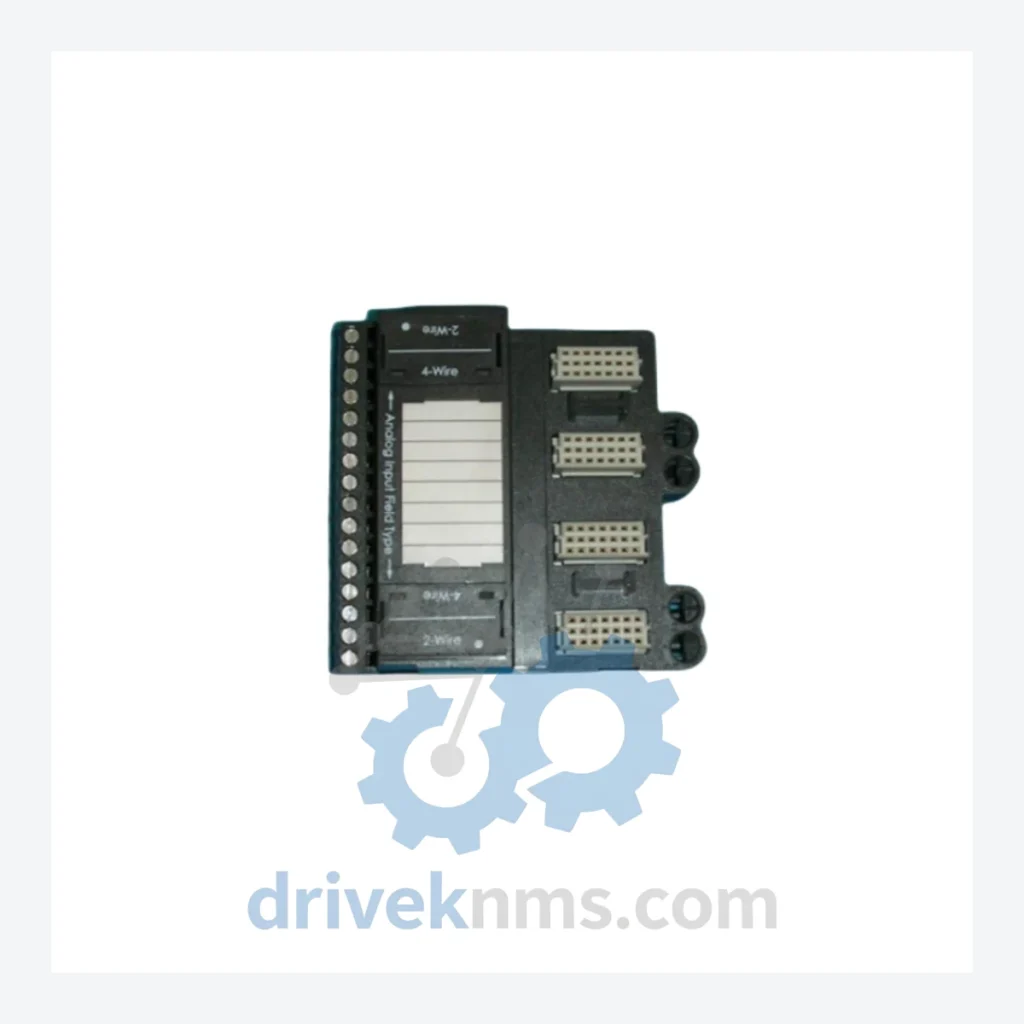

Emerson KJ3222X1-EA1 Termination Block – Obsolete DeltaV Spare Part

Technical Dossier

Product Details And Specifications

Emerson KJ3222X1-EA1 Termination Block – Obsolete DeltaV Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to individual installation configurations are not published here. Contact our technical team for application-specific verification before ordering.

Solving the Discontinued Hardware Crisis

The Emerson DeltaV platform has been in continuous industrial service since the mid-1990s. Thousands of process plants across refining, petrochemical, power generation, and pharmaceutical manufacturing built their control infrastructure around DeltaV's modular I/O architecture. The KJ3222X1-EA1 termination block sits at the physical boundary between field instrumentation and the DeltaV I/O card — it is the point where 4–20 mA loops, discrete signals, and HART communications terminate before entering the digital control layer.

Plants that have maintained a strategic inventory of KJ3222X1-EA1 units have consistently avoided unplanned shutdowns and deferred system migration on their own schedule — not under emergency pressure. DriveKNMS sources, inspects, and holds this component specifically for facilities that cannot afford to discover the shortage at the moment of failure.

Condition & Reliability Assurance

Every KJ3222X1-EA1 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale. This protocol is designed around the known failure modes of legacy DeltaV termination hardware:

• Step 1 – Electrolytic Capacitor Assessment: Aging capacitors are the primary cause of latent failure in legacy I/O components. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either recapped with specification-matched components or rejected.
• Step 2 – Firmware Version Verification: Where applicable, embedded firmware revisions are confirmed against Emerson's published compatibility matrix for the target DeltaV system version.
• Step 3 – Terminal Pin and Connector Inspection: All field-wiring terminals and backplane connectors are examined under magnification for oxidation, corrosion, mechanical deformation, and contact resistance anomalies.
• Step 4 – Functional Bench Test: Units are powered and tested for signal continuity and correct electrical behavior across all termination points.
• Step 5 – Packaging and ESD Protection: Cleared units are packaged in anti-static enclosures with desiccant and labeled with inspection date and technician ID for full traceability.

Key Features for System Maintenance

Q: Should we purchase more than one unit as a long-term reserve?
A: For any DeltaV installation with more than four I/O carriers using this termination type, holding a minimum of two spare units is the standard recommendation. Given that this part is no longer manufactured, secondary market availability will decrease over time. Procurement at current pricing protects against both supply scarcity and price escalation.

Q: Can DriveKNMS source additional quantity if we need more than what is currently listed?
A: Contact our team directly. We maintain active sourcing networks across industrial surplus markets globally and can often locate additional units for customers with larger reserve requirements.
