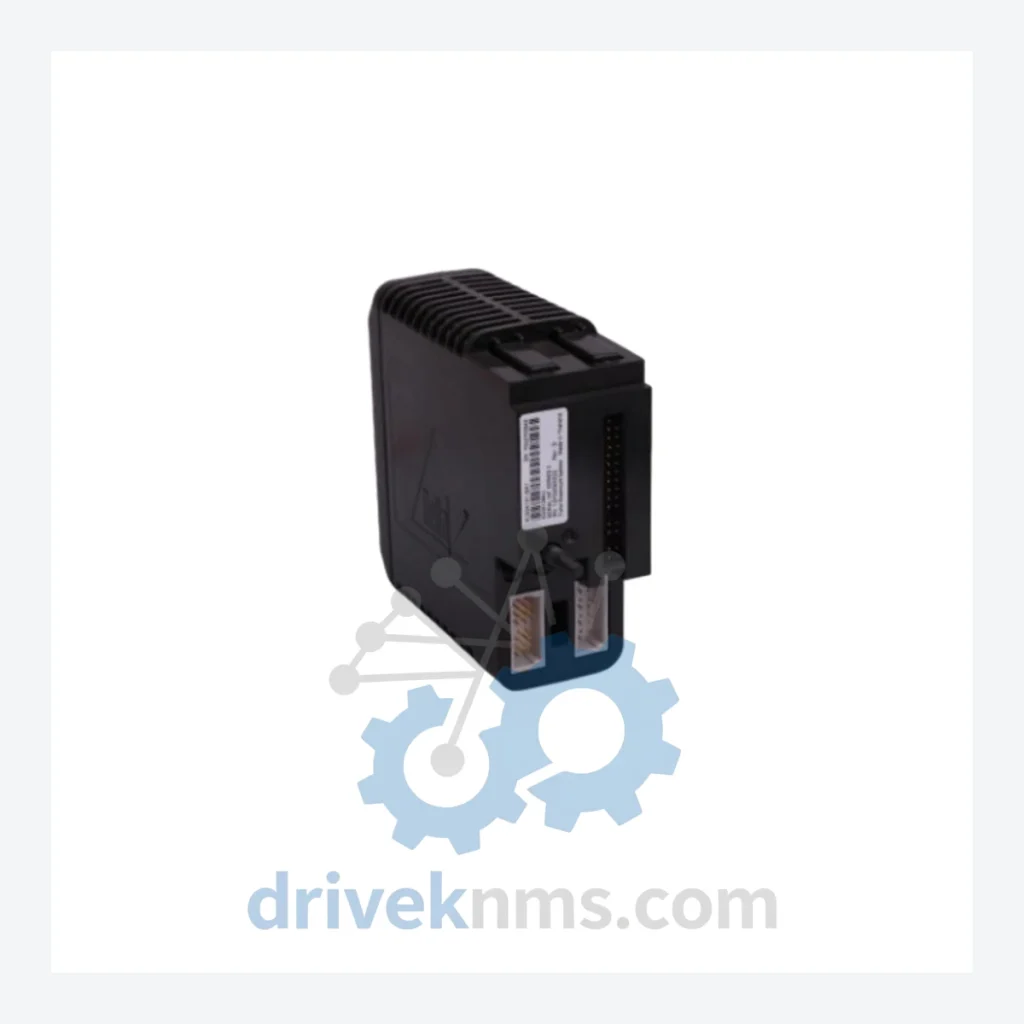

Emerson DeltaV KJ3241X1-BA1 12P2506X042 Redundant Serial Interface Card

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ3241X1 Series Technical Notes

The Emerson DeltaV KJ3241X1 series represents a dedicated line of redundant serial interface cards deployed across global heavy industry installations, including petrochemical complexes, nuclear power facilities, oil refineries, and LNG terminals. These modules serve as the communication backbone between DeltaV distributed control system (DCS) controllers and legacy serial field devices operating on RS-232, RS-422, and RS-485 protocols. The KJ3241X1 platform is embedded in thousands of continuous-process installations where replacement of the underlying serial infrastructure is cost-prohibitive, making long-term spare parts availability a critical operational requirement. The KJ3241X1-BA1 12P2506X042 variant specifically provides redundant serial communication with dual-path failover, ensuring zero-interruption data integrity in safety-critical loops.

The Evolution of KJ3241X1 Architecture

The DeltaV serial interface card lineage traces to Emerson's late-1990s DeltaV S-series platform, where serial communication modules were introduced to bridge legacy HART, Modbus RTU, and proprietary serial protocols into the DeltaV fieldbus environment. Early revisions (pre-BA1) operated as single-path serial interfaces with no hardware redundancy, relying on software-level retry logic for fault tolerance. The BA1 revision introduced dual-port hardware redundancy, allowing the primary and secondary communication paths to operate in hot-standby mode with automatic switchover latency under 100 ms.

Architecturally, the KJ3241X1 card interfaces with the DeltaV controller via the DeltaV I/O bus backplane, consuming one I/O slot and communicating over the internal FOUNDATION fieldbus-derived backplane protocol. The card supports up to 8 serial channels per module depending on variant, with each channel independently configurable for baud rate (1200–115200 bps), parity, stop bits, and protocol framing. Later hardware revisions introduced extended temperature tolerance (0–60°C operating range) and improved EMI shielding for installation in proximity to high-voltage switchgear.

As the DeltaV platform has evolved toward DeltaV v14 and v15 with native HART 7 and WirelessHART integration, the KJ3241X1 series has entered a mature/end-of-active-production lifecycle. Emerson no longer manufactures new units under this part number family; however, the installed base remains extensive. DriveKNMS provides lifecycle extension support for all KJ3241X1 variants, including obsolete sub-revisions.

KJ3241X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Emerson DeltaV KJ3241X1 serial interface card family. Each entry reflects a distinct hardware revision or configuration variant:

KJ3241X1-BA1 12P2506X042: Redundant serial interface card, dual-path RS-232/RS-485, hot-standby failover, 8-channel.
KJ3241X1-BA1 12P2506X032: Redundant serial interface, earlier sub-revision, single-revision firmware baseline.
KJ3241X1-BA1 12P2506X052: Redundant serial interface, extended firmware revision, enhanced diagnostics.
KJ3241X1-AA1: Non-redundant serial interface card, single-path RS-232, 4-channel, early DeltaV S-series.
KJ3241X1-AA2: Non-redundant serial interface, RS-485 variant, 4-channel, Modbus RTU optimized.
KJ3241X1-BA2: Redundant serial interface, RS-422/RS-485 dual-protocol, 8-channel, improved EMI shielding.
KJ3241X1-CA1: High-density serial interface, 16-channel configuration, DeltaV MD-series controller compatible.
KJ3241X1-CA2: High-density serial interface, extended temperature variant, -20–70°C operating range.
KJ3241X1-DA1: Serial interface with integrated Modbus TCP gateway, Ethernet uplink port.
KJ3241X1-DA2: Serial-to-Ethernet bridge variant, dual Ethernet ports, VLAN-capable.
KJ3241X1-EA1: PROFIBUS DP serial adapter card, DeltaV PROFIBUS integration module.
KJ3241X1-EA2: PROFIBUS PA variant, intrinsically safe barrier integrated.
KJ3241X1-FA1: Foundation Fieldbus H1 serial interface, 2-segment capacity per card.
KJ3241X1-FA2: Foundation Fieldbus H1, 4-segment capacity, high-density fieldbus installations.
KJ3241X1-GA1: HART multiplexer interface card, 16-channel HART pass-through, DeltaV AMS integration.
KJ3241X1-GA2: HART multiplexer, extended channel count, 32-channel, large-loop installations.
KJ3241X1-HA1: DNP3 serial protocol interface, SCADA integration, substation automation.
KJ3241X1-HA2: DNP3 with IEC 60870-5-101 dual-protocol support, utility sector deployments.

Sourcing Hard-to-Find & Obsolete KJ3241X1 Parts

For obsolete sub-revisions including AA1, AA2, and early BA1 variants (12P2506X032 and below), DriveKNMS provides cross-reference verification to confirm hardware and firmware compatibility with the target DeltaV system version before dispatch review. All units are catalogued by hardware revision stamp, firmware version label, and physical inspection record. Customers operating DeltaV v7 through v13 installations — where direct module substitution with current-generation hardware is not feasible without controller upgrades — are the primary beneficiaries of this lifecycle extension inventory.

DriveKNMS also supports emergency urgent RFQ handling for critical process shutdowns, with air freight coordination to major industrial hubs in the Middle East, Southeast Asia, and Europe.

Quality Control for the KJ3241X1 Range

Each KJ3241X1 module processed by DriveKNMS undergoes a structured test protocol designed specifically for DeltaV serial interface card architecture:

Backplane Bus Integrity Test: Module is seated in a live DeltaV I/O carrier and polled via DeltaV Diagnostics to confirm backplane communication handshake and module identity response.
Serial Channel Loopback Test: Each serial channel (RS-232, RS-422, RS-485) is subjected to hardware loopback at the terminal block level, verifying transmit/receive signal integrity at 9600, 19200, and 115200 bps.
Redundancy Switchover Test (BA1 and above): Primary path is interrupted under live communication load; switchover latency to secondary path is measured and must be confirmed under 150 ms.
Firmware Version Verification: Firmware revision is read via DeltaV Diagnostics and cross-referenced against Emerson's compatibility matrix for the target DeltaV system version.
Thermal Stress Cycle: Module is cycled through 0–55°C over a 4-hour period under active communication load to screen for latent thermal faults in backplane connectors and serial driver ICs.
Visual and Mechanical Inspection: Connector pins, backplane edge connector, and PCB surface are inspected under magnification for corrosion, mechanical damage, and solder joint integrity.
