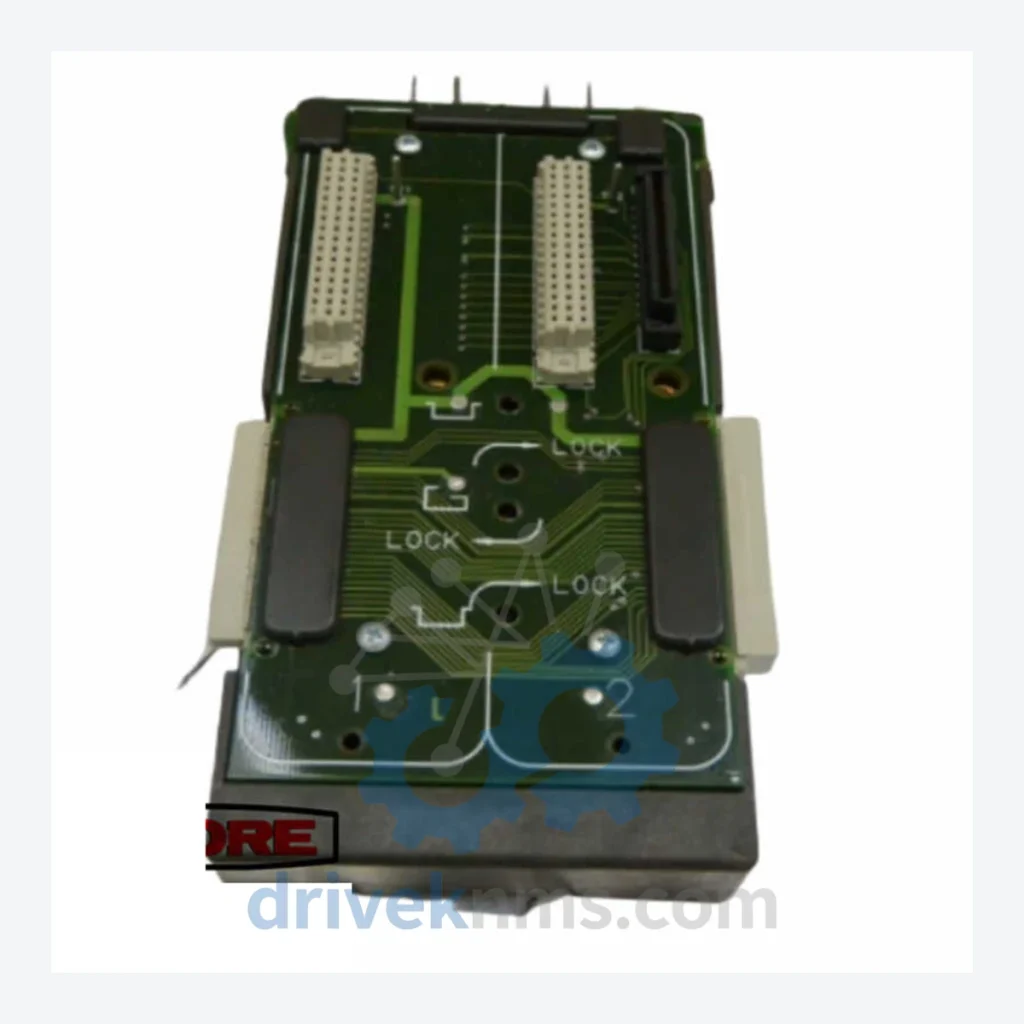

Emerson VE3051 DeltaV Modules: KJ4001X1-BA2 VE3051CO 12P1562X012

Technical Dossier

Product Details And Specifications

Emerson VE3051 Series Technical Notes

The Emerson VE3051 series, operating within the DeltaV distributed control system (DCS) platform, holds a dominant installed base across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, LNG terminals, and offshore oil and gas platforms. The DeltaV architecture, of which the VE3051 and associated KJ-series I/O modules form the backbone, is recognized as one of the most widely deployed process automation platforms in continuous manufacturing environments. Its modular, scalable design allows facilities to expand control capacity without replacing existing infrastructure, making it a long-term capital investment for plant operators. The KJ4001X1-BA2 specifically functions as a power controller module within this ecosystem, providing regulated DC power distribution to I/O subsystems mounted on DeltaV carrier assemblies.

The Evolution of VE3051 Architecture

The DeltaV platform was introduced by Fisher-Rosemount (later acquired by Emerson Electric) in the mid-1990s as a next-generation DCS designed around a distributed, node-based architecture rather than the centralized mainframe topology of earlier systems such as the RS3 and PROVOX. The VE3051 designation encompasses the controller and I/O hardware generation that matured through the DeltaV v7 through v14 software release cycles.

Early DeltaV hardware (Series 1) used proprietary backplane communication at fixed baud rates with limited hot-swap capability. The KJ-series modules introduced in subsequent hardware revisions incorporated improved HART pass-through, enhanced diagnostics via the DeltaV Diagnostics application, and full electronic marshalling compatibility when paired with CHARMS (Characterization Modules). Compatibility between hardware generations requires careful firmware version alignment; mixing Series 1 and Series 2 controllers on the same network segment without proper version management is a documented source of communication faults. As DeltaV has progressed toward v15 and the introduction of the DeltaV Distributed Matrix architecture, legacy VE3051-era hardware remains fully supported under Emerson's long-term lifecycle policy, though several module types have transitioned to the mature or RFQ availability review lifecycle phase, signaling the importance of maintaining adequate spare parts inventory.

VE3051 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson DeltaV KJ-series hardware platform associated with the VE3051 system generation:

KJ4001X1-BA2: DeltaV DC power supply module, 12 VDC regulated output for I/O carrier
KJ4001X1-BA1: DeltaV DC power supply module, earlier revision, carrier-mount form factor
KJ4001X1-BE1: Enhanced power controller with extended temperature tolerance rating
KJ4001X1-BK1: Power module variant with redundant input feed capability
KJ4001X1-CA1: DeltaV power conditioner, Series 2 hardware revision, CE-marked
KJ4001X1-CB1: Power supply module with integrated surge suppression circuitry
KJ4001X1-CH1: High-density carrier power module for 8-slot I/O enclosures
KJ4001X1-CG1: Power module, global voltage input range 100-240 VAC, DIN-rail mount
KJ4001X1-NA1: North America region power supply, UL-listed, 24 VDC output
KJ3002X1-BA1: DeltaV AI module, 8-channel 4-20 mA HART analog input, single-ended
KJ3002X1-BB1: DeltaV AI module, 8-channel HART, differential input configuration
KJ3001X1-BA1: DeltaV AO module, 8-channel 4-20 mA HART analog output
KJ3001X1-BB1: DeltaV AO module, 8-channel, enhanced HART revision 7 support
KJ3221X1-BA1: DeltaV DI module, 8-channel 24 VDC discrete input, NAMUR-compatible
KJ3222X1-BA1: DeltaV DO module, 8-channel 24 VDC discrete output, sourcing type
KJ3203X1-BA1: DeltaV serial communications module, RS-232/RS-485 multi-protocol

Quality Control for the VE3051 Range

VE3051-series modules present specific quality control challenges due to their backplane communication architecture and the sensitivity of HART signal conditioning circuitry to component-level degradation. DriveKNMS applies the following verification procedures to all KJ-series modules prior to shipment:
