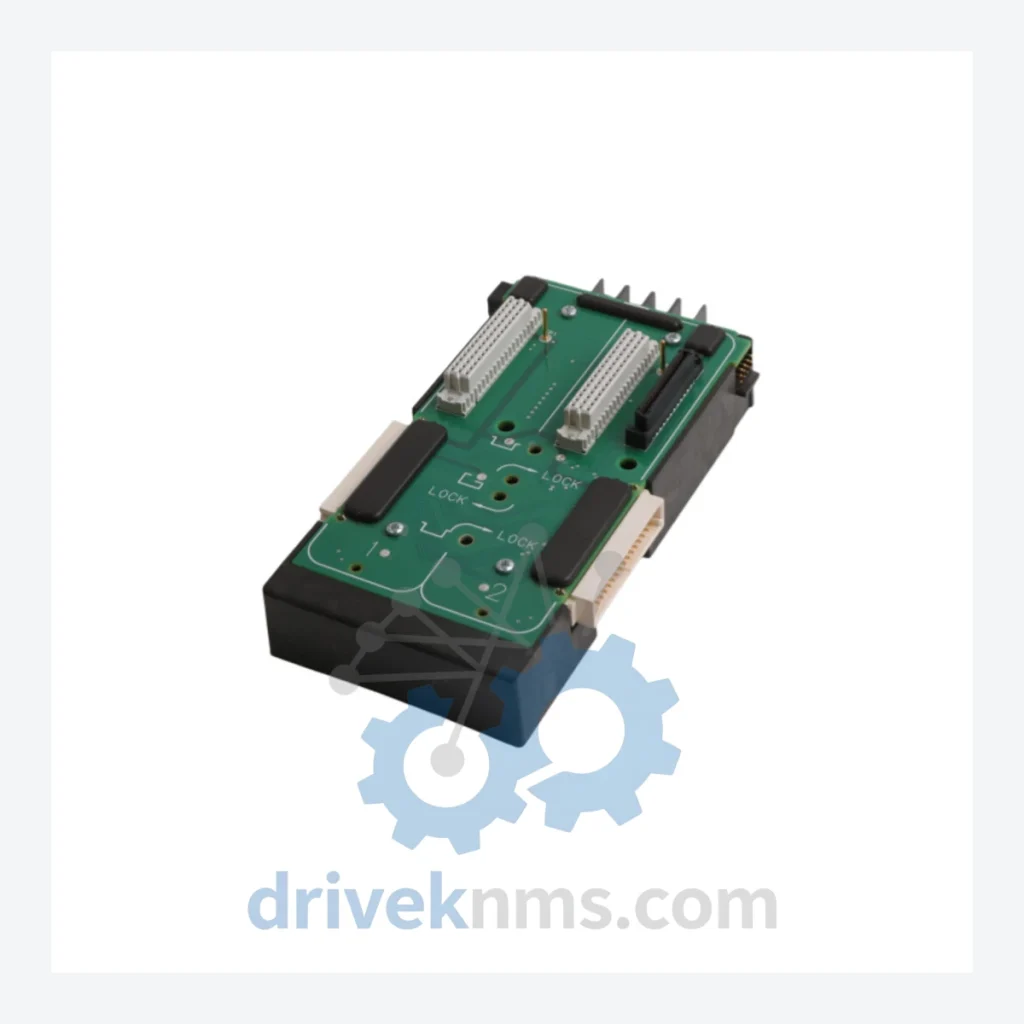

Emerson DeltaV KJ4001X1 Modules — KJ4001X1-BA3 12P3378X022

Technical Dossier

Product Details And Specifications

Emerson DeltaV KJ4001X1 Series: Comprehensive Module Range and Technical Overview

The Emerson DeltaV KJ4001X1 series represents the field-side termination infrastructure of the DeltaV S-series distributed control system (DCS). These terminal block assemblies serve as the physical interface between field instrument wiring and DeltaV I/O subsystem cards, and are deployed across the full spectrum of heavy process industries — including petroleum refining, petrochemical complexes, LNG terminals, nuclear power auxiliary systems, and continuous chemical manufacturing. The KJ4001X1 platform is engineered to mate with specific DeltaV I/O card types, providing marshalled or characterization-ready termination points that support HART, analog, and discrete signal types. Installations of this series are documented across facilities operated by ExxonMobil, SABIC, Shell, and comparable tier-1 process operators globally. The terminal block architecture eliminates the need for intermediate marshalling panels in many configurations, reducing wiring density and improving signal integrity at the I/O card interface.

The Evolution of KJ4001X1 Architecture

The KJ4001X1 terminal block family was introduced alongside the DeltaV S-series I/O subsystem as a standardized field-termination solution. Early DeltaV deployments (pre-2005) relied on conventional marshalling cabinets with discrete terminal strips; the KJ4001X1 architecture consolidated this into a card-mounted or carrier-mounted termination block that plugs directly into the I/O subsystem backplane carrier. This reduced installation labor and improved signal path consistency. As DeltaV evolved through the M-series and subsequently the Electronic Marshalling (CHARM) architecture introduced circa 2012, the KJ4001X1 series remained the standard termination solution for legacy S-series I/O cards. Sites that standardized on S-series I/O prior to 2010 continue to operate KJ4001X1 terminal blocks as the primary field interface, and these installations are not typically migrated to CHARM without a full I/O subsystem replacement. Compatibility is card-specific: each KJ4001X1 variant is matched to a defined DeltaV I/O card type (e.g., AI, AO, DI, DO, HART AI), and cross-substitution between variants is not supported. The 12P3378X022 assembly revision designates a specific manufacturing configuration within the KJ4001X1-BA3 variant, relevant for exact replacement sourcing.

KJ4001X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the Emerson DeltaV KJ4001X1 terminal block series, organized by I/O function type. Each unit is a field-termination assembly designed for direct integration with the corresponding DeltaV S-series I/O card.

Analog Input (AI) Termination Blocks

KJ4001X1-BA1: 8-channel AI terminal block for DeltaV 4–20 mA HART analog input cards, non-isolated configuration.
KJ4001X1-BA2: 8-channel AI terminal block, isolated signal configuration for high-noise environments.
KJ4001X1-BA3 12P3378X022: 8-channel AI terminal block assembly, revision X022; mates with DeltaV 8-channel HART AI card (KJ3001X1-BA1 and equivalents).
KJ4001X1-BA4: 16-channel AI terminal block for high-density analog input carrier configurations.
KJ4001X1-BA5: AI terminal block with integrated loop power supply distribution for 2-wire transmitter wiring.

Analog Output (AO) Termination Blocks

KJ4001X1-BB1: 8-channel AO terminal block for DeltaV 4–20 mA analog output cards, standard configuration.
KJ4001X1-BB2: 8-channel AO terminal block with HART pass-through capability for smart valve positioner communication.
KJ4001X1-BB3: AO terminal block, high-current output variant for valve actuator applications.

Discrete Input (DI) Termination Blocks

KJ4001X1-BC1: 8-channel DI terminal block for 24 VDC discrete input cards; supports dry contact and wet contact wiring.
KJ4001X1-BC2: 16-channel DI terminal block for high-density discrete input applications.
KJ4001X1-BC3: DI terminal block with integrated field power distribution for sourcing input configurations.
KJ4001X1-BC4: DI terminal block, 120 VAC input compatible variant for legacy field device integration.

Discrete Output (DO) Termination Blocks

KJ4001X1-BD1: 8-channel DO terminal block for 24 VDC discrete output cards; relay or solid-state output compatible.
KJ4001X1-BD2: 16-channel DO terminal block for high-density solenoid valve and indicator wiring.
KJ4001X1-BD3: DO terminal block with integrated fusing per channel for output circuit protection.

Serial / Communications Termination

KJ4001X1-BE1: RS-485 serial communications terminal block for DeltaV serial interface cards; supports Modbus RTU field device integration.
KJ4001X1-BE2: Foundation Fieldbus H1 termination block for DeltaV FF interface cards; includes integrated terminator resistor network.

Sourcing Hard-to-Find & Obsolete KJ4001X1 Parts

The KJ4001X1 series has entered the mature-to-declining phase of its product lifecycle. Emerson's primary development focus has shifted to the CHARM Electronic Marshalling architecture and the DeltaV IS (Intrinsically Safe) CHARM platform. As a result, KJ4001X1 terminal blocks are no longer featured in current Emerson new-project specifications, and OEM lead times for specific revision codes (such as 12P3378X022) have extended significantly or moved to order-on-demand status. DriveKNMS maintains a dedicated inventory of KJ4001X1 terminal block assemblies, including hard-to-source revision-specific variants, to support the installed base of DeltaV S-series systems operating under long-term maintenance contracts. Our sourcing network covers surplus, refurbished-to-spec, and new-old-stock (NOS) units. All units are cross-referenced against Emerson part number databases to verify revision compatibility before dispatch. For sites operating under ISA-18.2 or IEC 61511 functional safety frameworks, we provide documentation packages including test records and traceability data upon request.

Quality Control for the KJ4001X1 Range

KJ4001X1 terminal block assemblies present specific inspection requirements due to their role as the signal integrity boundary between field wiring and DeltaV I/O card inputs. DriveKNMS applies the following test protocol to all KJ4001X1 units processed through our facility: (1) Visual inspection of connector housing, terminal screw torque retention, and PCB solder joint integrity under 10× magnification. (2) Continuity verification across all terminal-to-backplane connector pin paths using a calibrated milliohm meter; acceptance threshold ≤ 0.5 Ω per path. (3) Isolation resistance test between adjacent channels and between signal paths and chassis ground; minimum 100 MΩ at 500 VDC. (4) Mechanical fit verification against a reference DeltaV I/O carrier to confirm correct seating, locking tab engagement, and connector alignment. (5) Revision code verification: the assembly revision (e.g., 12P3378X022) is confirmed against the unit label and internal PCB marking to ensure exact-match replacement compliance. Units that fail any test parameter are quarantined and not offered for sale. Test records are retained for a minimum of five years and are available to customers upon request.
