Emerson DeltaV KJ Series: Comprehensive Module Range and Technical Overview

The Emerson DeltaV KJ-series I/O subsystem is one of the most widely deployed distributed control architectures in global heavy industry. Installations span petrochemical complexes, nuclear power generation facilities, offshore oil platforms, LNG terminals, and pharmaceutical manufacturing plants across North America, Europe, and Asia-Pacific. The KJ4001X1-CA1 12P0623X072 is a Standard I/O carrier module within this ecosystem, providing the physical and electrical interface between field instruments and the DeltaV controller network. Its modular backplane design allows hot-swap replacement without process interruption, a critical requirement in continuous-operation facilities.

📩 Looking for a specific KJ4001X1 model? Send your list to: sale@driveknms.com

The Evolution of KJ Series Architecture

The DeltaV KJ I/O series was introduced in the mid-1990s as Emerson’s response to the industry demand for scalable, fieldbus-compatible distributed I/O. The first-generation KJ modules operated on the DeltaV FOUNDATION Fieldbus H1 and HART protocol infrastructure, establishing a two-wire, multi-drop topology that reduced field wiring costs by up to 60% compared to conventional 4–20 mA point-to-point wiring.

The second-generation KJ architecture introduced Electronic Marshalling via the CHARM (Characterization Module) platform, decoupling I/O signal characterization from physical cabinet location. This eliminated the traditional marshalling cabinet and allowed signal-type changes without hardware rewiring. The KJ4001X1 carrier series bridges the legacy first-generation infrastructure with CHARM-compatible backplanes, making it a critical compatibility component in brownfield DeltaV upgrades.

In modern DeltaV S-series and DeltaV Distributed (DeltaV Live) deployments, the KJ series remains in active production support through Emerson’s lifecycle management program. However, several sub-variants have entered the mature/end-of-active-production phase, making third-party sourcing from qualified distributors such as DriveKNMS essential for long-term maintenance contracts.

KJ4001X1 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified KJ4001X1 carrier and associated DeltaV KJ I/O module range. Each entry reflects a distinct hardware configuration within the DeltaV I/O subsystem.

Carrier & Backplane Modules

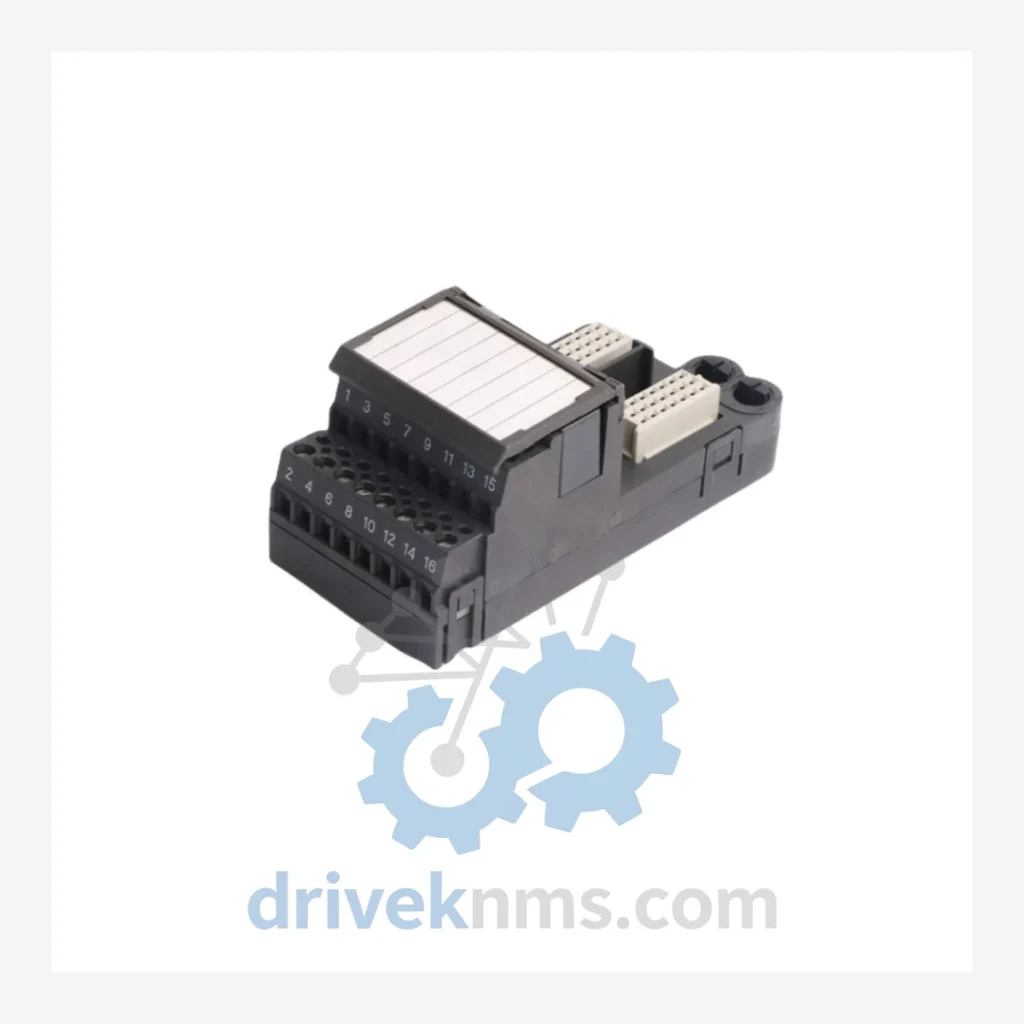

• KJ4001X1-CA1 12P0623X072: Standard 8-channel I/O carrier, DeltaV CHARM-compatible backplane interface, horizontal mount.
• KJ4001X1-BA1: Standard I/O carrier, vertical mount variant, compatible with DeltaV S-series controllers.
• KJ4001X1-DA1: Extended I/O carrier with redundant power bus, for SIL-rated loop applications.

Analog Input (AI) Modules

• KJ3002X1-BA1: 8-channel AI module, 4–20 mA HART, 16-bit resolution, loop-powered.
• KJ3002X1-CA1: 8-channel AI module, HART 7 compliant, enhanced diagnostics, intrinsically safe barrier compatible.
• KJ3221X1-BA1: 4-channel AI, thermocouple/RTD input, cold junction compensation, DIN rail mount.
• KJ3221X1-CA1: 4-channel AI, thermocouple/RTD, extended temperature range (-40°C to +70°C).

Analog Output (AO) Modules

• KJ3203X1-BA1: 8-channel AO, 4–20 mA HART, 16-bit DAC, short-circuit protected.
• KJ3203X1-CA1: 8-channel AO, HART 7, with loop integrity monitoring and open-wire detection.

Digital Input (DI) Modules

• KJ1501X1-BA1: 8-channel DI, 24 VDC, dry contact and wet contact configurable.
• KJ1501X1-CA1: 8-channel DI, 120 VAC input, optically isolated, surge protected.
• KJ1501X1-DA1: 16-channel DI, 24 VDC, high-density, for valve position feedback applications.

Digital Output (DO) Modules

• KJ1601X1-BA1: 8-channel DO, 24 VDC, 0.5 A per channel, solid-state relay output.
• KJ1601X1-CA1: 8-channel DO, 120/240 VAC, electromechanical relay, 2 A per channel.

Communication & Controller Modules

• KJ2003X1-BA1: DeltaV FOUNDATION Fieldbus H1 interface module, 2-segment, 16 devices per segment.
• KJ2003X1-CA1: PROFIBUS DP interface module, 12 Mbps, master/slave configurable.
• KJ2005X1-BA1: DeltaV controller module, MD-Plus class, 750 I/O capacity, redundancy-ready.

Sourcing Hard-to-Find & Obsolete KJ4001X1 Parts

DriveKNMS maintains a dedicated inventory program for DeltaV KJ-series modules that have entered end-of-active-production or limited-availability status. For facilities operating legacy DeltaV Version 9.x through 14.x systems, the KJ4001X1 carrier and its associated I/O modules represent a critical spare parts category. Emerson’s standard lifecycle policy provides 10 years of post-discontinuation parts support; however, actual market availability frequently drops below acceptable safety stock levels within 5–7 years of discontinuation.

DriveKNMS sources KJ4001X1-CA1 12P0623X072 and related modules through a verified global supply chain that includes factory-surplus channels, decommissioned plant buybacks, and authorized secondary market partners. All units are subject to full functional testing prior to dispatch. For customers requiring long-term maintenance agreements (LTMAs) covering 3–10 year horizons, DriveKNMS offers consignment stocking arrangements with guaranteed response times.

Quality Control for the KJ4001X1 Range

The KJ4001X1 carrier and associated DeltaV I/O modules present specific quality verification challenges due to their integrated backplane bus architecture and HART communication stack. DriveKNMS applies the following test protocol to all KJ-series units:

• Backplane Bus Integrity Test: Each carrier is connected to a live DeltaV test rack running DeltaV v13.3 or v14.LTS. Bus communication is verified at full I/O load for a minimum of 4 hours.
• HART Communication Verification: AI and AO modules are tested with a Beamex MC6 or equivalent HART communicator to confirm HART 5/7 protocol compliance and device descriptor integrity.
• Analog Accuracy Calibration: All AI/AO channels are calibrated against a NIST-traceable reference standard. Tolerance: ±0.05% of full scale.
• Digital I/O Functional Test: DI/DO modules are cycled through 1,000 switching operations at rated voltage and current. Contact resistance is measured before and after cycling.
• Thermal Stress Screening: Modules are subjected to a 48-hour burn-in at 55°C to screen for infant mortality failures.
• Firmware Version Audit: Controller and communication modules are verified for firmware compatibility with the customer’s declared DeltaV system version.
