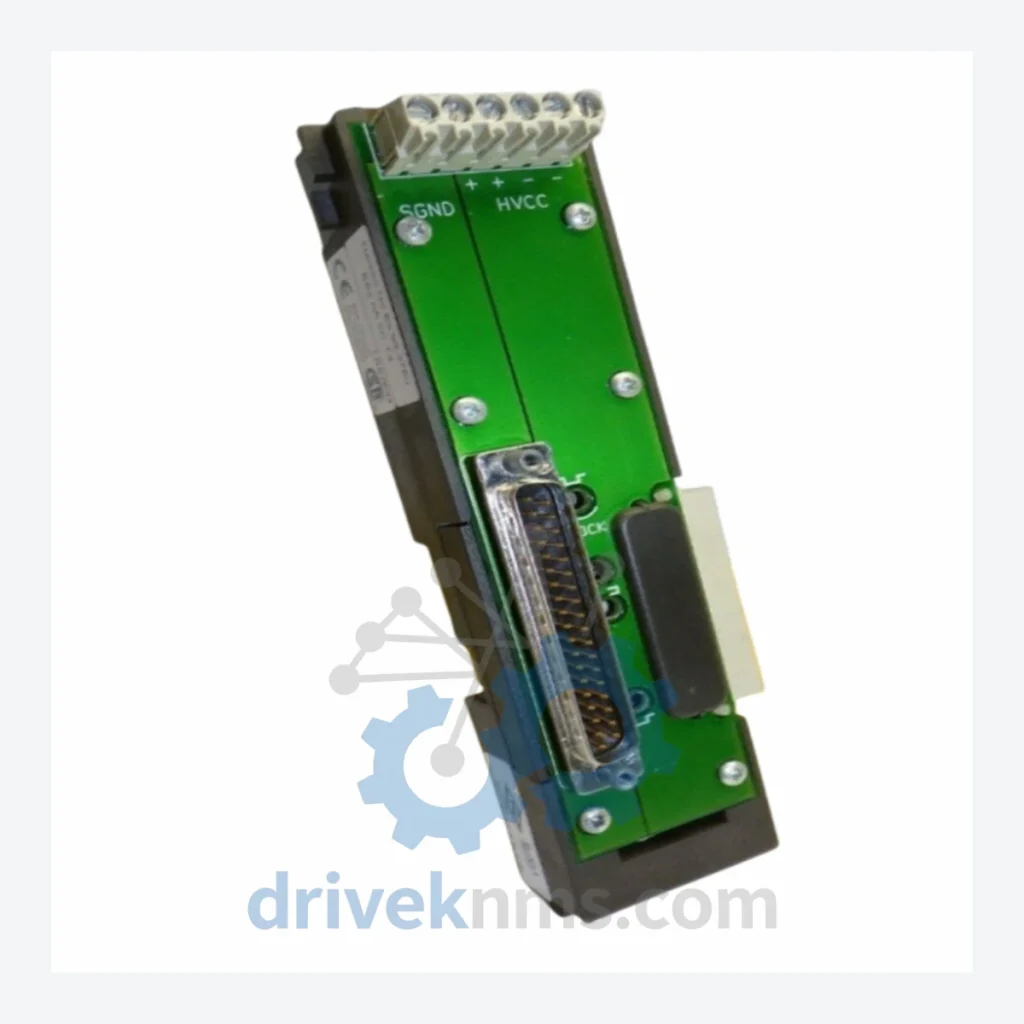

Emerson DeltaV KJ4010X1-BF1 12P0831X062 Modules

Technical Dossier

Product Details And Specifications

Emerson DeltaV Series Technical Notes

The Emerson DeltaV distributed control system (DCS) is deployed across critical process industries worldwide, including petrochemical complexes, nuclear power facilities, offshore platforms, and large-scale refinery operations. The KJ-series I/O subsystem forms the backbone of DeltaV field I/O architecture, providing deterministic scan cycles, redundant backplane communication, and HART pass-through capability on analog channels. Installations spanning hundreds of thousands of I/O points in facilities such as LNG terminals and continuous catalytic reforming units rely on KJ-series modules for uninterrupted process control. The KJ4010X1-BF1 12P0831X062 is a DeltaV I/O extender module used to expand the I/O subsystem bus, enabling additional I/O carriers to be connected beyond the base node capacity. Its role is infrastructure-level: without a functioning extender, entire I/O node segments become inaccessible to the controller.

The Evolution of DeltaV Architecture

Emerson introduced the DeltaV platform in 1996 as a scalable, object-oriented DCS designed to replace legacy proprietary systems such as the RS3 and PROVOX lines. The original S-series hardware used a proprietary DeltaV bus operating at 2 Mbit/s over shielded twisted pair, with I/O carriers accommodating up to eight single-width modules. The KJ-series module numbering convention encodes function: KJ3xxx denotes analog I/O, KJ4xxx denotes bus infrastructure and extender functions, and KJ2xxx covers discrete I/O. Early revisions (BA1, BB1) established the baseline electrical interface; subsequent revisions (BF1, BG1, CA1, CB1) introduced improved EMI shielding, extended temperature tolerance, and enhanced diagnostics accessible via AMS Device Manager. The transition from S-series to M-series controllers (MD Plus, MD Controller) maintained backward I/O compatibility, allowing KJ-series modules installed in the late 1990s to remain operational under current DeltaV v14 and v15 software releases. However, modules with revision codes predating BF1 may exhibit firmware incompatibilities with DeltaV v13.3 and later when CHARM I/O is mixed in the same node. The KJ4010X1-BF1 specifically addresses bus extension requirements introduced as node configurations grew beyond four carriers in large-scale expansions. Facilities that standardized on this extender revision during the 2005–2015 build-out period now face a mature/late-lifecycle procurement environment, as Emerson has transitioned new projects toward the CHARM (Characterization Module) architecture. Long-term maintenance support for KJ4010X1-BF1 and related extender SKUs therefore depends on the secondary market and specialist distributors.

DeltaV KJ-Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the core KJ-series module range. Each entry reflects a verified part number within the DeltaV I/O subsystem. Functional categories: AI = Analog Input, AO = Analog Output, DI = Discrete Input, DO = Discrete Output, EXT = Bus Extender/Infrastructure, PWR = Power.

• KJ4010X1-BF1 12P0831X062 [EXT]: DeltaV I/O bus extender module, extends subsystem bus to additional carriers beyond base node limit.
• KJ4010X1-BG1 [EXT]: Revised extender with enhanced EMI filtering; direct functional replacement for BF1 revision in most node configurations.
• KJ4001X1-BA1 [PWR]: DeltaV I/O subsystem power supply, 24 VDC input, provides regulated bus power to carrier backplane.
• KJ4001X1-BA2 [PWR]: Second-revision power supply module; improved thermal management over BA1 for high-ambient installations.
• KJ4001X1-CA1 [PWR]: Enhanced power supply supporting redundant power configurations on M-series nodes.
• KJ4001X1-CB1 [PWR]: Current-revision power supply; compatible with DeltaV v13 and later controller firmware.
• KJ3001X1-BA1 [AI]: 8-channel analog input, 4–20 mA with HART, single-ended, standard density.
• KJ3002X1-BG1 [AI]: 8-channel analog input with enhanced HART diagnostics; supports DeltaV AMS integration.
• KJ3221X1-BA1 [AO]: 8-channel analog output, 4–20 mA with HART, loop-powered field devices.
• KJ3222X1-BA1 [AO]: 8-channel analog output, voltage output option, 0–10 VDC range.
• KJ3241X1-BA1 [AI]: 8-channel thermocouple/RTD input module, multi-sensor type selectable per channel.
• KJ3242X1-BA1 [AI]: 8-channel RTD input, 3-wire and 4-wire configurations, high-accuracy process temperature measurement.
• KJ2003X1-BA1 [DI]: 8-channel discrete input, 24 VDC, dry contact and wet contact selectable.
• KJ2005X1-MQ1 [DI]: 8-channel discrete input with SOE (Sequence of Events) timestamping, 1 ms resolution.
• KJ3101X1-BB1 [AI]: 8-channel analog input, intrinsically safe (IS) rated, ATEX/IECEx Zone 1 applications.
• KJ3203X1-BA1 [AO]: 8-channel analog output, intrinsically safe, for hazardous area field devices.
• KJ2001X1-BA1 [DO]: 8-channel discrete output, 24 VDC sourcing, solid-state switching.
• KJ2002X1-BA1 [DO]: 8-channel discrete output, relay contact, 120/240 VAC rated for motor starter and valve actuator applications.
