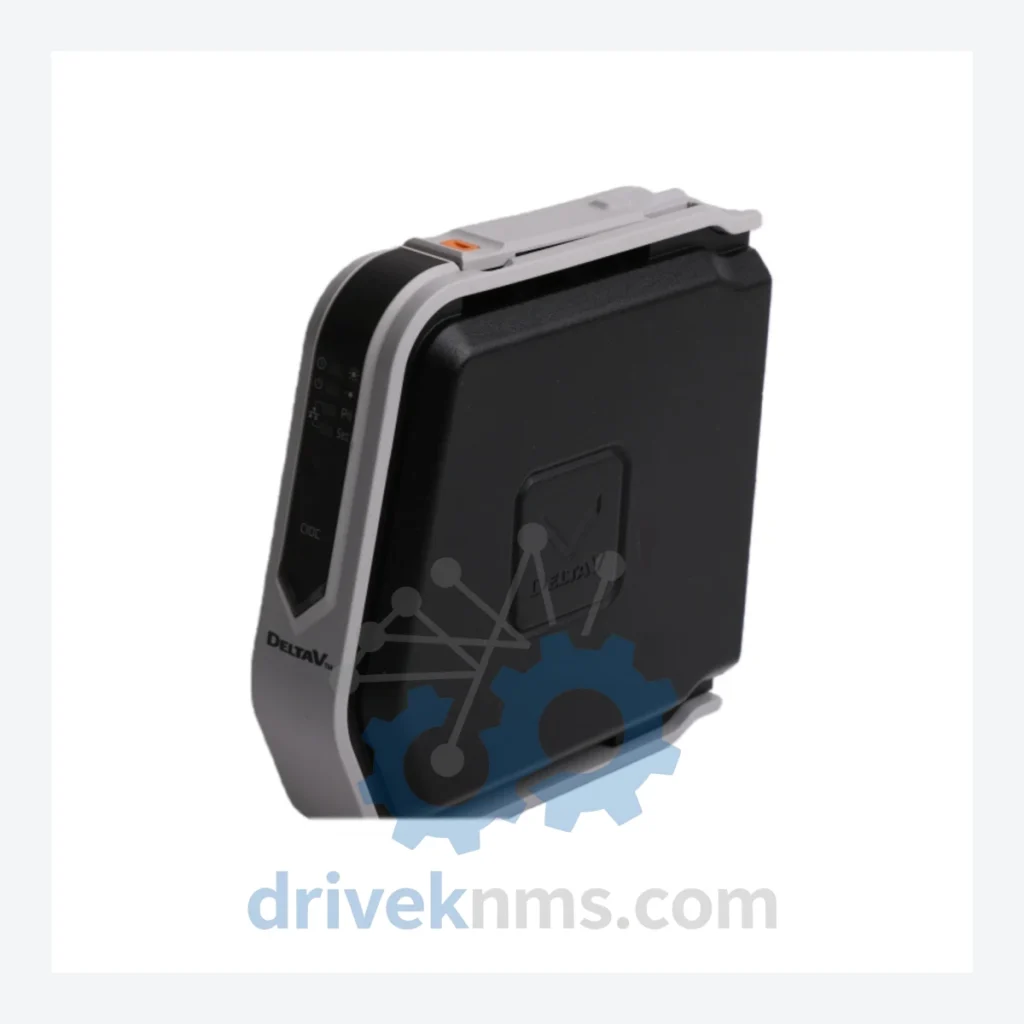

Emerson KL2101X1-BB1 CHARM I/O Card – Obsolete DeltaV Spare Part

Technical Dossier

Product Details And Specifications

Emerson KL2101X1-BB1 CHARM I/O Card – Obsolete DeltaV Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The DeltaV CHARM architecture was designed to give process plants flexible, field-configurable I/O without the rigidity of traditional marshalling cabinets. The KL2101X1-BB1 CHARM I/O Card sits at the physical interface between field instruments and the DeltaV controller — it is not a peripheral. It is load-bearing infrastructure.

When Emerson discontinues a CHARM card variant, the installed base does not disappear. Thousands of DeltaV systems worldwide continue to run on hardware that is no longer in production. The options available to a plant manager at that point are narrow: source the original part from the secondary market, undertake a partial I/O migration (expensive, disruptive, requires re-validation), or accept the risk of running without a cold spare.

Plants that have extended their DeltaV asset life by 5 to 10 years beyond OEM support windows share a common strategy: they treat critical I/O cards as consumables with a defined replenishment cycle, not as permanent fixtures. A structured cold-spare program — typically two to three units per card type per facility — eliminates the single point of failure that forces emergency procurement at inflated prices or, worse, forces a capital project. The KL2101X1-BB1 is precisely the type of card that belongs in that program. Its role in the CHARM carrier is specific; no other card substitutes without engineering rework.

Condition & Reliability Assurance

Sourcing obsolete I/O cards from the secondary market carries real risk. DriveKNMS applies a five-step inspection protocol before any CHARM card is offered for sale:

• Visual and mechanical inspection: Connector pins, PCB surface, and housing are examined for physical damage, corrosion, and evidence of field abuse.
• Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in legacy I/O hardware. Each unit is inspected for bulging, leakage, and ESR deviation.
• Pin and contact integrity: Backplane connector pins are checked for oxidation, bending, and contact resistance. Corroded contacts are the second most common cause of intermittent faults in legacy CHARM cards.
• Firmware and label verification: Where accessible, firmware revision markings are cross-referenced against known production runs to confirm authenticity and revision consistency.
• Functional pre-shipment check: Units are powered and checked for basic operational response before dispatch.

Units are classified as New Surplus (unused, original packaging where available) or Refurbished (inspected, tested, cleaned). Condition is stated explicitly in the order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The KL2101X1-BB1 installs directly into the existing CHARM I/O carrier without mechanical modification.
• No controller reprogramming required: CHARM characterization is stored at the module level. Replacing the I/O card does not require DeltaV controller database changes in standard configurations.
• Avoids engineering rework costs: A direct replacement eliminates the need for I/O remapping, loop re-commissioning, and the associated instrument engineer hours that a migration project would demand.
• Maintains system validation status: For regulated industries (pharmaceutical, food & beverage), replacing a like-for-like card under a documented change control procedure is substantially less disruptive than a platform migration requiring full revalidation.
• Preserves existing operator familiarity: No changes to HMI graphics, alarm configurations, or control strategies are required.

Extending Automation Asset Life: A Practical Framework

For plant management teams facing pressure to retire aging DeltaV infrastructure, the financial case for a structured spare parts program is straightforward. A DeltaV system with 500 to 2,000 I/O points represents a capital investment of $1M to $5M or more, including engineering, installation, and commissioning. The useful control life of that system, with proper hardware maintenance, routinely exceeds 20 years. OEM support withdrawal at year 10 or 12 does not change the physics of the system — it changes the procurement strategy required to sustain it.

The five actions that consistently extend DeltaV asset life by 5 to 10 years beyond OEM support withdrawal are: (1) conducting a full I/O card audit to identify which card types are obsolete and what the installed quantity is per type; (2) establishing a minimum cold-spare holding of two units per obsolete card type; (3) sourcing spares while secondary market supply is still adequate — availability and price both deteriorate as installed base shrinks; (4) documenting card replacement procedures in the site maintenance management system so that any qualified instrument technician can execute a swap without specialist support; and (5) scheduling a biennial review of spare parts holdings against actual consumption and market availability.

The KL2101X1-BB1 is a card where secondary market supply exists today. That supply will not improve over time.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected against known OEM markings, label formats, and PCB characteristics. Certificates of conformance and inspection reports are available on request. We do not sell units that fail authentication checks.

Do you provide documentation?
Where available, original OEM documentation references are provided. DriveKNMS does not reproduce proprietary OEM manuals but can direct customers to publicly available resources.
