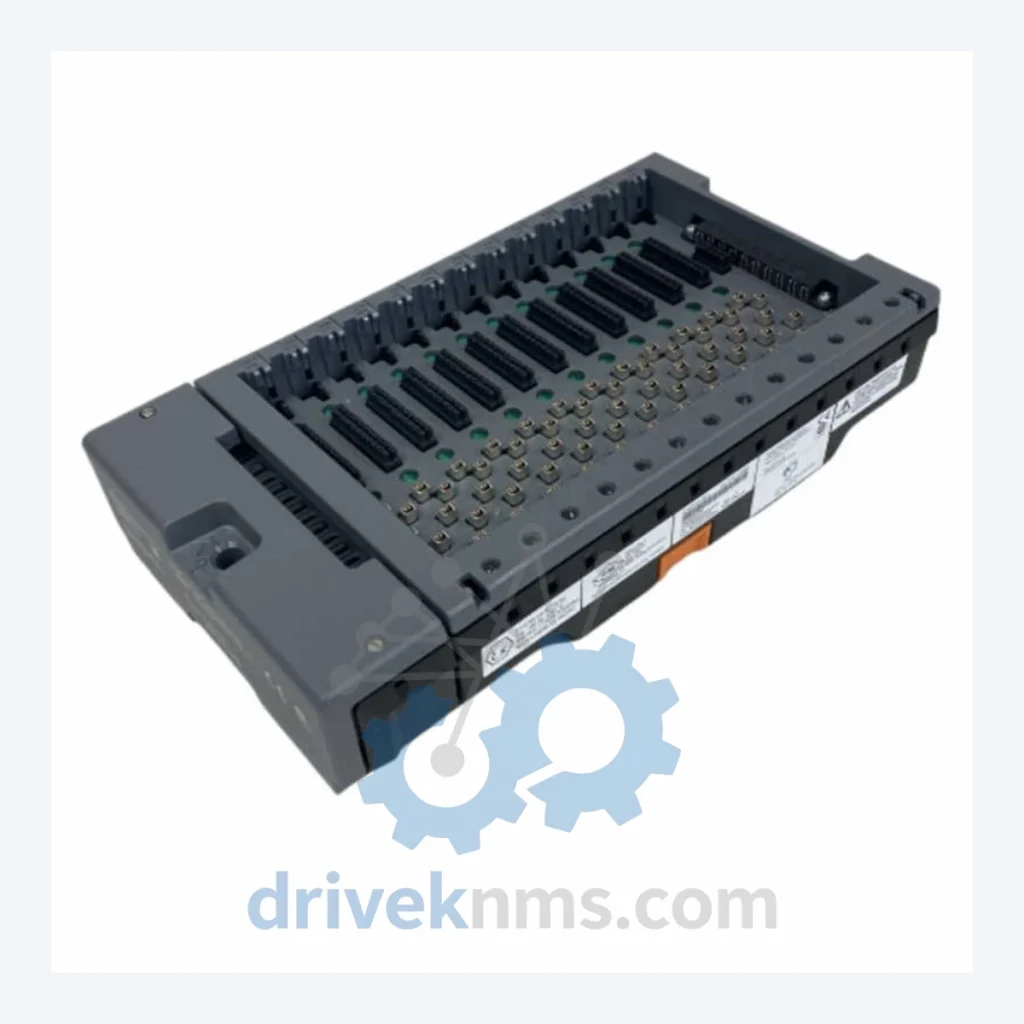

Emerson DeltaV KL4201X1-BA1 Module

Technical Dossier

Product Details And Specifications

Emerson DeltaV Series Technical Notes

The Emerson DeltaV distributed control system (DCS) is deployed across the full spectrum of global heavy industry, including petrochemical complexes, nuclear power generation facilities, offshore oil platforms, and large-scale refinery operations. The DeltaV platform is recognized for its scalable architecture, deterministic I/O subsystem, and native integration with FOUNDATION Fieldbus, HART, and Profibus protocols. The KL-series and KJ-series I/O subsystems form the backbone of DeltaV installations worldwide, providing the physical interface layer between field instrumentation and the DeltaV controller network. The KL4201X1-BA1 is a base plate module within this ecosystem, providing the mechanical and electrical mounting infrastructure for DeltaV I/O cards in both greenfield and brownfield installations.

The Evolution of DeltaV Architecture

The DeltaV system was introduced by Fisher-Rosemount (later acquired by Emerson Electric) in 1996 as a next-generation DCS designed around a Windows-based engineering environment and a modular, scalable I/O architecture. The original S-series hardware established the KJ-series I/O card form factor, which remains the dominant hardware standard across installed DeltaV bases globally. The M-series controller generation introduced enhanced processing throughput and redundancy options, while the KL-series base plates were developed to support higher-density I/O configurations in space-constrained panel environments. The transition from S-series to M-series and subsequently to the DeltaV SIS (Safety Instrumented System) platform introduced new backplane bus standards, creating compatibility boundaries that require careful management during system upgrades. Many KJ-series and KL-series modules are now classified as mature or end-of-life by Emerson, making third-party spare parts sourcing a critical operational requirement for facilities committed to long-term DeltaV platform continuity. DriveKNMS maintains inventory of both active and discontinued DeltaV I/O modules to support lifecycle extension programs.

DeltaV Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Emerson DeltaV I/O and controller subsystem. Each entry is classified by functional category.

Base Plates & Carrier Hardware

• KL4201X1-BA1: 8-slot I/O base plate for DeltaV KJ-series modules, DIN-rail mount
• KJ3222X1-BA1: 2-wide carrier assembly for redundant I/O module pairs
• KJ3221X1-BA1: Single-wide I/O carrier, standard backplane bus interface

Analog Input (AI) Modules

• KJ2003X1-BA1: 8-channel 4–20 mA HART analog input module
• KJ2003X1-BK1: 8-channel HART AI module, extended temperature rating
• KJ2201X1-BA1: 4-channel RTD/thermocouple analog input, multi-sensor type

Analog Output (AO) Modules

• KJ2005X1-MQ1: 8-channel 4–20 mA HART analog output module
• KJ3202X1-BA1: 4-channel analog output with HART pass-through capability

Digital Input (DI) Modules

• KJ3001X1-BG1: 8-channel 24 VDC digital input, isolated, SOE-capable
• KJ3243X1-BA1: 16-channel 24 VDC digital input module, high-density

Digital Output (DO) Modules

• KJ3204X1-BA1: 8-channel 24 VDC digital output, sourcing type

Controller & CPU Modules

• KJ4001X1-CA1: DeltaV M-series controller module, standard processing
• KJ4001X1-CB1: DeltaV M-series controller module, enhanced memory configuration
• KJ1501X1-BC1: DeltaV workstation interface card, PCI bus

Power Supply & Infrastructure

• SE4006S2T2B6: DeltaV power supply module, 24 VDC output, redundancy-capable
• VE4035S2B1: DeltaV I/O power conditioner and bus termination assembly

Quality Control for the DeltaV Range

DeltaV I/O modules and base plates present specific quality control challenges due to their reliance on proprietary backplane bus protocols and multi-layer PCB assemblies. DriveKNMS applies a structured test protocol to all DeltaV hardware prior to shipment. Base plates such as the KL4201X1-BA1 are inspected for backplane connector integrity, slot alignment, and bus termination continuity. I/O modules are powered in a live DeltaV test rack and verified for correct device recognition, channel-level signal response, and HART communication pass-through where applicable. Controller modules undergo firmware version verification and memory integrity checks. All tested units are assigned a unique test record and shipped with documentation confirming test date and pass criteria. Units that fail any test stage are quarantined and not returned to inventory.
