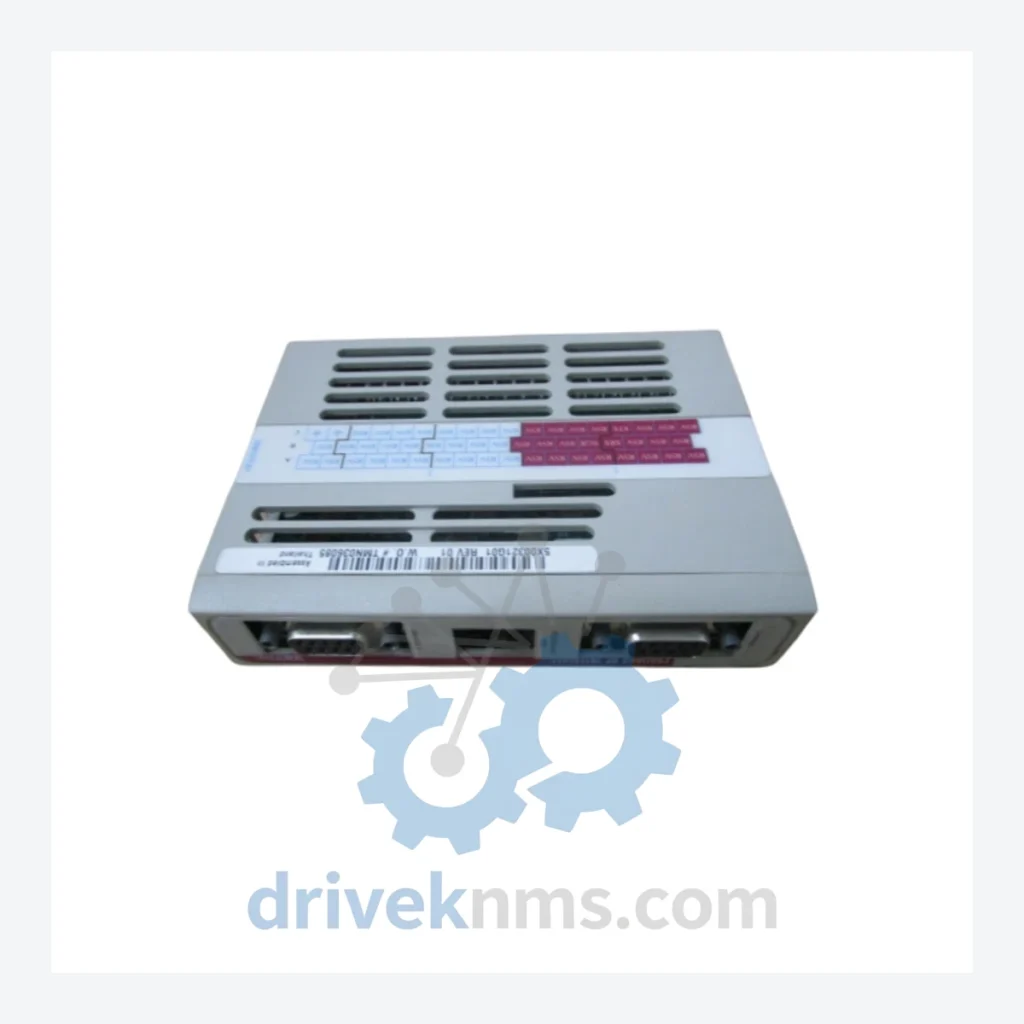

Emerson Ovation 5X00321G01 Profibus DP Interface Card

Technical Dossier

Product Details And Specifications

Emerson Ovation Series: Comprehensive Module Range and Technical Overview

The Emerson Ovation Distributed Control System (DCS) is one of the most widely deployed process automation platforms in global heavy industry. Installed across coal-fired and nuclear power plants, petroleum refineries, chemical processing facilities, and pulp & paper mills, the Ovation platform is engineered for continuous, high-availability operation in environments where unplanned downtime carries significant financial and safety consequences. The 5X00321G01 Profibus DP Interface Card is a field communication module within the Ovation I/O subsystem, enabling deterministic data exchange between the Ovation controller network and Profibus DP field devices including valve positioners, variable frequency drives, and intelligent transmitters. Its role in the Ovation architecture is to extend the system's native I/O reach into third-party Profibus segments without requiring a separate gateway controller.

The Evolution of Ovation Architecture

The Ovation DCS was introduced by Westinghouse Process Control in the mid-1990s and subsequently acquired by Emerson Electric in 1998. The platform evolved through three distinct architectural generations. The first generation (Ovation 1.x) used proprietary OCR400 and OCR1100 controllers with a dedicated Ovation Network based on 10BASE-T Ethernet, supporting basic analog and digital I/O modules. The second generation (Ovation 2.x and 3.x) introduced the OCR400 Enhanced and OCR1100 Enhanced controllers, expanded the I/O module library to include specialty communication adapters such as the 5X00321G01 Profibus DP card, and migrated the network backbone to 100BASE-TX Fast Ethernet with redundant ring topology. The third generation (Ovation 3.5 and later) introduced the OCR1100 Enhanced II and the transition toward IEC 61850 and OPC UA integration, while maintaining backward compatibility with legacy I/O modules from the 2.x era. The 5X00321G01 was introduced during the second-generation phase and remains compatible with Ovation 3.x controller firmware, making it a long-lifecycle component still in active service at many sites. As the platform matures, procurement of replacement and spare units has shifted from OEM channels to specialist distributors capable of sourcing tested surplus and refurbished stock.

Ovation Full Catalog & Functionalities (SKU List)

The following SKUs represent verified Emerson Ovation modules across controller, I/O, communication, and power categories. Each entry reflects a distinct hardware function within the Ovation I/O subsystem.

Communication & Fieldbus Interface Modules

• 5X00321G01: Profibus DP master interface card for Ovation I/O drop; supports up to 125 slave devices per segment.
• 5X00070G01: DeviceNet communication interface module; connects Ovation to Allen-Bradley DeviceNet field device networks.
• 5X00119G01: FOUNDATION Fieldbus H1 interface card; supports 16 FF devices per segment with integrated power conditioner.
• 5X00300G01: Modbus RTU/TCP gateway module; bridges Ovation controller to legacy Modbus serial and Ethernet devices.
• 5X00106G01: HART multiplexer interface; enables HART pass-through communication for up to 16 HART-enabled analog channels.

Analog Input (AI) Modules

• 5X00047G01: 16-channel analog input module; 4–20 mA / 1–5 V DC; 16-bit resolution; HART-capable.
• 5X00047G02: 16-channel analog input module; thermocouple and RTD input variant; supports J, K, T, E, R, S, B types.
• 5X00047G03: 8-channel high-speed analog input; 1 ms scan rate; for turbine and compressor monitoring applications.
• 5X00206G01: 32-channel analog input multiplexer module; expands AI capacity within a single I/O drop.

Analog Output (AO) Modules

• 5X00048G01: 8-channel analog output module; 4–20 mA; 12-bit resolution; loop-powered with open-loop detection.
• 5X00048G02: 8-channel analog output module; voltage output variant; 0–10 V DC; for electro-pneumatic positioners.

Digital Input (DI) Modules

• 5X00049G01: 32-channel digital input module; 24 V DC; dry contact and wet contact configurable.
• 5X00049G02: 32-channel digital input module; 120 V AC input variant; for motor control center status monitoring.
• 5X00049G03: 16-channel high-density digital input; SOE (Sequence of Events) capable; 1 ms time-stamp resolution.

Digital Output (DO) Modules

• 5X00050G01: 16-channel digital output module; 24 V DC; solid-state relay output; 0.5 A per channel.
• 5X00050G02: 8-channel digital output module; 120/240 V AC relay output; for solenoid valve and motor starter control.

Controller & Processor Modules

• 5X00103G01: Ovation OCR400 Enhanced controller module; dual-redundant capable; 100BASE-TX Ethernet network interface.
• 5X00116G01: Ovation I/O drop controller (IODC); manages up to 8 I/O modules per drop; redundant power input.

Power Supply Modules

• 5X00095G01: Ovation I/O drop power supply; 24 V DC output; 10 A; redundant pair configuration supported.
• 5X00095G02: Ovation I/O drop power supply; 48 V DC output variant; for extended-distance field wiring applications.

Sourcing Hard-to-Find & Obsolete Ovation Parts

The Emerson Ovation platform entered its mature lifecycle phase in the early 2010s. While Emerson continues to provide software support and select hardware for current-generation Ovation 3.x systems, a significant portion of the installed base — particularly sites running Ovation 2.x hardware — relies on the secondary market for replacement modules. DriveKNMS maintains a dedicated inventory of tested Ovation spare parts, including communication interface cards such as the 5X00321G01, sourced from decommissioned plant equipment, controlled surplus channels, and authorized refurbishment programs. All units are inspected against original Emerson hardware specifications prior to dispatch. For plant operators managing long-term maintenance contracts on Ovation-equipped facilities, DriveKNMS provides multi-year supply agreements, consignment stock arrangements, and emergency same-day dispatch for critical spares. Procurement teams requiring bill-of-materials (BOM) matching for scheduled outages are encouraged to submit complete parts lists for consolidated quotation.

Quality Control for the Ovation Range

Ovation I/O modules, including the 5X00321G01 Profibus DP Interface Card, incorporate a proprietary backplane bus architecture that requires functional validation beyond standard power-on testing. DriveKNMS applies a multi-stage quality control protocol to all Ovation modules: (1) Visual inspection for PCB damage, connector pin integrity, and conformal coating condition; (2) Backplane bus continuity test using Ovation-compatible test fixtures to verify all data, address, and power lines; (3) Firmware version identification and comparison against Emerson's published compatibility matrix for the target controller version; (4) Functional simulation test in a live Ovation I/O drop environment, verifying correct module enumeration, channel-level I/O response, and communication handshake with a Profibus DP slave simulator for interface cards; (5) 48-hour burn-in cycle at rated operating temperature (0–60°C) to screen for early-life component failures. Test records are retained and available upon request for regulated industries including nuclear power and pharmaceutical manufacturing.
