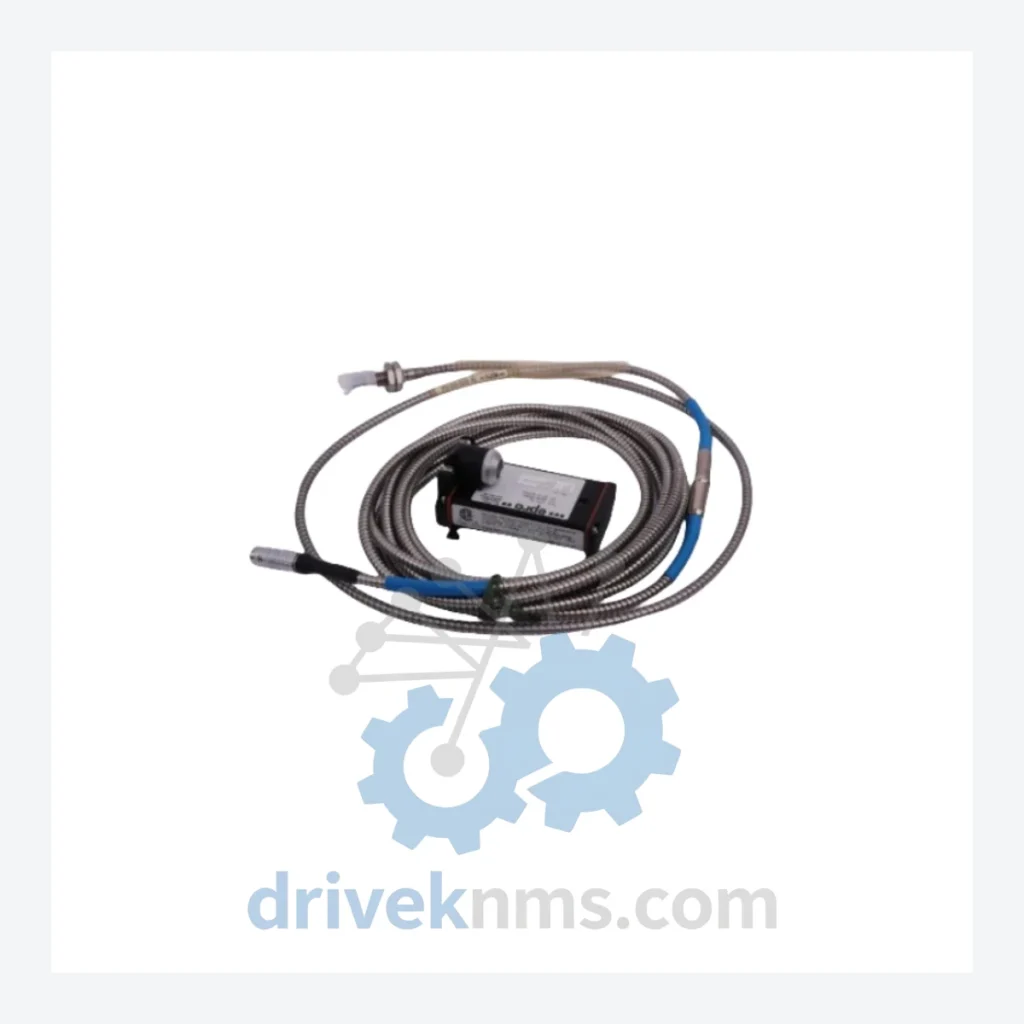

Emerson PR6423 Modules – PR6423/010-040 CON021 Eddy Current Displacement Transducer

Technical Dossier

Product Details And Specifications

Emerson PR6423 Series Technical Notes

The Emerson (formerly Bently Nevada) PR6423 series represents one of the most widely deployed eddy current displacement transducer families in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and large-scale refineries, the PR6423 series functions as the primary non-contact sensing element within Bently Nevada 3300 and 3500 series vibration monitoring systems. Its role is to measure shaft radial vibration, axial position, differential expansion, and eccentricity — parameters that are critical to the continuous protection of rotating machinery including steam turbines, gas compressors, centrifugal pumps, and large electric motors. The PR6423 transducer operates on the eddy current principle: a high-frequency oscillating magnetic field is generated at the probe tip, and any conductive target surface within range induces eddy currents that alter the field impedance, producing a linear DC voltage output proportional to the gap distance. This measurement method is immune to oil contamination, pressure, and temperature variation within rated limits, making it the standard of choice for API 670-compliant machinery protection systems worldwide.

The Evolution of PR6423 Architecture

The PR6423 series was developed as part of Bently Nevada's second-generation eddy current transducer platform, succeeding the earlier 7200 series probes. The architecture is defined by a three-component system: the probe (PR6423/xxx), the extension cable (CON011/CON021/CON031), and the proximitor/driver (TK3E/TK3/TK5). Each component is matched by cable length and sensitivity factor (V/mm or V/mil), and substitution of mismatched components results in calibration error and system fault flags within the 3300/3500 monitor chassis.

Early PR6423 variants used a 5-meter standard cable configuration with 8 mm probe tip diameter, targeting 200 mil (5 mm) linear measurement range. As industrial installations demanded longer cable runs — particularly in large turbine halls and offshore modules — the series expanded to support 5 m, 9 m, and 15 m extension cable variants (CON011, CON021, CON031 respectively). The probe body evolved from early stainless steel housings to armored versions rated for high-pressure environments. Sensitivity standardization at -7.87 V/mm (200 mV/mil) became the dominant configuration, ensuring interoperability with Bently Nevada monitor cards across the 3300 XL, 3500/42M, and 3500/46M module families.

With Emerson's acquisition of Bently Nevada in 2002, the PR6423 series was integrated into the Emerson Reliability portfolio. The series is now in a mature/end-of-active-production phase for many configurations, with Emerson directing new installations toward the 330100 and 330130 series. However, the installed base of PR6423 systems in operating plants remains substantial, and replacement demand for maintenance and emergency spares continues across a multi-decade horizon.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked configurations within the PR6423 eddy current transducer family. Each entry reflects a specific probe length, cable extension, and connector configuration:

PR6423/000-040: 5 mm probe, 5 m cable, standard 200 mil range, -7.87 V/mm sensitivity, no extension cable.
PR6423/003-040: 5 mm probe tip, 3 m integral cable, standard sensitivity, direct-mount configuration.
PR6423/005-040: 5 mm probe, 5 m integral cable, -7.87 V/mm, general-purpose radial vibration measurement.
PR6423/010-040 CON021: 5 mm probe, 10 m total cable run with CON021 9 m extension cable, -7.87 V/mm sensitivity, standard API 670 configuration — the subject SKU of this listing.
PR6423/010-040 CON011: 5 mm probe, 10 m total run with CON011 5 m extension, suited for compact turbine enclosures.
PR6423/015-040: 5 mm probe, 15 m integral cable, long-run installation for large turbine halls.
PR6423/015-040 CON031: 5 mm probe with CON031 15 m extension cable, maximum standard cable length configuration.
PR6423/050-040: 5 mm probe, 50 m cable, specialized long-distance installation for remote bearing locations.
PR6423/100-040: 5 mm probe, 100 m cable run, used in large offshore and nuclear plant installations.
PR6423/000-030: 8 mm probe tip variant, 5 m cable, wider measurement range for large shaft diameters.
PR6423/005-030: 8 mm probe, 5 m integral cable, -7.87 V/mm, axial position and differential expansion measurement.
PR6423/010-030 CON021: 8 mm probe with 9 m CON021 extension, 10 m total, standard heavy-duty configuration.
PR6423/015-030 CON031: 8 mm probe with CON031 15 m extension, suited for large steam turbine axial measurement.
PR6423/050-030: 8 mm probe, 50 m cable, long-run axial position sensing in large power generation units.
PR6423/100-030: 8 mm probe, 100 m cable, maximum range configuration for nuclear and large refinery installations.
PR6423/000-010: 3 mm miniature probe, 5 m cable, used in compact high-speed machinery and small bearing housings.
PR6423/005-010: 3 mm probe, 5 m integral cable, -7.87 V/mm, suitable for small-bore compressor shaft monitoring.

Quality Control for the PR6423 Range

The PR6423 transducer system requires component-level validation that goes beyond simple continuity checks. DriveKNMS applies a multi-stage test protocol specific to eddy current transducer systems:

Gap voltage linearity test: Each probe is mounted in a calibrated fixture and the output voltage is measured at 0.25 mm increments across the full linear range (typically 0.25 mm to 2.25 mm for 5 mm probes). Deviation from the -7.87 V/mm nominal sensitivity must remain within ±1% across the linear zone.
Oscillator frequency verification: The integral oscillator circuit within the proximitor driver is checked at rated frequency (typically 1.0 MHz ±5%) using a calibrated frequency counter. Frequency drift indicates capacitor degradation or coil damage.
Cable impedance matching: Extension cables (CON011/CON021/CON031) are tested for characteristic impedance and continuity. Impedance mismatch between probe and extension cable introduces sensitivity error that cannot be corrected by monitor calibration.
Connector integrity inspection: MIL-spec connectors are inspected for pin corrosion, thread damage, and seal integrity. Connector failure is the most common field failure mode for PR6423 systems in high-humidity or offshore environments.
System-level functional test: Where possible, probe, extension cable, and proximitor are tested as a matched set against a rotating steel target to confirm end-to-end output within Bently Nevada 3500 monitor acceptance thresholds.
