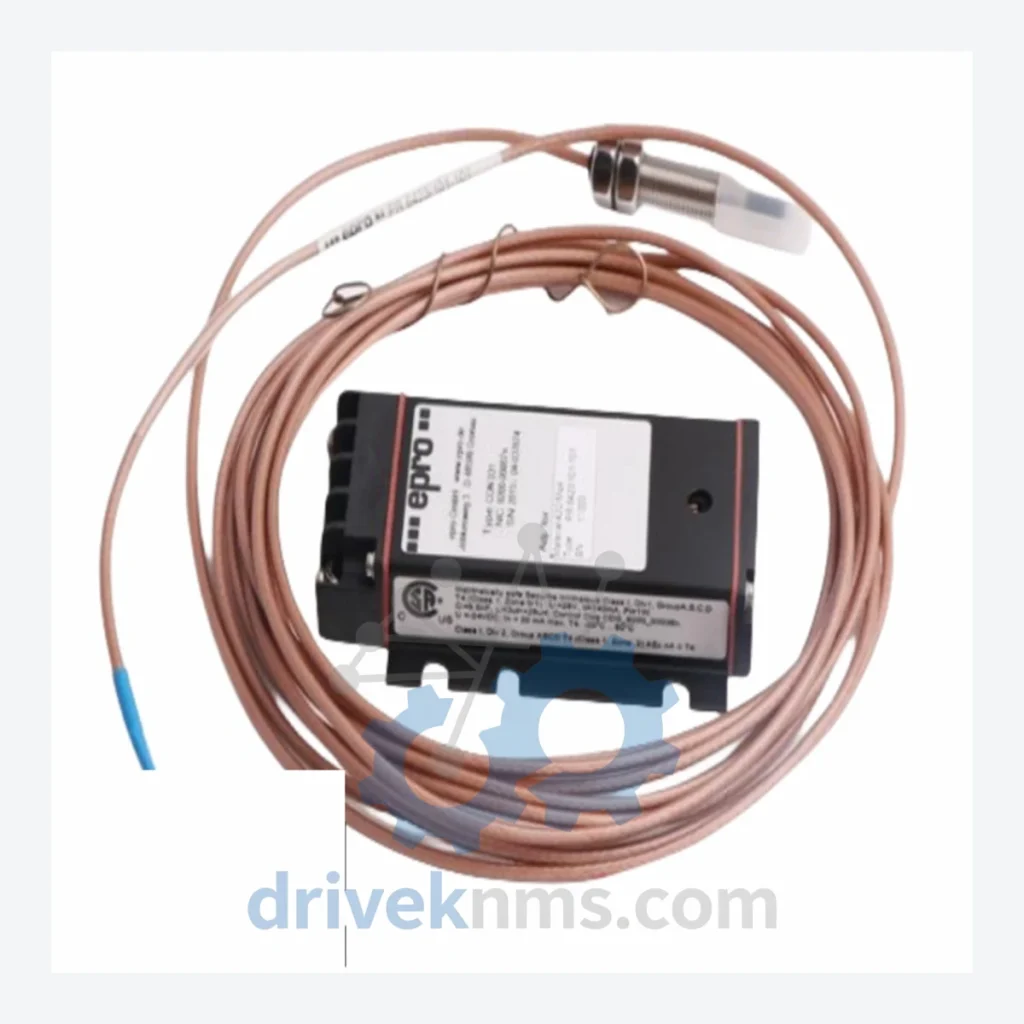

Emerson PR6423 Series Modules – PR6423/10R-040 CON021

Technical Dossier

Product Details And Specifications

Emerson PR6423 Series Technical Notes

The Emerson (Epro) PR6423 series is a family of eddy current displacement sensors widely deployed in rotating machinery protection systems across global heavy industry. These sensors form a core component of Emerson's machinery health monitoring infrastructure, with documented installations in petrochemical complexes, nuclear power stations, offshore platforms, and crude oil refineries. The PR6423 series operates on the non-contact eddy current measurement principle, providing continuous shaft displacement, vibration, and position data to connected condition monitoring systems such as the Bently Nevada 3500 and 3300 series rack systems. Its robust construction and compatibility with standard 8 mm and 11 mm probe formats have made it a long-term standard in turbine, compressor, and pump protection applications.

The Evolution of PR6423 Architecture

The PR6423 series was developed by Epro GmbH, subsequently integrated into Emerson's asset management portfolio following the acquisition of the Epro product line. Early variants of the PR6423 were designed for direct compatibility with the Bently Nevada 7200 series oscillator/demodulator systems, using a standardized coaxial cable interface and a 200 kHz carrier frequency. As industrial DCS platforms evolved through the 1990s and 2000s, the PR6423 series was progressively adapted to interface with 4–20 mA transmitter loops and digital fieldbus architectures.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Emerson PR6423 eddy current sensor family. Each entry reflects a distinct configuration of probe diameter, cable length, or connector type.
