Emerson PR6423 Series: Comprehensive Module Range and Technical Overview

The Emerson PR6423 series is a family of eddy-current proximity transducers and vibration sensor modules engineered for continuous machinery protection in heavy industrial environments. Deployed across petrochemical refineries, nuclear power stations, offshore platforms, and large-scale chemical processing facilities, the PR6423 series forms a core sensing layer within Emerson's Machinery Health Management infrastructure. These transducers interface directly with Emerson CSI, Bently Nevada 3500, and compatible DCS platforms to deliver real-time shaft displacement, vibration amplitude, and rotational speed data for rotating equipment including turbines, compressors, pumps, and gearboxes. The series is manufactured to API 670 standards and is rated for operation in hazardous area classifications including ATEX Zone 1 and IECEx environments.

The Evolution of PR6423 Architecture

The PR6423 series traces its lineage to Emerson's acquisition and integration of Entek IRD and the broader Machinery Health portfolio. Early-generation PR6423 transducers were designed for direct 4–20 mA loop-powered output with fixed sensitivity of 8 mV/µm (200 mV/mil), targeting turbomachinery OEM installations in the 1990s and early 2000s. The architecture relied on a two-wire coaxial cable connection between the probe tip, extension cable, and a dedicated signal conditioning driver (oscillator-demodulator), forming a three-component measurement chain.

Mid-generation variants introduced enhanced EMI shielding, extended temperature ratings (–50°C to +120°C probe tip), and improved linearity across the full measurement range. The CON021 driver/conditioner module, as used in the PR6423/11R-131 CON021, represents the standardized signal conditioning interface for this series, providing buffered output, gap voltage monitoring, and direct compatibility with Emerson AMS Machinery Manager and Bently Nevada 3500/40M monitor cards.

As the PR6423 series has entered its mature-to-declining lifecycle phase, Emerson's current recommended migration path leads toward the Bently Nevada SCOUT220 and 3500 Series platform with TK-series transducers. However, the installed base of PR6423 systems in legacy plants remains substantial, and direct replacement parts continue to be required for long-term asset maintenance programs (LTAP) and turnaround maintenance cycles.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Emerson PR6423 eddy-current transducer series. Models are classified by probe configuration, cable length, and conditioner type.

Proximity Probes (Standard Range)

• PR6423/00R-010: 5 mm probe, 1 m integral cable, standard sensitivity, general-purpose shaft displacement.
• PR6423/00R-030: 5 mm probe, 3 m integral cable, extended reach for deep bearing housings.
• PR6423/00R-060: 5 mm probe, 6 m integral cable, turbine pedestal installations.
• PR6423/10R-010: 8 mm probe, 1 m cable, higher gap range, suitable for large-shaft compressors.
• PR6423/10R-030: 8 mm probe, 3 m cable, standard compressor and pump monitoring.
• PR6423/10R-060: 8 mm probe, 6 m cable, long-run installations in large turbine halls.
• PR6423/11R-010: 8 mm probe, 1 m cable, ATEX/IECEx certified, hazardous area Zone 1.
• PR6423/11R-030: 8 mm probe, 3 m cable, ATEX Zone 1, petrochemical plant standard.
• PR6423/11R-060: 8 mm probe, 6 m cable, ATEX Zone 1, offshore and refinery long-run.

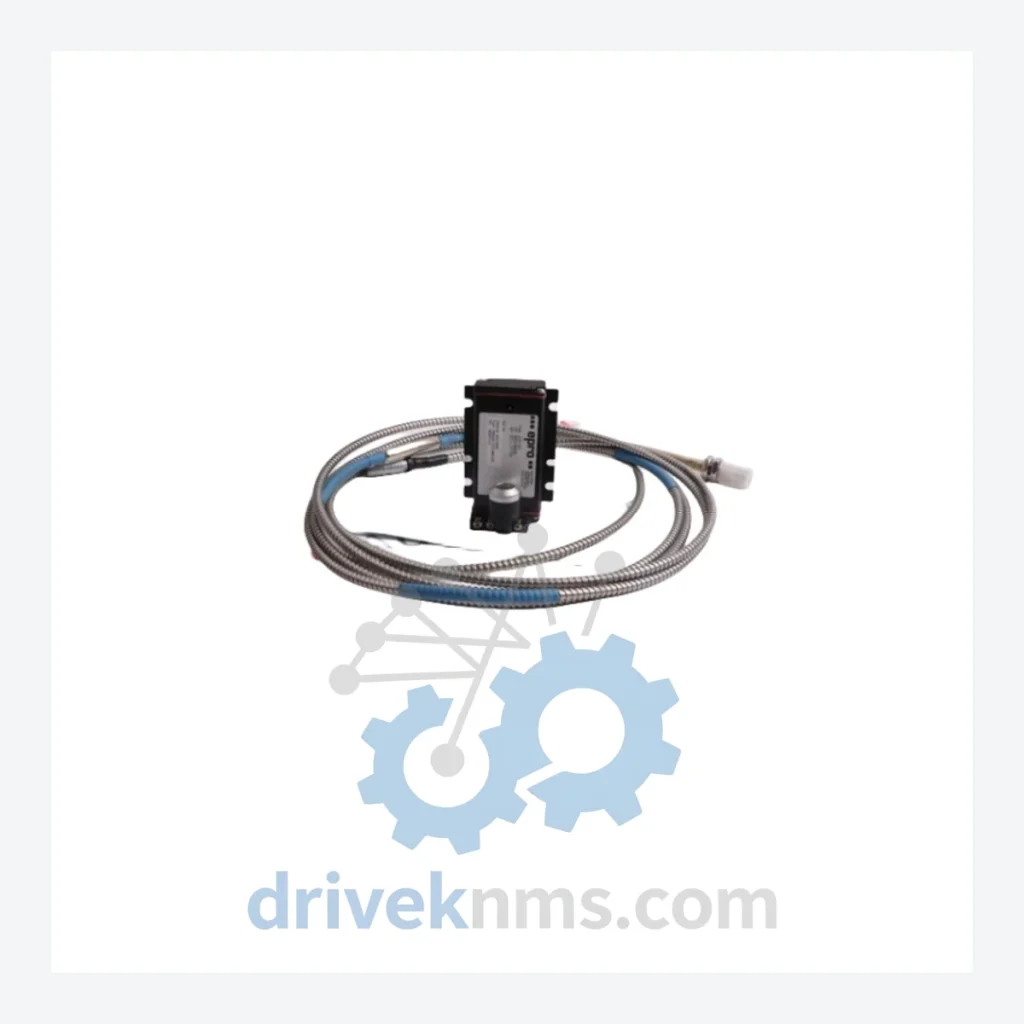

• PR6423/11R-131: 8 mm probe, 13.1 m total system cable, ATEX Zone 1, used with CON021 conditioner — this is the probe component of the PR6423/11R-131 CON021 assembly.

Signal Conditioning Drivers / Oscillator-Demodulators

• PR6423/11R-131 CON021: Complete transducer assembly — 8 mm ATEX probe + 13.1 m cable + CON021 driver module. Buffered output, –24 VDC supply, gap voltage: –10 VDC nominal.
• CON021: Standalone oscillator-demodulator conditioner, DIN-rail mount, compatible with all PR6423 8 mm probe variants.
• CON011: Earlier-generation conditioner, compatible with 5 mm PR6423 probes, 4–20 mA output option.
• CON031: Enhanced conditioner with dual-channel output, used in redundant monitoring configurations.
• PR6423/00R-010-H1: High-temperature variant, probe tip rated to +175°C, for steam turbine exhaust-end bearings.
• PR6423/10R-030-EX: Extended gap range variant (0–4 mm linear range), for large-diameter shafts exceeding 100 mm.

Sourcing Hard-to-Find & Obsolete PR6423 Parts

The PR6423 series is classified as a mature product line by Emerson, with several sub-variants formally discontinued. OEM lead times for remaining active SKUs can extend to 16–26 weeks due to low-volume production scheduling. DriveKNMS maintains a dedicated inventory of PR6423 probes, extension cables, and CON-series conditioner modules sourced from decommissioned plant equipment, authorized surplus channels, and verified third-party refurbishment programs.

For plants operating under long-term service agreements (LTSA) or preparing for scheduled turnarounds, DriveKNMS provides advance procurement and bonded warehousing of PR6423 assemblies. All obsolete and hard-to-find models — including discontinued cable lengths and legacy CON011 conditioners — are available for quotation. Typical lead time from DriveKNMS stock: 3–7 business days for in-stock items.

Quality Control for the PR6423 Range

Each PR6423 assembly processed by DriveKNMS undergoes a structured verification protocol specific to eddy-current transducer systems:

• Gap Voltage Calibration: Probe output is measured at defined air-gap increments (0.25 mm steps) against a certified target material (AISI 4140 steel) to verify linearity and sensitivity within ±1% of 8 mV/µm specification.
• Conditioner Output Verification: CON021 and CON011 units are bench-tested for DC output voltage, frequency response (10 kHz carrier), and supply current draw under load.
• Cable Integrity Test: Coaxial cable assemblies are tested for shield continuity, insulation resistance (>100 MΩ at 500 VDC), and capacitance per meter to confirm signal integrity over full cable length.
• ATEX Marking Inspection: Hazardous-area certified units are inspected for intact Ex markings, undamaged cable glands, and valid certification labels prior to dispatch.
• Functional System Test: Complete probe + cable + conditioner assemblies are tested as a matched system on a rotating test rig to confirm end-to-end output signal quality.
