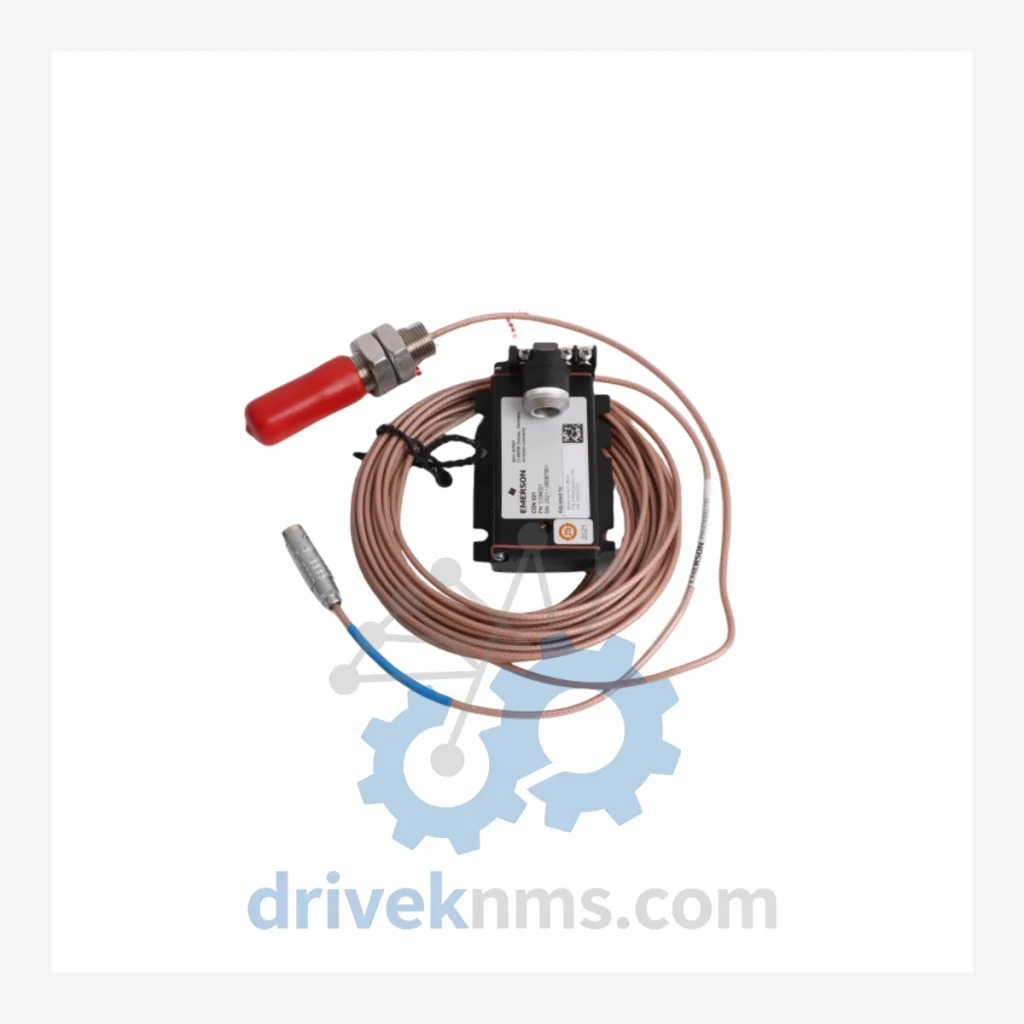

Emerson PR6424/002-130 CON021 Eddy Current Sensor – Obsolete Bently Nevada Spare Part

When a single proximity sensor fails in a Bently Nevada vibration monitoring system, the consequences extend far beyond the cost of the part itself. A forced shutdown of a turbine train, compressor, or critical rotating machine can cost a facility tens of thousands of dollars per hour in lost production. A full system migration away from the Bently Nevada 3300 XL or 3500 platform — driven solely by the unavailability of one sensor — routinely demands capital expenditure in the range of several hundred thousand to several million dollars, including engineering, rewiring, recalibration, and revalidation. DriveKNMS holds RFQ-reviewed sourcing status of the PR6424/002-130 CON021. This is not a catalog listing. If it is listed, it is on the shelf.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as sensitivity (mV/mil), linear range, and gap voltage are system-dependent and must be verified against the specific Proximitor driver in use. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

The Bently Nevada PR6424 proximity transducer system was the industry standard for shaft vibration and position monitoring on rotating machinery for decades. It is embedded in thousands of turbines, compressors, pumps, and gearboxes worldwide — many of which are still in active service and are expected to remain so for the next 10 to 20 years.

Emerson has discontinued the PR6424 series. Replacement with a current-generation system is not a simple swap. The 3300 XL and 3500 monitoring racks are calibrated to the specific sensitivity and gap characteristics of the PR6424 transducer chain. Substituting a different sensor family requires recalibration of the entire monitoring loop, revalidation of alarm and trip setpoints, and in many jurisdictions, re-certification under machinery protection standards such as API 670. The engineering cost alone frequently exceeds USD 50,000 per machine train.

The practical strategy for plant managers facing this situation is straightforward: maintain a controlled inventory of PR6424 series sensors and proximitors sufficient to cover the remaining operational life of the asset. A single spare sensor, properly stored, can defer a forced system upgrade by 3 to 5 years. A strategic buffer of 3 to 5 units per critical machine train provides a credible 10-year asset protection window at a fraction of the cost of a platform migration.

Condition & Reliability Assurance

Discontinued parts sourced outside the OEM supply chain carry inherent risk. DriveKNMS applies a 5-step inspection protocol to every PR6424 series unit before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Thread condition, cable jacket integrity, connector pin inspection. Any unit with physical damage to the sensing tip or connector body is rejected.
• Step 2 – Connector and Pin Corrosion Check: CON021 connector pins are inspected under magnification for oxidation, fretting corrosion, and contact resistance anomalies. Corroded pins are a primary failure mode in stored proximity sensors.
• Step 3 – Cable Continuity and Insulation Test: Full electrical continuity check on the integral cable. Insulation resistance is verified to confirm no moisture ingress or jacket degradation.
• Step 4 – Coil Resistance Verification: The sensor coil resistance is measured and compared against known-good reference values for the PR6424/002 series. Deviation indicates internal coil damage.
• Step 5 – Documentation and Traceability: Each unit is documented with inspection results and assigned a DriveKNMS lot reference for post-sale traceability.

Key Features for System Maintenance

• Drop-in replacement: The PR6424/002-130 CON021 is a direct physical and electrical replacement for any existing PR6424/002-130 CON021 installation. No modification to the monitoring rack, no recalibration of the Proximitor driver, and no changes to alarm or trip setpoints are required when replacing like-for-like.
• No reprogramming required: The 3300 XL and 3500 series monitoring systems do not require firmware changes or configuration updates when a sensor is replaced with an identical part number.
• Avoids engineering reconstruction costs: A like-for-like sensor replacement eliminates the need for loop recalibration, setpoint revalidation, and API 670 re-certification — costs that can reach USD 50,000 to USD 150,000 per machine train when a non-identical replacement is used.
• Extends asset operational life: Maintaining a spare parts buffer for the PR6424 series is the lowest-cost mechanism available to defer a full vibration monitoring system upgrade. Each successful like-for-like replacement extends the asset's operational life without capital expenditure.

Q: How should long-term spare parts be stored?
A: PR6424 series sensors should be stored in a dry, temperature-stable environment (10°C to 40°C), away from strong magnetic fields. The CON021 connector should be capped when not in use to prevent pin oxidation. Inspect stored units annually for cable jacket condition.

Q: Is this part compatible with the Bently Nevada 3500 rack?
A: The PR6424 transducer series is compatible with the 3500 series monitoring system when used with the appropriate PR6426 Proximitor. Verify your existing Proximitor part number before ordering to confirm the complete transducer chain is matched.
