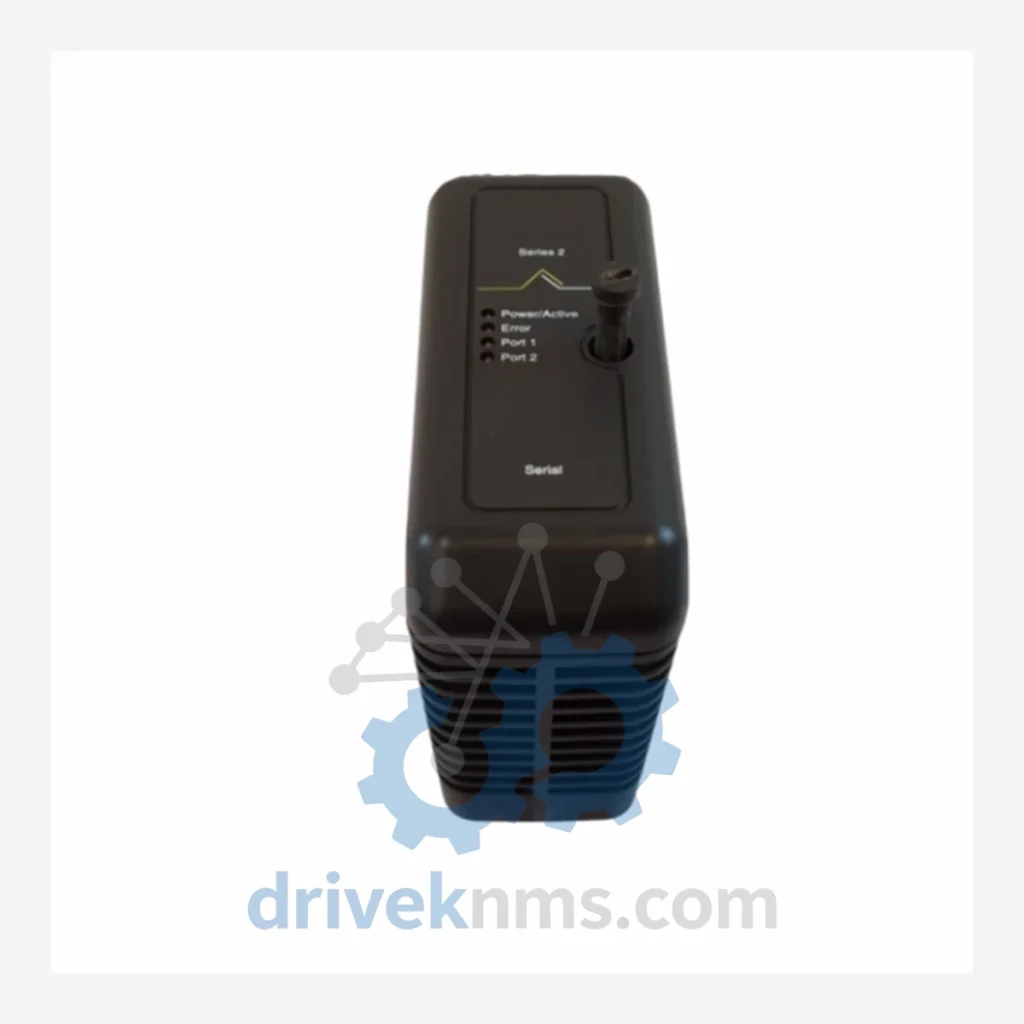

Emerson DeltaV S-Series Modules: SE4006P2 KJ3241X1-BA1 12P2506X062

Technical Dossier

Product Details And Specifications

Emerson DeltaV S-Series Technical Notes

The Emerson DeltaV S-Series I/O subsystem is a distributed control architecture deployed across the global process industries, including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical manufacturing plants. The S-Series platform defines the physical I/O layer of the DeltaV distributed control system (DCS), providing the signal conditioning, marshalling, and bus communication infrastructure between field instruments and the DeltaV controller network. Its modular backplane architecture supports hot-swap replacement, redundant power distribution, and FOUNDATION Fieldbus/HART integration — characteristics that have made it the reference standard for continuous process control in safety-critical environments.

The SE4006P2 KJ3241X1-BA1 12P2506X062 is an S-Series Interface Card that provides the physical and logical bridge between the DeltaV I/O subsystem backplane and the controller network. It manages bus arbitration, module addressing, and real-time data transfer across the S-bus backplane. This card is a critical single point of failure component; its lifecycle status and sourcing availability directly affect plant uptime.

The Evolution of DeltaV S-Series Architecture

The DeltaV S-Series I/O subsystem was introduced in the mid-1990s as part of Emerson's first-generation DeltaV DCS platform, designed to replace proprietary marshalling cabinets with a standardized, bus-based I/O architecture. The original S-Series used a parallel backplane with fixed-slot addressing, limiting scalability in large installations.

The second-generation S-Series introduced the KJ-series interface cards (KJ3241X1, KJ3222X1, KJ3221X1), which added redundant bus paths and improved HART pass-through capability. These cards became the dominant installed base across refineries commissioned between 2000 and 2012.

From approximately 2010 onward, Emerson began transitioning customers toward the DeltaV CHARMs (Characterization Modules) architecture, which eliminates the traditional marshalling cabinet entirely. However, the S-Series remains the active installed base at the majority of brownfield sites, and Emerson continues to supply S-Series spare parts under its lifecycle support program. Many SE40xx and KJ32xx components have entered the mature/end-of-active-production phase, making third-party sourcing from specialist distributors a primary procurement channel for maintenance teams.

DeltaV S-Series Full Catalog & Functionalities (SKU List)

Interface & Communication Cards

• SE4006P2 / KJ3241X1-BA1: S-Series interface card; manages S-bus backplane communication and module addressing.
• KJ3241X1-BA2: Revised revision of KJ3241X1-BA1; improved EMI shielding, same functional footprint.
• KJ3222X1-BA1: Redundant interface card for dual-bus S-Series configurations; used in high-availability loops.
• KJ3221X1-BA1: Single-bus interface card; standard non-redundant S-Series installations.
• SE3006: S-Series 6-slot carrier assembly; houses interface and I/O modules in a single backplane unit.
• SE3008: S-Series 8-slot carrier; extended capacity for high-density I/O marshalling.

Analog Input (AI) Modules

• SE4001S1 / KJ3002X1-BA1: 8-channel 4–20 mA HART AI module; standard process variable input for transmitters.
• SE4002S1 / KJ3002X1-BA2: 8-channel AI with enhanced HART diagnostics; supports Device Description (DD) library.
• SE4011S2 / KJ3003X1-BA1: 16-channel AI module; high-density analog input for large loop counts.
• SE4012S2 / KJ3003X1-BA2: 16-channel AI with redundant power feed; used in SIL-rated loops.

Analog Output (AO) Modules

• SE4003P1 / KJ3012X1-BA1: 8-channel 4–20 mA HART AO module; standard control valve and positioner output.
• SE4004P1 / KJ3012X1-BA2: 8-channel AO with loop-back diagnostics; detects open-loop and short-circuit faults.

Digital Input (DI) Modules

• SE4005P1 / KJ3022X1-BA1: 8-channel 24 VDC DI module; discrete status inputs from switches and solenoids.
• SE4501S2 / KJ3022X1-BA2: 16-channel DI module; high-density discrete input for motor control centers.

Digital Output (DO) Modules

• SE4502S2 / KJ3032X1-BA1: 8-channel 24 VDC DO module; relay-driven discrete outputs for on/off control.
• KJ3032X1-BA2: 8-channel DO with output readback; confirms actuator state via hardware feedback.

Power Supply & Carrier Components

• 12P2506X062: Power supply module for S-Series carrier; provides regulated DC bus voltage to backplane slots.
• KJ3204X1-BA1: Redundant power supply module; dual-feed configuration for uninterrupted I/O power.

Sourcing Hard-to-Find & Obsolete DeltaV S-Series Parts

DriveKNMS maintains a dedicated inventory of S-Series spare parts sourced from decommissioned DCS systems, factory overstock, and authorized secondary market channels. All units are catalogued by part number, revision level, and firmware version where applicable. DriveKNMS provides:

Quality Control for the DeltaV S-Series Range

S-Series interface cards and I/O modules require functional validation beyond visual inspection due to the complexity of their backplane bus logic and HART communication stacks. DriveKNMS applies the following test protocol to all S-Series units prior to shipment:

• Backplane bus continuity test: Verifies all S-bus signal lines on the card edge connector against reference impedance specifications.
• Power rail verification: Confirms regulated output voltages on the 12P2506X062 and equivalent power modules under load conditions.
• HART pass-through validation: For AI/AO modules, a live HART master is connected to verify token-passing and device variable read/write functions.
• Firmware revision check: Interface cards are interrogated via the DeltaV diagnostic port to confirm firmware version compatibility with target controller revisions.
• Thermal burn-in: Units are operated at elevated ambient temperature for a minimum of 4 hours to screen for latent component failures.
• Final functional test: Each module is installed in a reference S-Series carrier and exercised through a full I/O scan cycle before packaging.
