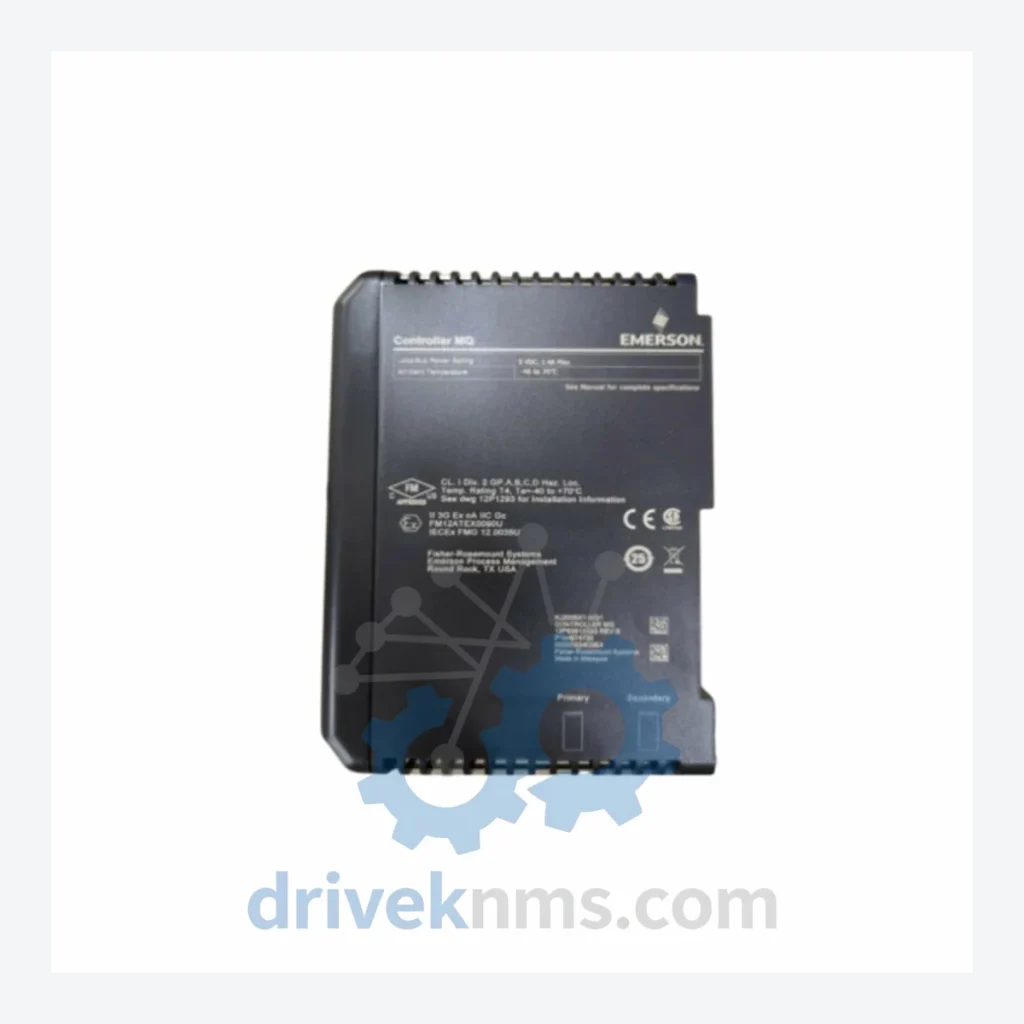

Emerson DeltaV VE3008 Series Modules – VE3008 KJ2005X1-MQ1 12P6381X022

Technical Dossier

Product Details And Specifications

Emerson DeltaV VE3008 Series Technical Notes

The Evolution of VE3008 Architecture

The DeltaV platform was introduced by Emerson (then Fisher-Rosemount) in the mid-1990s as a scalable, node-based DCS designed to replace legacy PROVOX and RS3 systems. The VE3008 controller series emerged as the mid-range workhorse of the DeltaV S-series hardware generation, succeeding earlier MD-class controllers and preceding the current DeltaV MD Plus and DeltaV SX controller families.

Early VE3008 hardware (pre-2005) operated on DeltaV firmware versions 7.x and 8.x, with limited redundancy options and a maximum of 100 DST (DeltaV Smart Transmitter) connections per controller. Post-2008 revisions introduced enhanced redundancy switching times (<30ms), expanded I/O capacity, and compatibility with FOUNDATION Fieldbus H1 and HART 7 protocols. The KJ2005X1-MQ1 variant with part number 12P6381X022 represents a mature revision of this architecture, supporting DeltaV v11.x through v14.x firmware environments.

As of 2024, the VE3008 hardware series has entered the end-of-active-manufacturing phase. Emerson continues to provide software support under its Extended Lifecycle program, but physical hardware replacements are sourced exclusively through certified aftermarket channels. Migration paths lead to the DeltaV MD Plus (KJ2003X1-BA1) or DeltaV SX (KJ2003X1-BC1) platforms for greenfield upgrades.

VE3008 Full Catalog & Functionalities (SKU List)

Controllers

• KJ2005X1-MQ1 (12P6381X022): VE3008 primary process controller, 100-DST capacity, redundancy-capable
• KJ2005X1-BA1: VE3008 standard controller, non-redundant configuration, DeltaV v10+ compatible
• KJ2005X1-BC1: VE3008 redundant controller pair module, <30ms switchover, DeltaV v11+
• KJ2005X1-BF1: VE3008 controller with enhanced memory, 256MB RAM, extended DST support

Analog Input (AI) Modules

• KJ3001X1-BA1: 8-channel AI module, 4–20mA HART, 250Ω loop resistor integrated
• KJ3001X1-BC1: 8-channel AI module, HART 7, intrinsically safe barrier compatible
• KJ3222X1-BA1: 16-channel AI module, single-ended, 4–20mA, non-HART
• KJ3222X1-BC1: 16-channel AI module, HART 5/7 multiplexed, DeltaV v12+ required

Analog Output (AO) Modules

• KJ3002X1-BA1: 8-channel AO module, 4–20mA HART, 750Ω max load
• KJ3002X1-BC1: 8-channel AO module, HART 7, loop-powered, IS-rated

Digital Input (DI) Modules

• KJ3003X1-BA1: 8-channel DI module, 24VDC, dry contact and wet contact configurable
• KJ3003X1-BC1: 16-channel DI module, 24VDC, SOE (Sequence of Events) 1ms resolution

Digital Output (DO) Modules

• KJ3004X1-BA1: 8-channel DO module, 24VDC, 0.5A per channel, short-circuit protected
• KJ3004X1-BC1: 8-channel DO module, relay output, 2A/channel, 250VAC rated

Communication & Network Adapters

• KJ4001X1-BA1: DeltaV FOUNDATION Fieldbus H1 interface card, 2-segment, 31 devices/segment
• KJ4001X1-BC1: DeltaV PROFIBUS DP interface card, 12Mbps, 125 slave devices max
• KJ4009X1-BA1: DeltaV DeviceNet interface card, 500kbps, 64 nodes

Power Supply Modules

• KJ1501X1-BA1: DeltaV 24VDC power supply, 40W, redundant-capable, DIN rail mount
• KJ1501X1-BC1: DeltaV redundant power supply module, automatic failover, 80W combined

Sourcing Hard-to-Find & Obsolete VE3008 Parts

All VE3008 units sourced by DriveKNMS are accompanied by full traceability documentation, including original manufacturer part numbers, revision codes, and firmware version records where available. For facilities operating under IEC 61511 (functional safety) or ISA-84 compliance frameworks, DriveKNMS can provide supporting documentation to assist in change management and MOC (Management of Change) processes.

DriveKNMS also supports cross-reference procurement: if your plant requires a VE3008 variant that has been superseded, our technical team can identify the correct functional equivalent within the DeltaV ecosystem or recommend a validated third-party alternative.

Quality Control for the VE3008 Range

VE3008 controller and I/O modules undergo a structured multi-stage inspection protocol at DriveKNMS before dispatch. Each unit is visually inspected for backplane connector integrity, capacitor condition, and PCB corrosion — failure points specific to long-service DeltaV hardware. Controller modules are bench-tested under simulated DeltaV network load using a dedicated DeltaV v13.3 test environment, verifying DST communication, redundancy switchover timing, and firmware version compatibility.

I/O modules are tested channel-by-channel using calibrated signal sources: AI modules are verified against a 4–20mA reference standard (±0.01mA accuracy), DO modules are load-tested at rated current, and HART-capable modules are validated for HART 5 and HART 7 protocol handshake integrity. Communication adapter cards (PROFIBUS, FF H1, DeviceNet) are tested for segment initialization, device enumeration, and error-free data exchange over a minimum 4-hour burn-in cycle.
