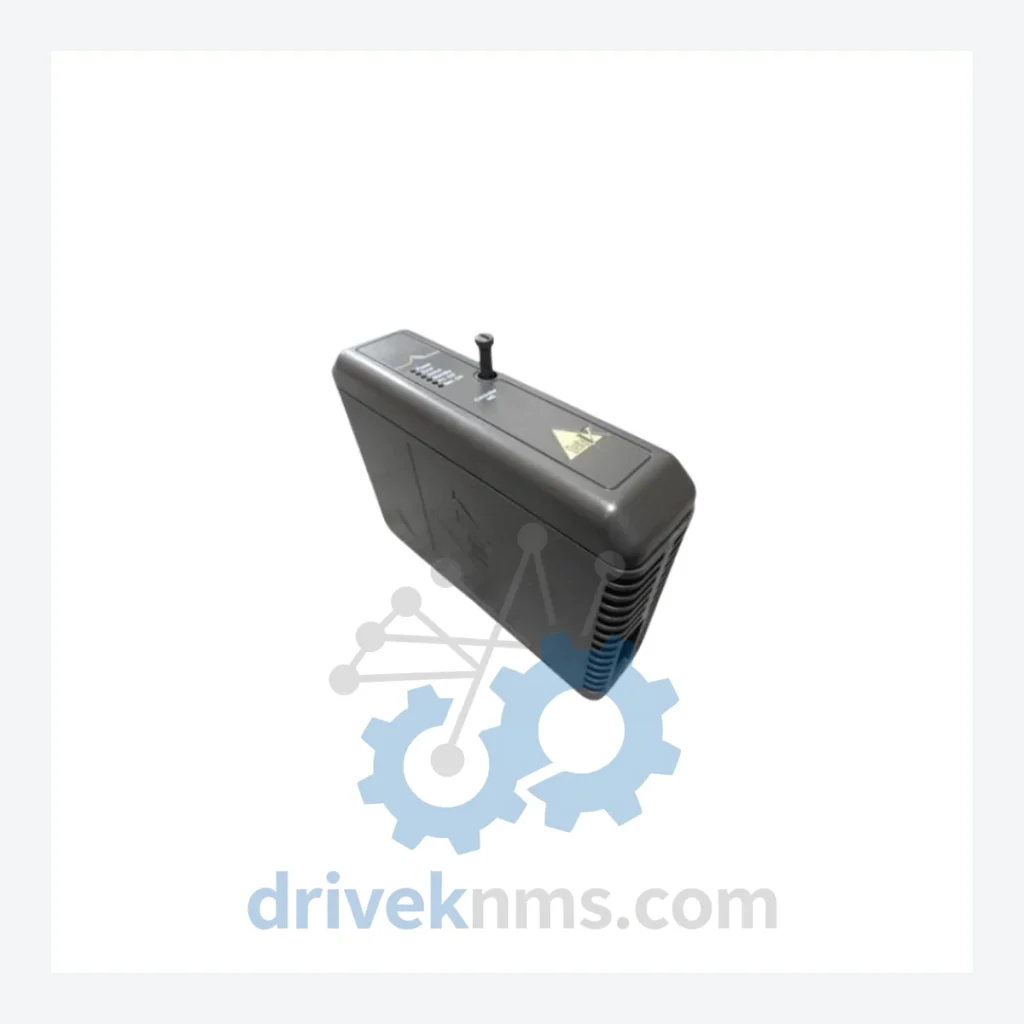

Emerson DeltaV KJ2201X1-BA1 Modules: VS3202 12P3162X162 MD Controller

Technical Dossier

Product Details And Specifications

Emerson DeltaV VS3202 / KJ2201X1-BA1 Series Technical Notes

The Emerson DeltaV VS3202 series, identified by the base part number KJ2201X1-BA1 and full assembly reference 12P3162X162, is a Multivariable (MD) Controller module deployed within the DeltaV distributed control system architecture. This series occupies a critical position in global heavy-process industries including petroleum refining, chemical manufacturing, LNG terminals, nuclear auxiliary systems, and offshore platform automation. The DeltaV platform, introduced by Fisher-Rosemount Systems (subsequently Emerson Process Management), has accumulated an installed base spanning thousands of facilities across six continents. The VS3202 KJ2201X1-BA1 12P3162X162 MD Controller functions as a node-level processing unit responsible for executing control strategies, managing I/O subsystem communication, and maintaining deterministic scan cycles in safety-critical environments. Its continued presence in brownfield facilities makes long-term spare parts availability a primary operational concern for plant asset managers.

The Evolution of DeltaV VS3202 / KJ2201X1-BA1 Architecture

The DeltaV control system was formally launched in 1996 as a next-generation DCS designed around a modular, scalable node architecture. The VS3202 controller series represents a mid-generation hardware platform within the DeltaV product lifecycle, succeeding the original MD-series controllers and preceding the current DeltaV MD Plus and SQ controller families.

Early DeltaV controllers (circa 1996–2002) operated on proprietary backplane buses with limited redundancy options. The KJ2201X1-BA1 generation introduced improved DRAM capacity, enhanced firmware revision support (DeltaV v7.x through v11.x), and expanded I/O subsystem compatibility including HART pass-through and Foundation Fieldbus H1 integration. The 12P3162X162 assembly designation indicates a specific board revision and conformal coating specification relevant to humid or corrosive installation environments.

As of DeltaV v14.x and later, Emerson has transitioned primary development to the DeltaV MD Plus (KJ2201X1-HA1) and DeltaV SQ controller platforms. The VS3202 / KJ2201X1-BA1 is classified as a mature/end-of-active-development product. Emerson continues to provide firmware support under long-term service agreements, but hardware replenishment is exclusively dependent on secondary market and certified refurbished supply chains.

DeltaV VS3202 / KJ2201X1-BA1 Full Catalog & Functionalities (SKU List)

MD Controllers & Processor Modules

• KJ2201X1-BA1 (VS3202 / 12P3162X162): DeltaV MD Controller, standard node processor, 32 MB DRAM, DeltaV v7–v11 compatible.
• KJ2201X1-HA1: DeltaV MD Plus Controller, enhanced processing capacity, DeltaV v11–v14 compatible, direct upgrade path from BA1 revision.
• KJ2201X1-CA1: DeltaV MD Controller, alternate board revision, conformal coating variant for high-humidity environments.
• KJ2201X1-DA1: DeltaV MD Controller, extended temperature specification, suitable for non-climate-controlled enclosures.

AI (Analog Input) Modules

• KJ3001X1-BA1: 8-channel AI module, 4–20 mA HART, individually isolated inputs, DeltaV I/O subsystem compatible.
• KJ3002X1-BA1: 8-channel AI module, Foundation Fieldbus H1 interface, supports up to 16 FF devices per channel.
• KJ3221X1-BA1: 16-channel AI module, non-isolated, high-density analog input for standard process measurements.

AO (Analog Output) Modules

• KJ3221X1-CA1: 8-channel AO module, 4–20 mA HART output, loop-powered, DeltaV subsystem bus interface.
• KJ3222X1-BA1: 8-channel AO module, Foundation Fieldbus H1, supports valve positioner and actuator control via FF protocol.

DI (Digital Input) Modules

• KJ3001X1-CA1: 8-channel DI module, 24 VDC, dry contact and wet contact configurable, DeltaV I/O bus.
• KJ3223X1-BA1: 16-channel DI module, 24 VDC, high-density discrete input, standard process interlock applications.
• KJ3224X1-BA1: 8-channel DI module, 120 VAC input, for legacy field device integration.

DO (Digital Output) Modules

• KJ3225X1-BA1: 8-channel DO module, 24 VDC sourcing output, relay-driven field device control.
• KJ3226X1-BA1: 8-channel DO module, 120 VAC output, for motor starter and solenoid valve applications.

Power Supply & Carrier Modules

• KJ1501X1-BA1: DeltaV I/O subsystem power supply, 24 VDC, 5 A output, DIN-rail mount, redundancy-capable.
• KJ1501X1-CA1: DeltaV I/O subsystem power supply, redundant pair configuration, automatic failover, hot-swap capable.
• KJ1501X1-DA1: DeltaV I/O subsystem carrier, 8-slot, horizontal mount, backplane bus for MD controller node.

Communication & Network Modules

• KJ2003X1-BA1: DeltaV PROVOX Migration Interface, legacy PROVOX I/O bus to DeltaV subsystem bridge module.
• KJ2004X1-BA1: DeltaV RS3 Migration Interface, Rockwell RS3 DCS to DeltaV protocol conversion module.

Quality Control for the DeltaV VS3202 / KJ2201X1-BA1 Range

DeltaV MD Controller modules present specific quality verification challenges due to their integrated backplane communication logic, DRAM integrity requirements, and firmware revision dependencies. DriveKNMS applies a structured test protocol to all KJ2201X1-BA1 units prior to dispatch:

• Visual inspection of PCB, connector pins, and conformal coating integrity per IPC-A-610 Class 2 criteria.
• Powered bench test using a DeltaV-compatible test chassis to verify controller boot sequence, DeltaV OS firmware load, and node registration on a test network segment.
• DRAM diagnostic scan to confirm full 32 MB addressable memory without sector errors.
• Backplane bus communication verification: I/O subsystem polling cycle confirmed at rated scan rate.
• Firmware revision documentation: each unit ships with a recorded firmware version label to confirm compatibility with the customer's DeltaV system version.
• Final functional test: simulated I/O loop execution across AI, AO, DI, and DO module types to confirm controller scan and output integrity.

All units are packed in anti-static ESD shielding bags with desiccant inserts and shipped in double-wall corrugated cartons with foam cushioning rated for international freight handling.
