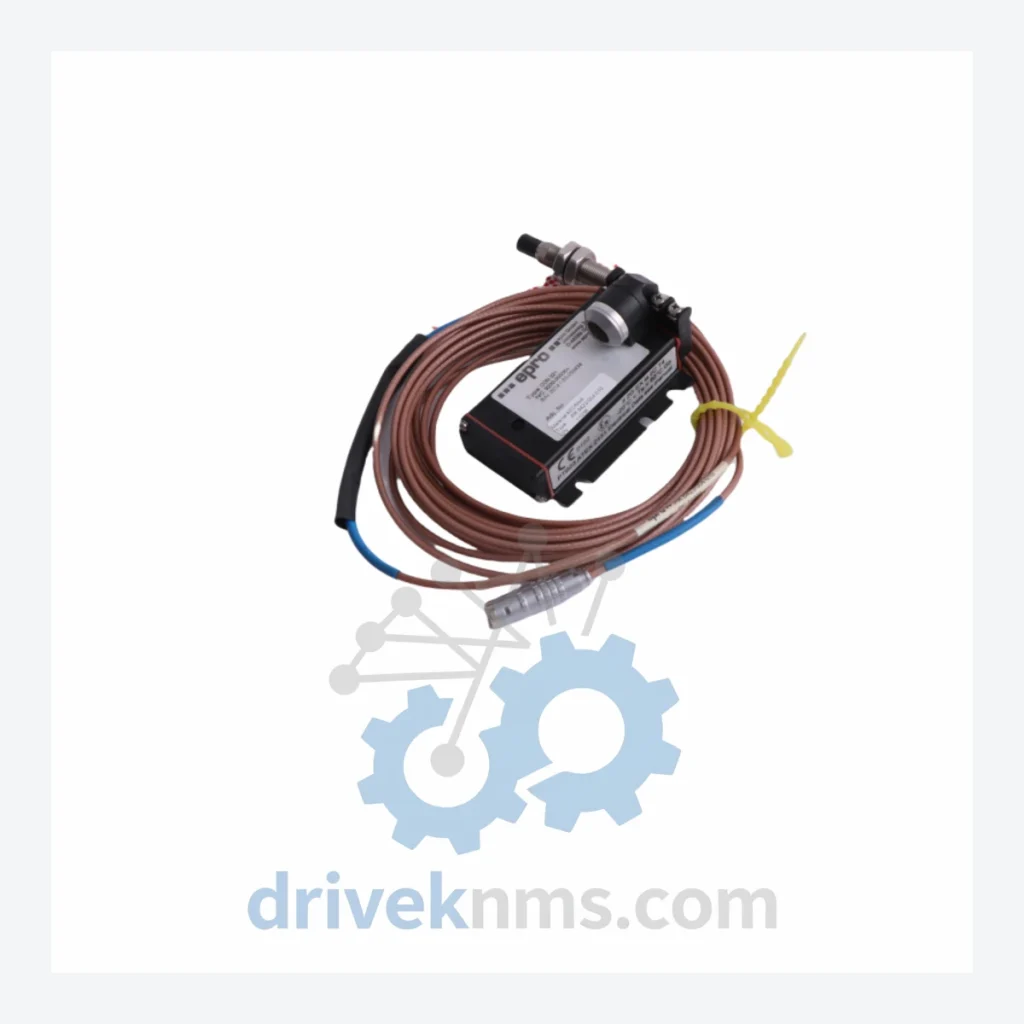

EPRO PR6423 Modules | PR6423/004-010 CON021 Current Sensor

Technical Dossier

Product Details And Specifications

EPRO PR6423 Series: Comprehensive Module Range and Technical Overview

The EPRO PR6423 series is a family of eddy-current displacement and vibration monitoring transducer driver modules manufactured by EPRO GmbH (now part of Emerson Automation Solutions). These modules are deployed as core sensing infrastructure in rotating machinery protection systems across global heavy industry — including petrochemical refineries, nuclear power stations, offshore platforms, and large-scale chemical processing plants. The PR6423 series functions as the signal conditioning front-end for eddy-current proximity probes, converting raw probe impedance changes into standardized 4–20 mA or voltage output signals compatible with Bently Nevada 3500, EPRO MMS 6000, and third-party vibration monitoring racks. Installed base spans several decades of continuous operation, making long-term spare parts availability a critical procurement concern for plant maintenance engineers worldwide.

The Evolution of PR6423 Architecture

The PR6423 series was introduced by EPRO in the late 1980s as a DIN-rail-mountable extension driver for eddy-current probe systems, designed to extend cable distances between probe tip and monitoring rack beyond the standard 5-meter limit imposed by probe cable capacitance. Early variants (CON011, CON021) used analog signal conditioning circuits with fixed sensitivity calibration, targeting 8 mm and 11 mm probe diameters respectively. Mid-generation revisions introduced improved EMI shielding and extended temperature tolerance to accommodate harsh plant environments. Following Emerson's acquisition of EPRO, the PR6423 line was progressively rationalized into the MMS 6000 platform, with newer installations migrating to the PR6424 and PR9268 series for enhanced diagnostics and HART communication capability. However, the PR6423 remains the dominant installed base in plants commissioned between 1990 and 2010, and direct replacement modules continue to be sourced as OEM spares or certified equivalents to avoid costly system-wide upgrades. Compatibility between PR6423 variants and Bently Nevada 3300/3500 series racks has been validated in numerous cross-platform maintenance programs, further extending the series' operational lifespan.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified PR6423 series module range, classified by probe compatibility, cable length, and output configuration. Each entry reflects a distinct part number in active or legacy procurement circulation:

PR6423/001-010 CON011: Extension driver, 8 mm probe, 5 m cable, standard output
PR6423/001-010 CON021: Extension driver, 8 mm probe, 5 m cable, extended range output
PR6423/002-010 CON011: Extension driver, 8 mm probe, 9 m cable, standard output
PR6423/002-010 CON021: Extension driver, 8 mm probe, 9 m cable, extended range output
PR6423/003-010 CON011: Extension driver, 8 mm probe, 15 m cable, standard output
PR6423/003-010 CON021: Extension driver, 8 mm probe, 15 m cable, extended range output
PR6423/004-010 CON011: Extension driver, 11 mm probe, 5 m cable, standard output
PR6423/004-010 CON021: Extension driver, 11 mm probe, 5 m cable, extended range output — current page SKU
PR6423/005-010 CON011: Extension driver, 11 mm probe, 9 m cable, standard output
PR6423/005-010 CON021: Extension driver, 11 mm probe, 9 m cable, extended range output
PR6423/006-010 CON011: Extension driver, 11 mm probe, 15 m cable, standard output
PR6423/006-010 CON021: Extension driver, 11 mm probe, 15 m cable, extended range output
PR6423/007-010 CON011: Extension driver, 14 mm probe, 5 m cable, standard output
PR6423/007-010 CON021: Extension driver, 14 mm probe, 5 m cable, extended range output
PR6423/008-010 CON011: Extension driver, 14 mm probe, 9 m cable, standard output
PR6423/008-010 CON021: Extension driver, 14 mm probe, 9 m cable, extended range output
PR6423/009-010 CON011: Extension driver, 14 mm probe, 15 m cable, standard output
PR6423/010-010 CON021: Extension driver, high-temperature variant, extended cable, dual output

Sourcing Hard-to-Find & Obsolete PR6423 Parts

The PR6423 series has entered the mature-to-declining phase of its product lifecycle. Emerson/EPRO has discontinued active production of several CON011 and CON021 variants, with official end-of-life notices issued for select cable-length configurations. DriveKNMS maintains a dedicated inventory program for PR6423 obsolete and hard-to-find modules, sourced through certified dismantling of decommissioned plant assets, authorized distributor overstock, and direct OEM channel partnerships. All PR6423 units in DriveKNMS stock are individually serialized, with traceability documentation available upon request. For plants operating under IEC 61511 functional safety requirements, DriveKNMS can provide modules with accompanying test certificates and calibration records to support safety instrumented system (SIS) maintenance audits. Customers requiring long-term supply agreements (LTA) for multi-year maintenance contracts are accommodated with reserved stock allocation and priority fulfillment scheduling.

Quality Control for the PR6423 Range

The PR6423 series presents specific quality verification challenges due to its analog signal conditioning architecture and sensitivity to probe-cable impedance matching. DriveKNMS applies a dedicated test protocol for all PR6423 units prior to dispatch. Each module undergoes bench-level functional verification using a calibrated eddy-current probe simulator to confirm output linearity across the full measurement range (typically -24 VDC supply, 4–20 mA output). Backplane connector integrity is inspected under 10× magnification for pin deformation, oxidation, and solder joint fatigue — common failure modes in modules removed from high-vibration environments. Internal oscillator frequency is verified against EPRO factory specification to confirm probe excitation signal stability. Modules exhibiting output drift exceeding ±0.5% of full scale are quarantined and not offered for resale. Final test data is logged per serial number and retained for a minimum of five years to support customer audit requirements.
