EPRO PR6423 Modules PR6423/010-110-CN CON021

Technical Dossier

Product Details And Specifications

EPRO PR6423 Series Technical Notes

The Evolution of PR6423 Architecture

The PR6423 series was developed by EPRO GmbH (Eschborn, Germany) as part of its second-generation eddy-current proximity transducer family, succeeding earlier PR6422 and PR6400 series probes. The architecture is built around a coil-and-oscillator design where the probe tip generates a high-frequency electromagnetic field; target proximity modulates the field impedance, producing a linear DC voltage output proportional to gap distance.

Early PR6423 variants (circa 1990s) used discrete analog signal conditioning with fixed sensitivity coefficients (typically 8 mV/µm or 200 mV/mil). Mid-generation revisions introduced improved temperature compensation circuitry and extended cable length compatibility via matched extension cables (PR9376 series). Modern variants maintain backward mechanical and electrical compatibility with legacy MMS 6000 rack slots, ensuring that replacement modules can be installed without rack reconfiguration. Following Baker Hughes' acquisition of EPRO, the series entered a mature/end-of-active-production phase; however, installed base demand sustains a robust aftermarket. Plant operators running PR6423-based protection systems should plan for lifecycle extension strategies rather than full system replacement, as equivalent rack-compatible alternatives require significant re-engineering of probe mounting and cabling infrastructure.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the PR6423 eddy-current proximity probe series. Models are categorized by cable length, connector type, and thread specification:

PR6423/000-000: Standard eddy-current proximity probe, 5 mm tip, no cable, bare lead termination.
PR6423/001-000: Proximity probe, 5 mm tip, 1 m integral cable, flying lead.
PR6423/002-000: Proximity probe, 5 mm tip, 2 m integral cable, flying lead.
PR6423/003-000: Proximity probe, 5 mm tip, 3 m integral cable, flying lead.
PR6423/005-000: Proximity probe, 5 mm tip, 5 m integral cable, flying lead.
PR6423/008-000: Proximity probe, 5 mm tip, 8 m integral cable, flying lead.
PR6423/010-000: Proximity probe, 5 mm tip, 10 m integral cable, flying lead.
PR6423/010-110-CN: Proximity probe, 5 mm tip, 10 m cable, CN-type connector, standard sensitivity.

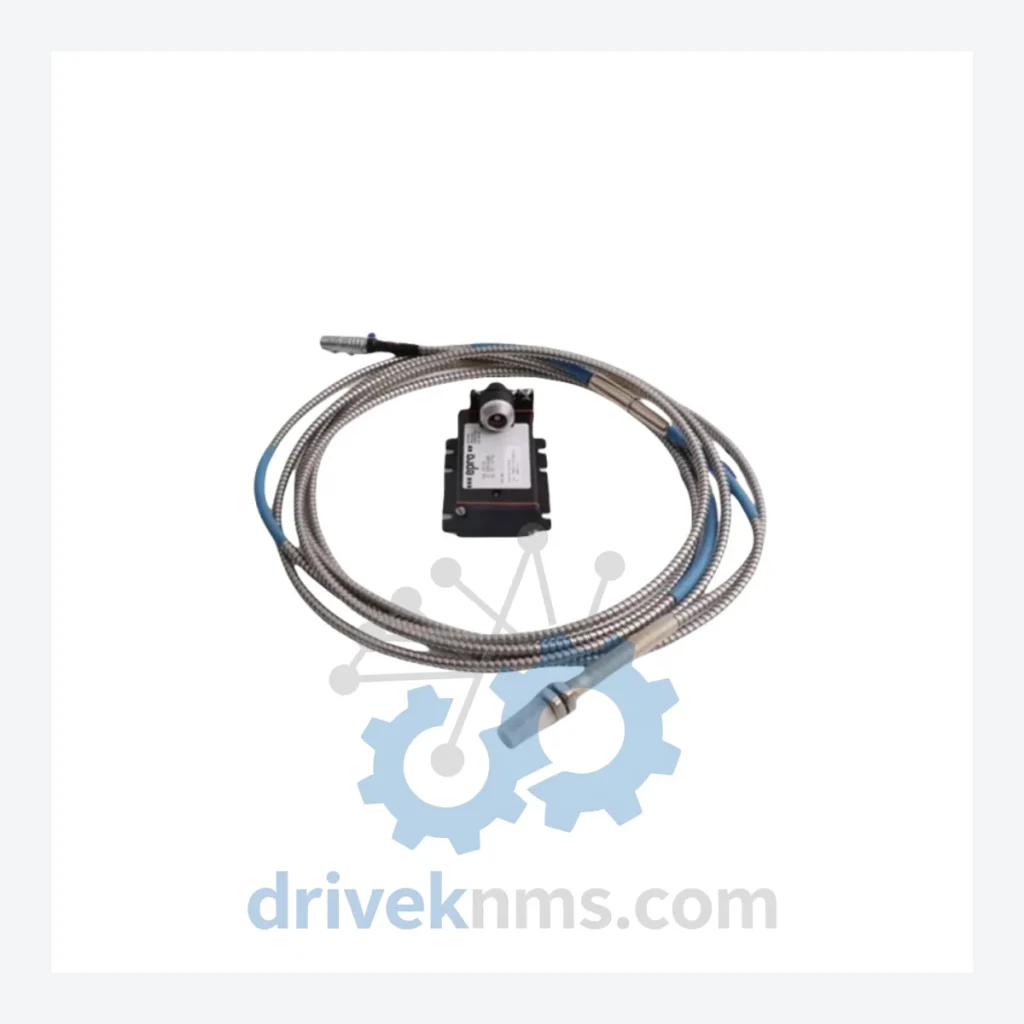

PR6423/010-110-CN CON021: Proximity probe with CON021 signal conditioner pairing, 10 m cable, CN connector, optimized for MMS 6000 rack slot 21 assignment.
PR6423/010-130: Proximity probe, 10 m cable, extended temperature range variant, flying lead.
PR6423/015-000: Proximity probe, 5 mm tip, 15 m integral cable, flying lead.
PR6423/015-110-CN: Proximity probe, 15 m cable, CN-type connector.
PR6423/020-000: Proximity probe, 5 mm tip, 20 m integral cable, flying lead.
PR6423/020-110-CN: Proximity probe, 20 m cable, CN-type connector.
PR6423/030-000: Proximity probe, 5 mm tip, 30 m integral cable, flying lead.
PR6423/050-000: Proximity probe, 5 mm tip, 50 m integral cable, flying lead.
PR6423/000-030: Proximity probe, armored cable variant, short lead, high-vibration installation.
PR6423/010-030: Proximity probe, 10 m armored cable, high-vibration/high-temperature environment.
PR6423/010-110: Proximity probe, 10 m cable, standard connector, non-CN termination variant.

Sourcing Hard-to-Find & Obsolete PR6423 Parts

DriveKNMS provides: verified-original EPRO PR6423 probes with full traceability documentation; matched PR9376 extension cable sets for system-level gap calibration; CON021 and CON011 signal conditioner modules compatible with PR6423 probe outputs; and cross-reference support for identifying equivalent replacement models where direct substitution is not available. All obsolete PR6423 inventory is held in climate-controlled storage and dispatched with calibration certificates where applicable.

Quality Control for the PR6423 Range

PR6423 proximity probes require specialized validation procedures distinct from standard electronic component testing. DriveKNMS applies the following QC protocol to all PR6423 units processed through its facility:

Coil impedance verification: Each probe tip coil is measured at 1 MHz using an LCR meter to confirm inductance and Q-factor within EPRO factory specification bands. Static sensitivity calibration: Probes are mounted in a precision gap fixture and output voltage is measured at 0.25 mm increments across the full linear range (typically 0.25–2.5 mm) to verify 8 mV/µm ±5% sensitivity. Cable continuity and insulation resistance: Full cable length is tested for conductor resistance, shield continuity, and insulation resistance (>100 MΩ at 500 VDC). Connector integrity: CN-type and flying-lead terminations are inspected for pin alignment, solder joint quality, and strain relief condition. Thermal cycling check: Extended-temperature variants undergo a 4-hour thermal soak at rated maximum operating temperature prior to final sensitivity re-verification. Units failing any parameter are quarantined and not released for sale.
