EPRO PR6424 Series: Comprehensive Module Range and Technical Overview

The EPRO PR6424 series comprises eddy-current proximity transducer systems and associated signal conditioning modules engineered for continuous vibration, position, and speed monitoring in rotating machinery. These systems are deployed across critical industrial infrastructure including petrochemical refineries, nuclear power stations, offshore platforms, gas compression trains, and large-scale turbomachinery installations. The PR6424 series operates as a core component within EPRO's broader machinery protection ecosystem, interfacing directly with API 670-compliant monitoring systems. Its installed base spans decades of heavy industrial operation, making it one of the most referenced transducer families in the rotating equipment protection segment.

The Evolution of PR6424 Architecture

The PR6424 series was developed by EPRO GmbH (subsequently acquired by Emerson Electric) as part of a standardized eddy-current sensing platform. Early variants were designed for direct integration with analog monitoring panels, providing 4–20 mA or voltage outputs proportional to gap distance. As industrial DCS and PLC architectures matured through the 1990s and 2000s, the PR6424 family was extended with variants supporting higher temperature ranges, extended cable lengths, and improved EMI shielding to meet the demands of increasingly complex plant environments.

The series uses a two-component architecture: a probe (sensor) and a signal conditioner (CON module). The CON021 conditioner paired with the PR6424/010-010 probe represents one of the most widely deployed configurations, offering a measurement range of 0–10 mm with a sensitivity of 8 mV/µm. Compatibility between probe and conditioner variants is governed by cable length and sensitivity matching — substituting components across sub-series without verification risks calibration error and false trips in protection systems.

With EPRO's product portfolio now managed under Emerson's Machinery Health Management division, several PR6424 sub-variants have transitioned to end-of-life status. Replacement pathways include the EPRO PR6426 series and Emerson CSI 6500 platform, though direct form-factor substitution is not always possible without panel modification. Long-term maintenance of existing PR6424 installations therefore depends on access to verified surplus and refurbished stock.

PR6424 Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the EPRO PR6424 eddy-current transducer and conditioner family, organized by functional category:

Proximity Probes (Sensors)

PR6424/000-000: Standard eddy-current probe, 5 mm range, M14 thread, general-purpose shaft proximity measurement.
PR6424/010-010: Eddy-current proximity probe, 10 mm range, M14 thread, paired with CON021 conditioner for 0–10 mm gap sensing.
PR6424/010-030: Extended-range probe variant, 10 mm nominal, 3 m integral cable, suited for high-vibration mounting environments.
PR6424/020-000: High-temperature probe variant rated to 180 °C, used in steam turbine and compressor applications.
PR6424/030-000: Long-body probe configuration for deep-bore installations in large rotating equipment housings.
PR6424/040-010: Miniature-format probe for space-constrained bearing housings, 5 mm active range.

Signal Conditioners (CON Modules)

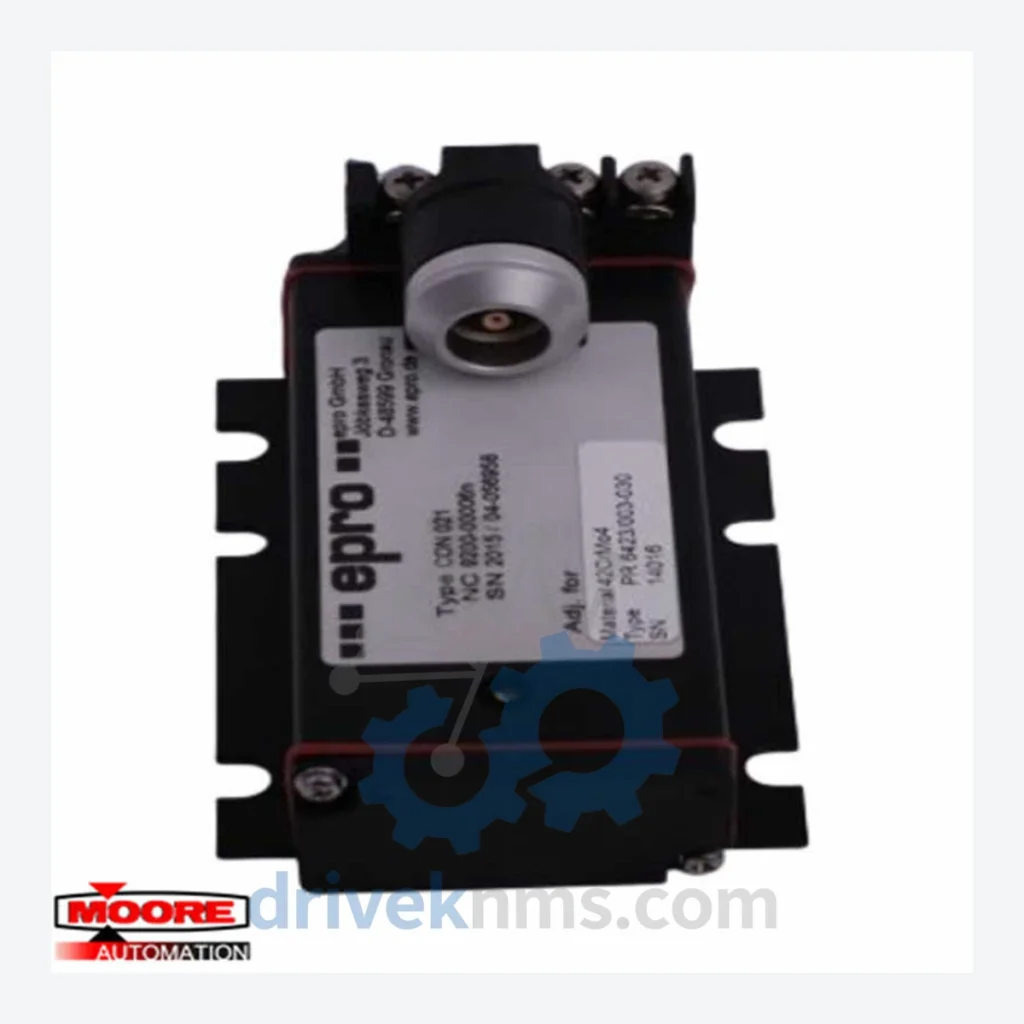

PR6424/010-010 CON021: Standard signal conditioner for PR6424/010-010 probe; outputs –24 VDC bias, 8 mV/µm sensitivity, 0–10 mm range — the reference configuration for API 670 shaft displacement monitoring.
PR6424/000-000 CON011: Entry-level conditioner for 5 mm range probes; 200 Hz frequency response, single-channel output.
PR6424/020-000 CON031: High-temperature-rated conditioner module; extended operating range to 85 °C ambient, used in turbine proximity systems.
PR6424/030-000 CON041: Long-cable conditioner variant; compensates for cable capacitance up to 15 m extension cable runs.
PR6424/040-010 CON051: Miniature conditioner for compact probe variants; DIN-rail mountable, 24 VDC supply.

Extension Cables & Accessories

PR6424/010-010 EXT: Standard extension cable assembly, 5 m, matched impedance for PR6424/010-010 probe-conditioner pair.
PR6424/010-030 EXT: 3 m extension cable for /010-030 probe variant, pre-terminated with EPRO connectors.
PR6424/020-000 EXT-HT: High-temperature extension cable, PTFE insulation, rated to 200 °C, for steam environment routing.

Mounting & Mechanical Hardware

PR6424-MTG-M14: M14 probe mounting bracket, stainless steel, adjustable gap-setting fixture for field installation.
PR6424-MTG-FLANGE: Flanged mounting adapter for bearing housing integration, compatible with all M14-thread PR6424 probes.
PR6424-CAL-KIT: Field calibration kit including reference target disc, gap gauge, and calibration certificate template for API 670 compliance documentation.

Sourcing Hard-to-Find & Obsolete PR6424 Parts

DriveKNMS maintains a dedicated inventory program for EPRO PR6424 series components, including models that have reached end-of-production status under Emerson's current catalog. Our sourcing network covers verified surplus stock from decommissioned plant assets, factory-refurbished units with full functional test records, and cross-referenced equivalents where direct substitution has been engineering-validated.

For operators running legacy turbomachinery protection systems built around the PR6424 platform, unplanned downtime caused by unavailable spare parts represents a significant operational risk. DriveKNMS provides lead-time commitments on hard-to-find variants including the CON021 conditioner, high-temperature probe sub-series, and long-cable extension assemblies. All units are supplied with traceability documentation and, where applicable, calibration records.

Quality Control for the PR6424 Range

EPRO PR6424 components involve precision-matched probe-conditioner pairs where electrical characteristics — sensitivity, bias voltage, frequency response — must fall within tight tolerances to ensure accurate machinery protection readings. DriveKNMS applies a structured test protocol to all PR6424 units prior to dispatch:

Each probe is tested for tip impedance and coil continuity against EPRO factory specifications. Conditioner modules undergo bench-level functional verification including bias voltage output (–24 VDC ±0.5 V), sensitivity linearity across the full measurement range, and frequency response validation to 200 Hz. Probe-conditioner pairs are tested as matched assemblies using a calibrated target fixture to confirm gap-versus-output linearity. Extension cable assemblies are tested for impedance matching and insulation resistance. Units exhibiting drift, non-linearity, or connector degradation are rejected and not offered for sale. Test records are available upon request for critical applications.
