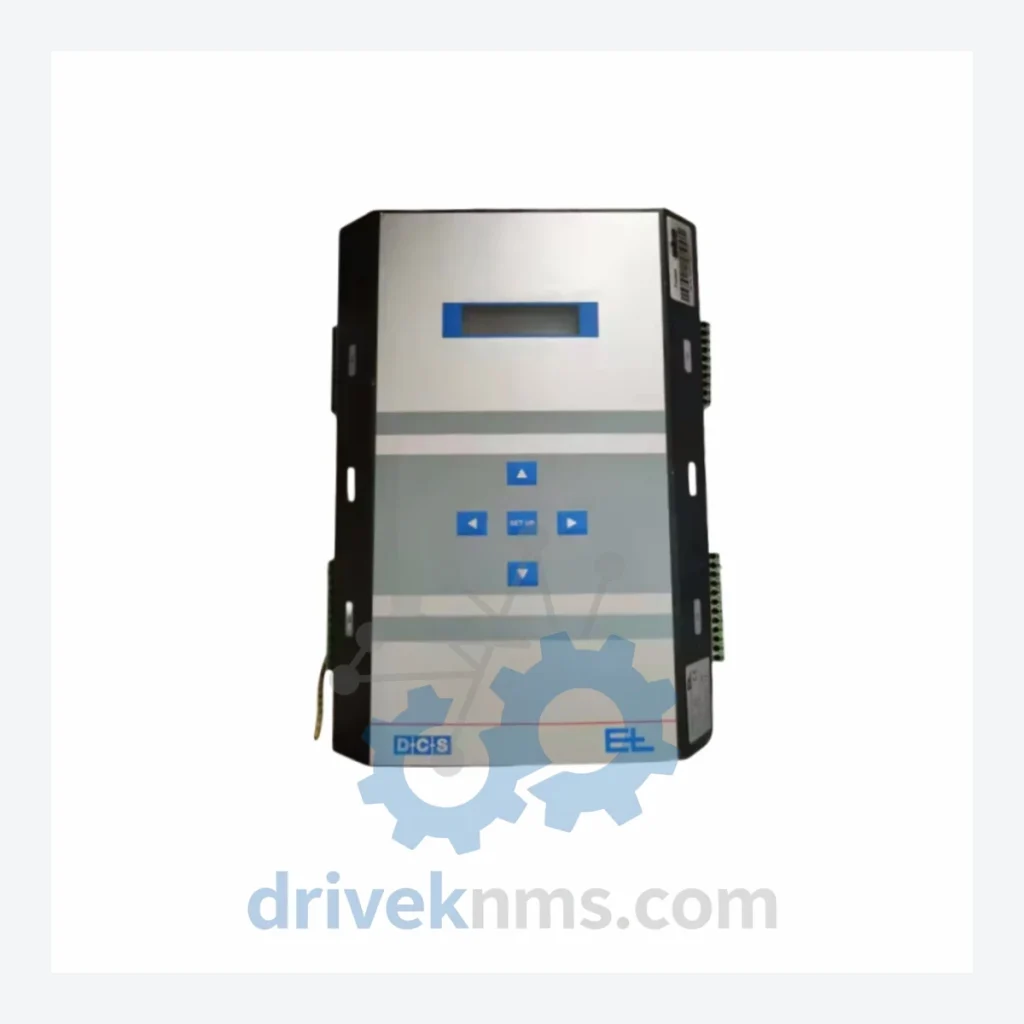

Erhardt+Leimer DC5501 Controller – Obsolete DC-Series Spare Part

When an Erhardt+Leimer DC5501 controller fails on an active production line, the operational consequences are immediate and measurable. Web guiding systems built around the DC-Series architecture are deeply integrated into the mechanical and electrical infrastructure of printing presses, slitting machines, laminating lines, and film converting equipment. A single failed DC5501 unit does not merely halt one machine — it can idle an entire production cell, triggering downstream scheduling failures and contractual delivery penalties.

The cost of a full system retrofit to replace a DC-Series web guiding platform — including new sensors, actuators, control cabinets, commissioning labor, and production downtime — routinely exceeds USD $150,000 to $400,000 per line, depending on web width and process complexity. Against that figure, sourcing a verified replacement DC5501 controller represents a rational, low-risk asset protection decision. DriveKNMS maintains a limited inventory of hard-to-find Erhardt+Leimer legacy components specifically to support facilities operating equipment beyond the manufacturer's active support window.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Erhardt+Leimer DC5501 belongs to a generation of analog and early-digital web guiding controllers that were engineered for long service lives in demanding industrial environments. These units were installed across paper mills, flexible packaging plants, textile finishing lines, and specialty printing facilities throughout the 1990s and 2000s. Many of these installations remain in productive operation today, having been maintained through periodic component replacement rather than full system overhaul.

The DC5501 is not a commodity item. Its control logic, sensor interface protocol, and actuator output characteristics are matched to specific mechanical guiding frames and sensor heads within the same DC-Series ecosystem. Substituting a modern replacement controller requires re-engineering the sensor interface, recalibrating the actuator response curve, and in many cases modifying the control cabinet wiring — work that demands specialized commissioning expertise and extended downtime. For facilities operating multiple shifts, that downtime window is rarely available without significant production loss.

The practical alternative is direct replacement with a verified DC5501 unit. This approach preserves the existing sensor-actuator relationship, retains all calibration parameters stored in the host system, and returns the machine to production without re-engineering. For plant engineers managing aging assets under capital expenditure constraints, this is the operationally sound path. DriveKNMS sources DC5501 units through established industrial surplus and decommissioned equipment channels, with each unit subject to pre-shipment inspection before dispatch.

Condition & Reliability Assurance

Legacy controllers sourced from surplus channels carry inherent age-related risk. DriveKNMS applies a structured 5-step inspection protocol to all DC5501 units prior to shipment:

• Step 1 – Electrolytic Capacitor Assessment: Capacitors in power supply and signal conditioning circuits are inspected for physical deformation, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
• Step 2 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the DC5501 platform. Incompatible or corrupted firmware states are flagged before shipment.
• Step 3 – Pin and Connector Corrosion Inspection: All edge connectors, terminal blocks, and backplane pins are inspected under magnification for oxidation, mechanical damage, and contact integrity. Corroded contacts are cleaned or the unit is rejected.
• Step 4 – Functional Power-On Test: Units are powered within rated supply parameters and observed for correct initialization, indicator behavior, and absence of fault states.
• Step 5 – Visual and Mechanical Integrity Check: PCB surfaces, mounting hardware, and enclosure integrity are inspected. Units with cracked boards, missing components, or structural damage are excluded from inventory.

Key Features for System Maintenance

• Drop-in replacement: The DC5501 installs directly into the existing control cabinet mounting position without mechanical modification.
• No reprogramming required: The DC-Series architecture stores guiding parameters in the sensor and actuator subsystems. A replacement DC5501 restores operation without re-entering machine-specific calibration data in most configurations.
• Avoids engineering reconstruction costs: Direct replacement eliminates the need for system integrator engagement, new sensor procurement, and actuator recalibration — costs that typically range from $20,000 to $80,000 per line for a full platform migration.
• Extends asset service life by 5–10 years: Facilities that maintain a strategic spare DC5501 unit can defer capital expenditure on web guiding system replacement, reallocating budget to higher-priority infrastructure projects. A single spare controller, properly stored, provides insurance against unplanned downtime for the remaining operational life of the host machine.
• Supports multi-line operations: Plants operating multiple DC-Series guiding systems benefit from holding one or two DC5501 spares as fleet-level insurance, covering multiple machines from a single inventory position.

FAQ

Q: What warranty applies to an obsolete DC5501 unit?
A: DriveKNMS provides a 90-day functional warranty on inspected DC5501 units, covering failure under normal operating conditions. Warranty terms are confirmed in writing at the time of order.

Q: Are these new-old-stock (NOS) or refurbished units?
A: DC5501 units in our inventory are sourced as either new-old-stock (original packaging, never installed) or quality-inspected used units that have passed our 5-step inspection protocol. Condition grade is disclosed for each unit at the time of quotation.

Q: How should DC5501 units be stored as long-term spares?
A: Store in a dry, temperature-stable environment (10–35°C), away from direct sunlight and electromagnetic interference sources. Anti-static packaging should be maintained. Electrolytic capacitors in stored units benefit from periodic re-forming — consult DriveKNMS for long-term storage guidance specific to your procurement quantity.

Q: Can DriveKNMS source multiple units for fleet-level spare parts programs?
A: Yes. Contact our procurement team with your required quantity and delivery schedule. We maintain sourcing relationships across industrial surplus networks in Europe, North America, and Asia to fulfill multi-unit requirements where stock permits.

Q: What information should I provide when requesting a quote?
A: Provide the full machine model, the existing DC5501 installation context (standalone or networked), and any visible part markings or revision codes on the failed unit. This allows DriveKNMS to confirm compatibility before shipment.
