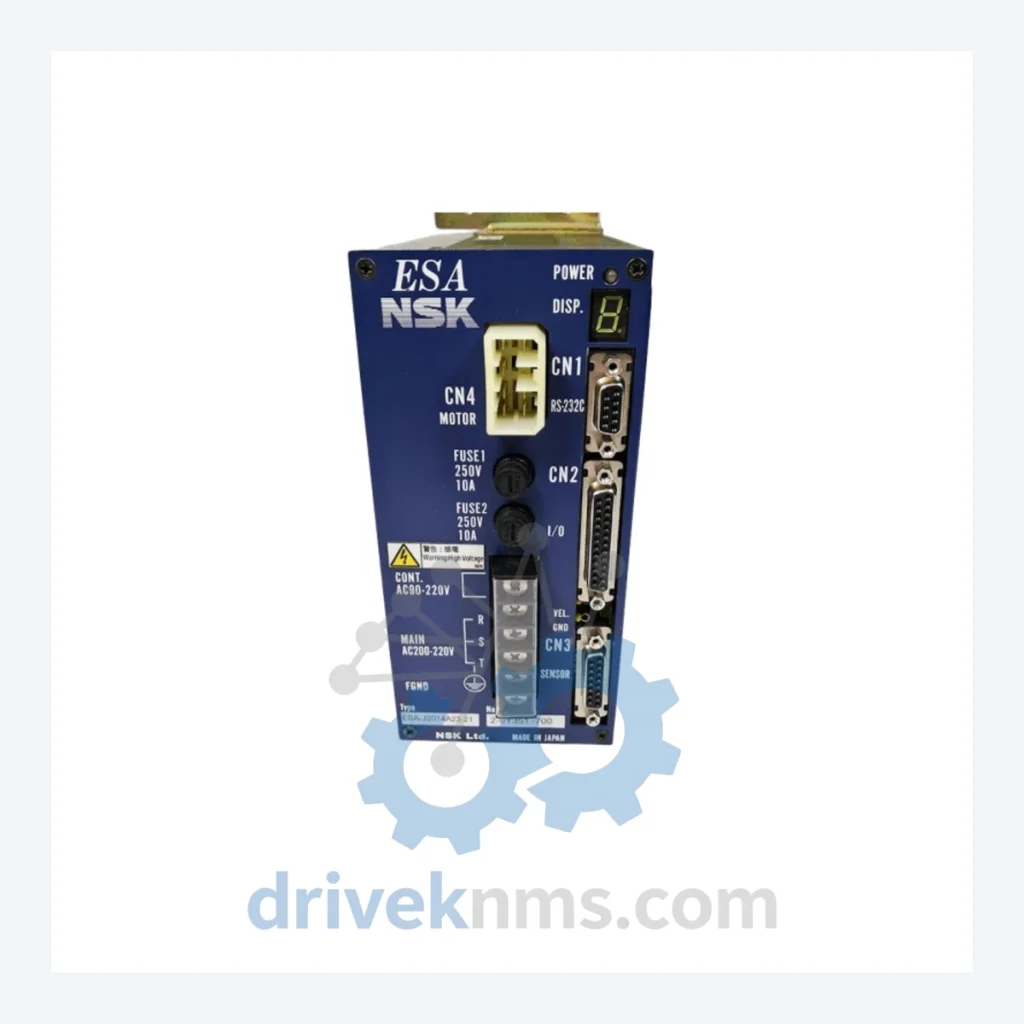

ESA NSK ESA-Y3040A25 Servo Driver Modules

Technical Dossier

Product Details And Specifications

ESA NSK ESA-Y3040A25 Series: Comprehensive Module Range and Technical Overview

The ESA NSK ESA-Y3040A25 series represents a line of AC servo drivers engineered for precision motion control in demanding industrial environments. These units are deployed across global heavy industry sectors including petrochemical processing plants, nuclear power auxiliary systems, steel rolling mills, and offshore oil refinery automation lines. The ESA-Y3040A25 platform is characterized by its compact drive architecture, integrated encoder feedback processing, and compatibility with NSK servo motor spindles — making it a standard reference component in legacy CNC and motion control retrofits.

In facilities where production continuity is non-negotiable, the ESA-Y3040A25 series has maintained a long service record due to its robust thermal management design and tolerance for high-cycle duty applications. DriveKNMS maintains a dedicated inventory of this series to support facilities operating under long-term maintenance contracts and lifecycle extension programs.

The Evolution of ESA-Y3040A25 Architecture

The ESA-Y3040A25 series was developed as part of NSK's integrated servo ecosystem, designed to interface directly with NSK AC servo motors via dedicated encoder cables and drive bus connectors. Early variants in this lineage used analog command interfaces (±10V velocity/torque reference), while later revisions introduced pulse-train position command compatibility, expanding their use in PLC-coordinated multi-axis systems.

The ESA-Y3040A25-11 variant — paired with cable assembly TXZ 0040-03349 and interface boards QT1903-B / TG1318-C — represents a mature revision of this architecture, incorporating refined current loop response and improved fault diagnostics. As the broader ESA-Y3040A25 series has entered its end-of-production lifecycle, sourcing complete drive-and-cable assemblies from verified aftermarket suppliers has become the primary maintenance strategy for installed base operators.

Compatibility considerations: The ESA-Y3040A25 series is not directly interchangeable with later NSK Megatorque or Linearecta series without motor parameter re-commissioning. Facilities planning migration to current-generation drives must account for encoder protocol differences (incremental vs. absolute) and regenerative braking circuit redesign.

ESA-Y3040A25 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ESA NSK ESA-Y3040A25 servo driver series and associated interface components. Each entry reflects a distinct functional role within the drive system architecture.

Servo Driver Units

• ESA-Y3040A25-11: AC servo driver, 400W class, analog/pulse command, standard encoder interface
• ESA-Y3040A25-21: AC servo driver, 400W class, enhanced current loop, extended fault log
• ESA-Y3040A25-31: AC servo driver, 400W class, high-inertia load tuning variant
• ESA-Y3040A50-11: AC servo driver, 500W class, uprated power stage, same command interface
• ESA-Y3040A50-21: AC servo driver, 500W class, dual-axis coordination firmware
• ESA-Y3060A25-11: AC servo driver, 600W class, extended thermal rating for continuous duty
• ESA-Y3060A25-21: AC servo driver, 600W class, regenerative braking resistor interface

Cable Assemblies & Interface Harnesses

• TXZ 0040-03349: Encoder/power cable assembly, matched to ESA-Y3040A25-11, 4.0m standard length
• TXZ 0040-03350: Encoder/power cable assembly, 6.0m extended length variant
• TXZ 0040-03351: Encoder/power cable assembly, shielded, high-noise environment specification
• TXZ 0040-03400: Motor power cable, 400W class, UL/CE rated insulation

Interface & Control Boards

• QT1903-B: Command interface board, analog ±10V input, axis parameter storage
• QT1903-C: Command interface board, pulse-train input variant, differential line driver
• TG1318-C: Feedback processing board, incremental encoder signal conditioning, 2500 PPR
• TG1318-D: Feedback processing board, high-resolution encoder variant, 10000 PPR
• TG1318-E: Feedback processing board, absolute encoder protocol, battery backup circuit

Sourcing Hard-to-Find & Obsolete ESA-Y3040A25 Parts

The ESA-Y3040A25 series has been discontinued by NSK and is no longer available through standard distribution channels. For facilities operating this series in active production, DriveKNMS provides structured lifecycle extension support through the following service framework:

• Verified aftermarket stock: DriveKNMS maintains physical inventory of ESA-Y3040A25 driver units, cable assemblies, and interface boards sourced from decommissioned equipment and authorized surplus channels.
• Cross-reference matching: For units where the exact model is unavailable, DriveKNMS engineers perform parameter-level compatibility analysis to identify functional equivalents within the NSK servo driver catalog.
• Complete drive assemblies: Matched sets of driver unit + cable + interface board (e.g., ESA-Y3040A25-11 + TXZ 0040-03349 + QT1903-B/TG1318-C) are available as tested assemblies, reducing on-site commissioning time.
• Emergency dispatch: Critical spare orders with confirmed stock can be processed within 24 hours for air freight dispatch to minimize unplanned downtime.

Quality Control for the ESA-Y3040A25 Range

All ESA-Y3040A25 series units processed by DriveKNMS undergo a structured inspection and functional verification protocol prior to dispatch:

• Visual and mechanical inspection: PCB surface examination for corrosion, capacitor bulge, trace damage, and connector pin integrity across all backplane and signal connectors.
• Power stage verification: IGBT/transistor switching element testing under controlled load conditions to confirm rated current output and switching frequency response.
• Encoder interface test: Signal integrity verification on QT1903-B and TG1318-C boards using reference encoder simulation at rated PPR, confirming differential line driver output levels and noise immunity.
• Command response test: Analog velocity command (±10V) and pulse-train position command functional verification against factory response curve specifications.
• Thermal cycling: Units are operated through a minimum of one full thermal cycle (ambient to rated operating temperature) to screen for latent solder joint or component failures.
• Cable assembly continuity: TXZ series cable assemblies are tested for pin-to-pin continuity, shield integrity, and insulation resistance at 500VDC.
