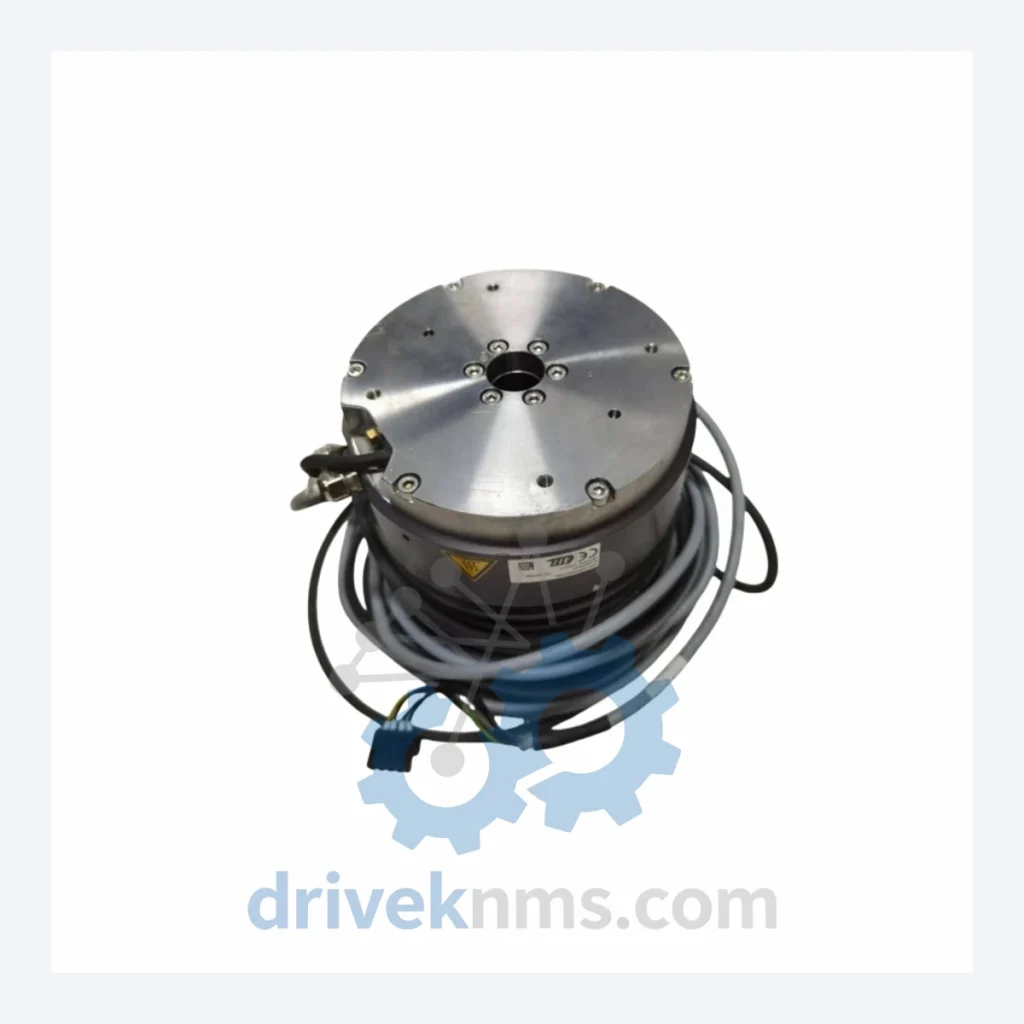

ETEL SME Series Modules SME-RTMB01401003RBS0000

Technical Dossier

Product Details And Specifications

ETEL SME Series Technical Notes

DriveKNMS maintains an active sourcing network for the full ETEL SME catalog, including discontinued variants no longer listed on ETEL's official channels. All units are subject to functional verification prior to dispatch.

The Evolution of SME Series Architecture

ETEL introduced the SME platform as a successor to its earlier DMCLM and DPRALTE controller families, consolidating multi-axis coordination, real-time feedback processing, and fieldbus communication into a modular, rack-mountable form factor. The architecture is built around ETEL's proprietary MACRO (Motion And Control Ring Optical) communication ring, which provides deterministic, low-latency data exchange between master controllers and distributed servo nodes.

Early SME variants (circa 2005–2012) relied on parallel backplane communication and supported primarily analog encoder feedback. Mid-generation modules introduced digital SinCos and EnDat 2.2 encoder interfaces, significantly improving noise immunity in high-EMI environments such as semiconductor lithography and electron beam systems. Current-generation SME modules support EtherCAT and MACRO simultaneously, enabling hybrid topologies where legacy ETEL axes coexist with newer fieldbus-native drives.

The critical compatibility constraint for procurement teams: SME modules are firmware-versioned and hardware-revisioned. A module with an incompatible firmware baseline will fail initialization on the host controller even if the part number matches. DriveKNMS verifies firmware compatibility as part of the pre-shipment inspection protocol.

ETEL SME Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed members of the ETEL SME series, categorized by functional role. Each entry reflects the module's primary operational function within a multi-axis motion system.

Motion Control & Servo Drive Modules

• SME-RTMB01401003RBS0000: Real-time motion board, 1-axis servo control, MACRO bus interface, 3A peak current rating
• SME-RTMB01401006RBS0000: Real-time motion board, 1-axis servo control, MACRO bus interface, 6A peak current rating
• SME-RTMB01401012RBS0000: Real-time motion board, 1-axis servo control, MACRO bus interface, 12A peak current rating
• SME-RTMB02401003RBS0000: Real-time motion board, 2-axis servo control, MACRO bus, 3A per axis
• SME-RTMB02401006RBS0000: Real-time motion board, 2-axis servo control, MACRO bus, 6A per axis
• SME-RTMB04401003RBS0000: Real-time motion board, 4-axis servo control, MACRO bus, 3A per axis

Power Supply & Conditioning Modules

• SME-PSU48V10A0000000000: 48VDC power supply module, 10A continuous output, rack-mount form factor
• SME-PSU48V20A0000000000: 48VDC power supply module, 20A continuous output, for multi-axis configurations
• SME-PSU24V05A0000000000: 24VDC logic power supply, 5A, for I/O and communication modules

Communication & Interface Modules

• SME-MACROMASTER00000000: MACRO ring master controller, manages up to 32 nodes per ring segment
• SME-ECAT0000000000000000: EtherCAT gateway module, bridges MACRO ring to EtherCAT master topology
• SME-PROFIBUS000000000000: PROFIBUS-DP interface adapter, for integration with Siemens S7 and ABB DCS systems

I/O & Feedback Modules

• SME-DIO16160000000000000: Digital I/O module, 16 inputs / 16 outputs, 24VDC, optically isolated
• SME-AIO04040000000000000: Analog I/O module, 4 inputs / 4 outputs, ±10V, 16-bit resolution
• SME-ENCIF00ENDAT2200000: Encoder interface module, EnDat 2.2 protocol, supports Heidenhain and Sick encoders
• SME-ENCIF00SINCOS000000: Encoder interface module, SinCos 1Vpp, for legacy linear and rotary encoders

Sourcing Hard-to-Find & Obsolete SME Series Parts

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The primary sourcing challenge for discontinued SME modules is not physical availability — it is authenticity verification. The SME platform's high unit value (typically USD 2,000–15,000 per module depending on axis count and current rating) makes it a target for counterfeit and refurbished-as-new misrepresentation in the secondary market.

Quality Control for the SME Series Range

The SME series presents specific quality control challenges that distinguish it from standard PLC I/O modules. Key considerations in the DriveKNMS inspection protocol include:

• MACRO Bus Integrity Testing: Each SME module with MACRO interface capability is tested for correct ring initialization, node address assignment, and cyclic data exchange at rated communication speed. Modules that fail ring synchronization are rejected regardless of visual condition.
• Servo Loop Closure Verification: For motion board variants (RTMB prefix), the servo control loop is closed against a reference load to verify current regulation accuracy, encoder feedback processing, and fault detection response time.
• Firmware Version Logging: The firmware version embedded in each module is read and recorded. Customers specifying a target firmware version for compatibility with their host controller can request version-matched units.
• Thermal Stress Screening: Modules are subjected to a 4-hour burn-in cycle at rated operating temperature to screen for latent component failures common in aged power electronics.
• Connector and Backplane Pin Inspection: SME backplane connectors are inspected under magnification for bent pins, oxidation, and mechanical damage — a common failure mode in modules removed from rack systems without proper ESD precautions.
