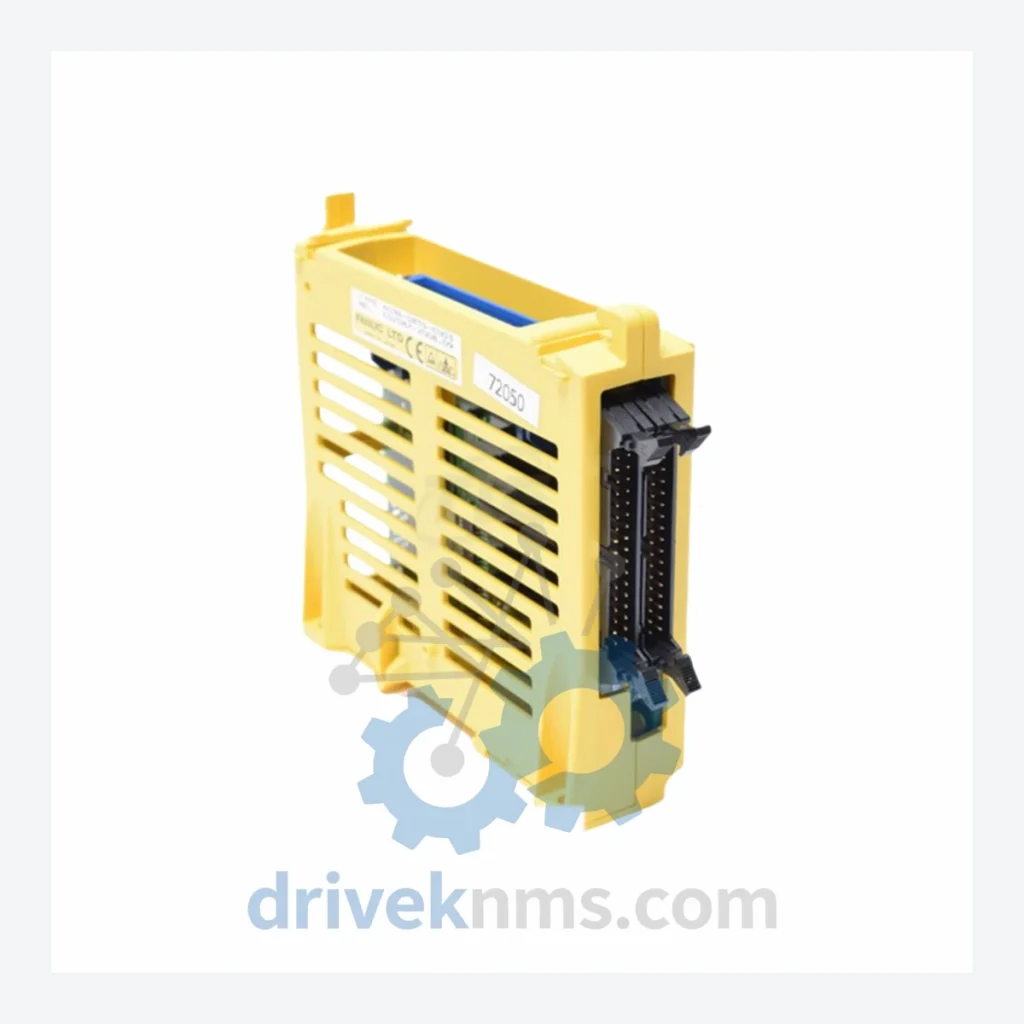

FANUC A03B-0815-C003 I/O Expansion Module – Obsolete Series 0/16/18/21 Spare Part

When a FANUC A03B-0815-C003 I/O Expansion Module fails on a production line still running Series 0, 16, 18, or 21 CNC controls, the operational decision is rarely simple. FANUC discontinued this module years ago, and the path to a modern replacement is not a swap — it is a full control system retrofit. Engineering assessments, new wiring harnesses, PLC reprogramming, machine re-certification, and production downtime can collectively push retrofit costs into the hundreds of thousands of dollars, often exceeding the residual value of the machine itself. DriveKNMS maintains verified stock of the A03B-0815-C003 specifically to give plant managers and maintenance engineers a direct, low-cost alternative to that scenario.

Technical Specifications

Note: Electrical parameters such as voltage ratings and I/O channel counts are not published here to prevent specification errors. Contact us for verified datasheet documentation prior to installation.

Solving the Discontinued Hardware Crisis

The FANUC Series 0/16/18/21 platform powered a generation of machining centers, lathes, and multi-axis systems across automotive, aerospace, and heavy manufacturing. Many of these machines remain mechanically sound and fully productive — the control system is the only aging component. The A03B-0815-C003 I/O Expansion Module sits at the communication boundary between the CNC controller and peripheral devices: tool changers, coolant systems, door interlocks, and auxiliary axes. A failure here does not degrade performance gradually — it stops the machine.

Because FANUC's current control architecture (Series 30i/31i/32i) uses a fundamentally different I/O bus structure, there is no direct modern equivalent. Sourcing a genuine A03B-0815-C003 is the only path to restoring the machine without a full retrofit. For facilities operating multiple machines on the same legacy platform, holding at least one spare unit is not optional — it is a maintenance obligation. A single unplanned retrofit, triggered by an unavailable spare, will cost more than a multi-year inventory of critical modules.

Extending Asset Life 5–10 Years: A Practical Strategy for Plant Management

The economic case for maintaining legacy CNC assets is straightforward when the numbers are examined honestly. A machining center with a replacement value of $500,000–$2,000,000 that is mechanically sound represents a capital asset worth protecting. The control system — including modules like the A03B-0815-C003 — represents a fraction of that value. A structured spare parts program built around identified failure-prone modules can defer capital expenditure by 5–10 years with a total investment that is typically less than 2% of the machine's replacement cost. The strategy requires three actions: identify the critical single-point-of-failure modules on each legacy machine, source verified spares while they remain available on the secondary market, and establish a documented inspection cycle for electrolytic capacitors and connector integrity. DriveKNMS supports this process by providing authenticated parts with full traceability documentation.

Condition & Reliability Assurance

Every A03B-0815-C003 unit processed by DriveKNMS passes a structured 5-step quality protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Board-level examination for physical damage, burn marks, cracked solder joints, and connector pin integrity. Units with corrosion on edge connectors or I/O terminals are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in modules of this era. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped with equivalent-specification components or rejected.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for Series 0/16/18/21 systems. Mismatched firmware is a documented cause of intermittent I/O faults that are difficult to diagnose in the field.
• Step 4 – Functional Bench Test: The module is powered and tested for correct I/O response under controlled conditions.
• Step 5 – Packaging and Documentation: Units are packaged in anti-static materials with inspection records. Lot traceability is maintained for all units shipped.

Key Features for System Maintenance

• Drop-in Replacement: The A03B-0815-C003 installs directly into the existing slot without hardware modification. No rewiring, no parameter changes, no re-commissioning of the CNC program.
• No Reprogramming Required: The replacement module is recognized by the Series 0/16/18/21 controller automatically. Machine operators can resume production without CNC engineering involvement.
• Avoids Engineering Retrofit Costs: A retrofit to a current-generation FANUC control requires new I/O wiring, servo amplifier replacement, parameter migration, and machine re-acceptance testing. The A03B-0815-C003 eliminates all of that cost.
• Supports Long-Term Spare Parts Planning: Available in single units or small quantities to support multi-machine facilities building a structured spare parts inventory.

FAQ

What warranty applies to a discontinued module like the A03B-0815-C003?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the obsolete status of this part, we recommend customers test the unit in a controlled environment before returning the failed module to service.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through verified industrial channels. FANUC modules carry identifiable board markings, date codes, and component configurations that are cross-checked during our inspection process. We do not source from unverified brokers.

Should I buy more than one unit?
For facilities with multiple machines using Series 0/16/18/21 controls, holding two or more units is a defensible maintenance decision. Secondary market availability of the A03B-0815-C003 is finite and declining. Once current stock is exhausted globally, the only remaining option is a full control retrofit.

Can you provide documentation for our maintenance records?
Yes. Inspection reports and shipping documentation are provided with every unit. We can also provide a letter of conformance for facilities with ISO or IATF quality system requirements.
