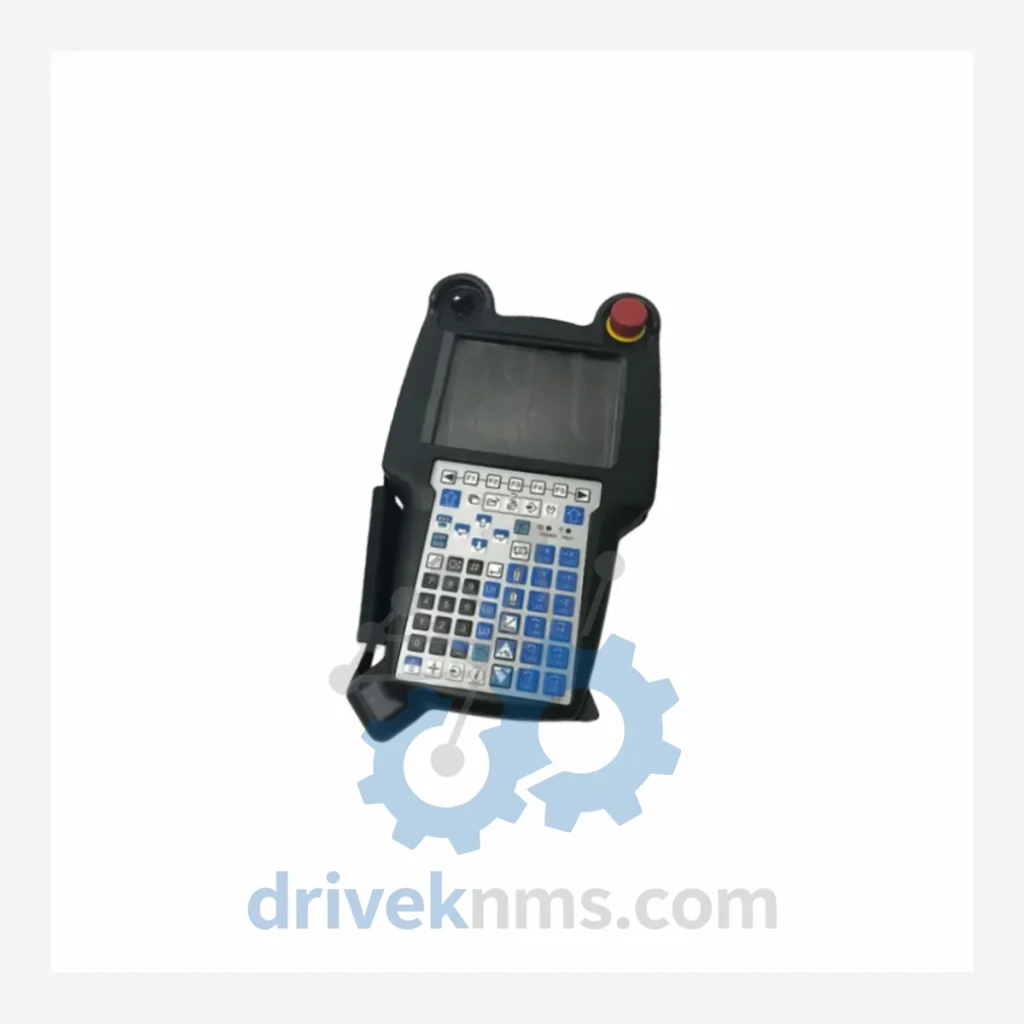

FANUC A05B-2518-C200 / C202 / C204 Teach Pendant – Obsolete Material Handling Robot Spare Part

When a FANUC teach pendant fails on a production line running R-J3 or R-J3iB robot controllers, the operational impact is immediate and measurable. Without a functional teach pendant, operators cannot jog axes, modify programs, or perform safety-critical overrides. The robot cell goes dark. In automotive stamping, palletizing, or material handling applications where a single robot cell may gate an entire downstream process, unplanned downtime costs routinely exceed $10,000–$50,000 USD per hour. A full robot system upgrade — new controller, new teach pendant, re-integration, re-programming, and operator retraining — typically runs $150,000–$400,000 USD per cell. The A05B-2518-C200, C202, and C204 are discontinued. FANUC no longer manufactures or supports these units through standard channels. DriveKNMS maintains verified stock of these units specifically to prevent that capital expenditure from becoming unavoidable.

Technical Specifications

Solving the Discontinued Hardware Crisis

The FANUC R-J3 and R-J3iB controller platforms were widely deployed throughout the 1990s and 2000s across automotive assembly, food and beverage palletizing, and general material handling. Many of these installations remain in active production today. The teach pendant — part numbers A05B-2518-C200, C202, and C204 — is the sole human-machine interface for these controllers. It is not interchangeable with pendants from the R-30iA or R-30iB generations without controller-level hardware and software modifications.

Factories operating these systems face a structural problem: FANUC's official end-of-life policy means spare parts are no longer available through authorized distributors. When a pendant fails due to LCD degradation, cable connector wear, E-stop switch failure, or membrane keypad delamination — all common failure modes after 15–20 years of continuous use — the plant engineering team has three options:

• Source a verified used or refurbished unit from a specialist supplier (lowest cost, fastest recovery)
• Upgrade the entire robot controller to a current-generation platform (highest cost, longest lead time)
• Operate the robot cell in a degraded or locked state, reducing throughput (unacceptable for most production environments)

DriveKNMS exists to make option one viable. We source, inspect, and hold inventory of the A05B-2518-C200 series specifically because the demand from legacy FANUC installations remains consistent and the supply window is closing.

Condition & Reliability Assurance

Every A05B-2518-C200 / C202 / C204 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full housing examination for cracks, connector pin damage, and cable jacket integrity. E-stop button actuation force and travel verified against OEM specification.
• Step 2 – Electrolytic Capacitor Assessment: Internal board inspection for capacitor bulging, electrolyte leakage, and ESR deviation — the primary failure mode in units stored for extended periods.
• Step 3 – LCD and Backlight Verification: Display powered and evaluated for dead pixels, contrast uniformity, and backlight output. Units with degraded displays are either repaired or downgraded.
• Step 4 – Keypad and Membrane Switch Testing: All keys tested for actuation response. Membrane delamination and key bounce are disqualifying defects.
• Step 5 – Functional Communication Test: Where test equipment permits, the pendant is connected to a compatible R-J3 or R-J3iB controller and verified for full bidirectional communication, axis jog response, and program display.

Units are classified as: New Old Stock (NOS), Refurbished – Grade A, or Refurbished – Grade B. Grade classification is disclosed at time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The A05B-2518-C200 / C202 / C204 connects directly to the R-J3 and R-J3iB controller pendant port using the original cable and connector. No hardware adapters required.
• No reprogramming required: Robot programs, system variables, and mastering data reside in the controller, not the pendant. Swapping the pendant does not affect stored programs or calibration data.
• No engineering rework: Unlike a controller upgrade, a pendant replacement requires no changes to the robot cell's safety circuit wiring, PLC interface, or network configuration.
• Immediate operational recovery: A verified replacement pendant can restore a downed robot cell to full operation within the time required for physical installation — typically under 30 minutes for a trained technician.
• Asset life extension: Maintaining a spare pendant in inventory extends the viable service life of the entire R-J3 robot system by 5–10 years, deferring a six-figure capital replacement decision.

FAQ

Q: What warranty applies to a discontinued part like the A05B-2518-C200?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on verified New Old Stock units. Warranty covers functional failure under normal operating conditions. Physical damage after installation is excluded.

Q: How do I confirm the unit is genuine FANUC and not a counterfeit?
A: All units are inspected for OEM markings, board revision labels, and FANUC part number silk-screening. We do not source from unverified brokers. Provenance documentation is available on request for critical applications.

Q: Should I buy one unit or hold multiple as long-term spares?
A: For any facility operating more than two R-J3 or R-J3iB robot cells, holding a minimum of two spare pendants is the standard recommendation. Global supply of these units is finite and diminishing. Procurement cost today is a fraction of the cost of sourcing under emergency conditions 12–24 months from now.

Q: Can the C200, C202, and C204 variants be used interchangeably?
A: The functional differences between variants are primarily related to cable configuration and regional language settings. Compatibility with a specific controller should be confirmed at time of order. Contact our technical team with your controller serial number for confirmation.
