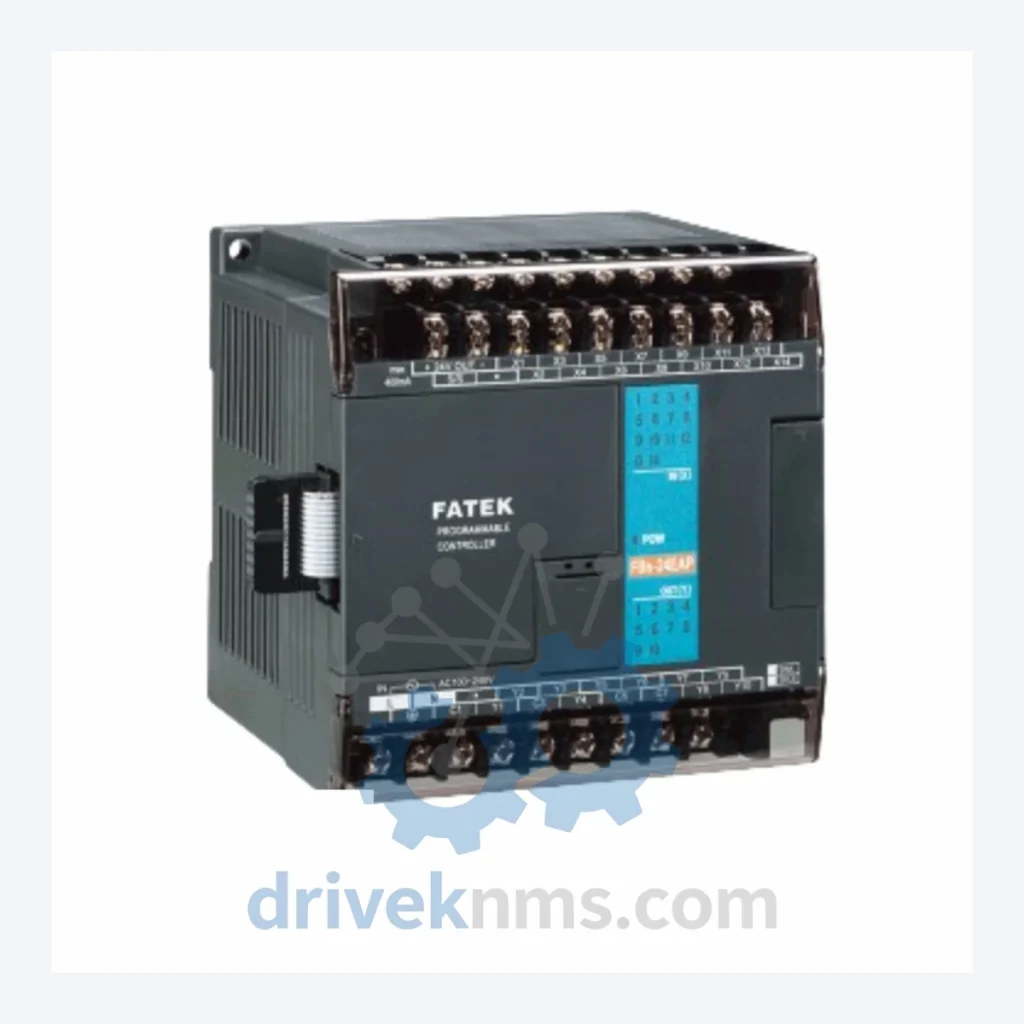

Fatek FBS-24XYR Expansion Module

Technical Dossier

Product Details And Specifications

FATEK FBS Series Technical Notes

The FATEK FBS Series is a compact, high-density programmable logic controller platform manufactured by FATEK Automation Corporation (Taiwan). It has established a significant installed base across heavy industrial sectors including petrochemical plants, water treatment facilities, power generation stations, and discrete manufacturing lines throughout Asia, the Middle East, and Eastern Europe. The FBS architecture is characterized by its modular backplane design, which allows engineers to configure systems ranging from standalone micro-PLCs to distributed I/O networks with up to 512 I/O points per base unit. Its deterministic scan cycle, robust EMI shielding, and wide operating temperature range (0–55°C) make it a standard specification in environments where reliability over multi-decade operational lifespans is a procurement requirement.

The Evolution of FBS Architecture

The FBS Series was introduced in the early 2000s as a successor to FATEK's FB Series, addressing demand for higher I/O density and improved communication flexibility. The original FBS platform used a proprietary FATEK communication protocol over RS-232/RS-485 at up to 115,200 bps. Subsequent hardware revisions introduced Ethernet TCP/IP communication adapters (FBS-CBEH), CANopen master/slave modules, and PROFIBUS-DP interfaces, enabling FBS controllers to integrate into multi-vendor DCS environments without gateway hardware.

FBS Full Catalog & Functionalities (SKU List)

CPU / Main Units

• FBS-10MA: 6DI/4DO relay output, 10-point all-in-one micro CPU unit
• FBS-14MA: 8DI/6DO relay output, 14-point compact CPU with RS-232 port
• FBS-20MA: 12DI/8DO relay output, 20-point CPU, built-in analog option
• FBS-32MA: 16DI/16DO relay output, 32-point mid-range CPU module
• FBS-32MT: 16DI/16DO transistor output, 32-point high-speed CPU module
• FBS-60MA: 36DI/24DO relay output, 60-point high-density CPU unit
• FBS-60MT: 36DI/24DO transistor output, 60-point high-speed CPU unit

Digital Expansion Modules (I/O)

• FBS-8X: 8-point digital input expansion, 24VDC sink/source
• FBS-8YR: 8-point relay digital output expansion module
• FBS-8YT: 8-point transistor digital output expansion module
• FBS-16X: 16-point digital input expansion, 24VDC
• FBS-16YR: 16-point relay output expansion module
• FBS-16YT: 16-point transistor output expansion module
• FBS-24XYR: 14DI/10DO relay mixed I/O expansion, 24-point total — the subject of this listing
• FBS-24XYT: 14DI/10DO transistor mixed I/O expansion, 24-point high-speed variant

Analog Modules

• FBS-4AD: 4-channel analog input, 12-bit resolution, 0–10V / 4–20mA selectable
• FBS-2DA: 2-channel analog output, 12-bit resolution, voltage/current output
• FBS-4AD2DA: Combined 4AI/2AO analog mixed module for compact panel builds

Communication Adapters

• FBS-CBEH: Ethernet TCP/IP communication adapter, Modbus TCP support
• FBS-CB5: CANopen master/slave communication module
• FBS-CBDP: PROFIBUS-DP slave communication adapter

Quality Control for the FBS Range
