FEI 4035 273 43772 / 0010-75224 Extractor Assembly – Obsolete FEI SEM/FIB Spare Part

When an extractor assembly fails inside a focused ion beam (FIB) or scanning electron microscope (SEM) column, the instrument goes dark. There is no workaround, no bypass, and no software patch. The entire system stops producing data. For semiconductor fabs, materials research labs, and failure analysis departments, that downtime translates directly into delayed wafer lots, missed delivery commitments, and — in the worst case — a capital replacement decision that runs into the millions of dollars.

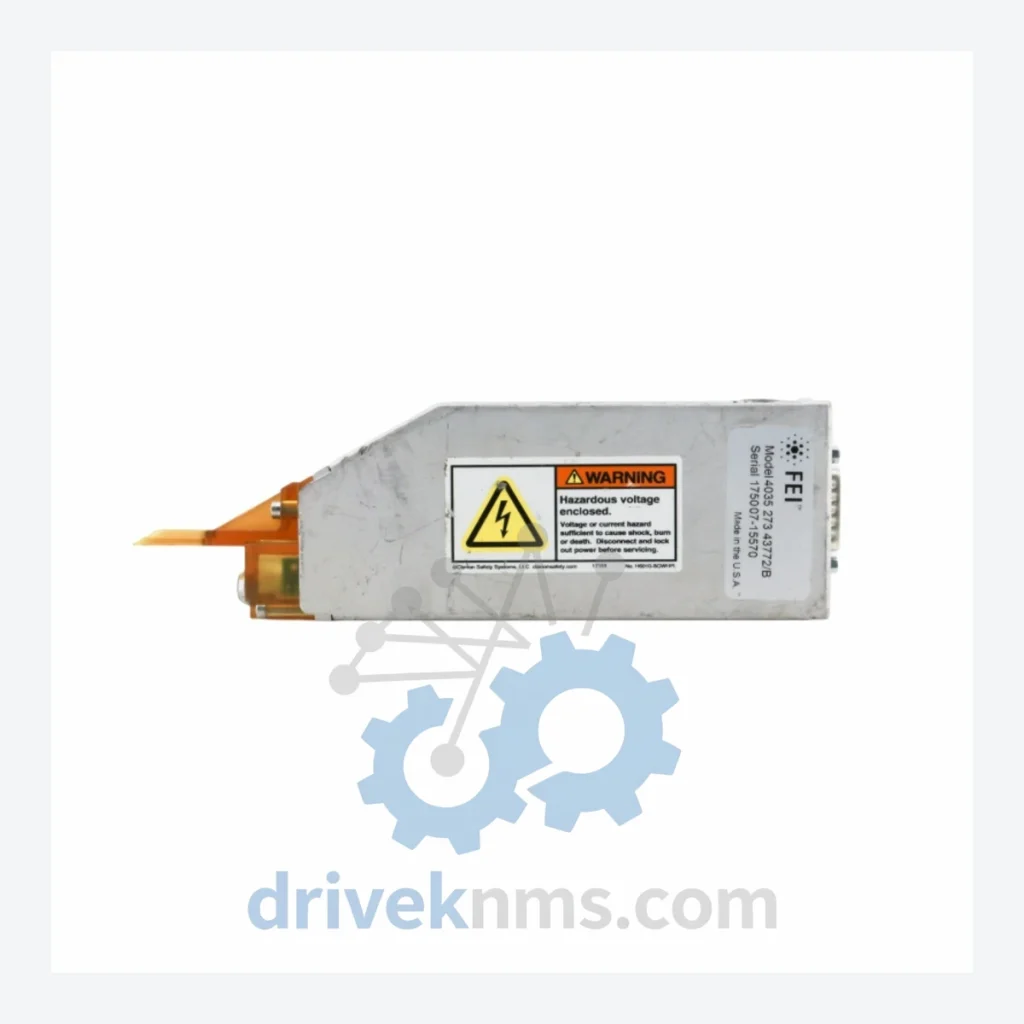

The FEI part number 4035 273 43772 (cross-reference: 0010-75224, assembly code DHL-0710 23 QS IHS 10-D6-A4.5/45-0.37-E319.1) is the extractor assembly used in legacy FEI electron and ion beam columns. FEI Company was acquired by Thermo Fisher Scientific in 2016, and support for older platform hardware has progressively narrowed. Sourcing this component through standard OEM channels is no longer reliable. DriveKNMS maintains verified physical stock of this assembly — a position that becomes more strategically significant with each passing quarter.

Technical Specifications

Note: Electrical parameters specific to this assembly are not published here to prevent misapplication. Contact our technical team for configuration verification before ordering.

Solving the Discontinued Hardware Crisis

The extractor assembly is the component responsible for drawing charged particles from the ion or electron source and accelerating them into the column optics. Its geometry, electrode spacing, and surface condition directly determine beam quality, spot size, and source lifetime. There is no generic substitute — the mechanical tolerances and electrical characteristics are matched to the specific column design.

FEI's legacy SEM and FIB platforms — including instruments built on the Nova, Quanta, Strata, and DB series architectures — remain in active production use at facilities worldwide. These systems were capital investments of USD 500,000 to over USD 2,000,000 at time of purchase. Replacing them with current-generation equivalents requires not only the hardware cost but also facility modifications, requalification of analytical methods, retraining of operators, and re-validation of any regulatory or quality system documentation tied to the instrument. The total transition cost routinely exceeds the original purchase price.

Against that backdrop, a single extractor assembly — properly sourced and verified — can restore full instrument function and defer that replacement decision by five to ten years. The economics are not complicated: the cost of this spare part is a rounding error compared to the cost of a forced platform migration.

Facilities that operate without a verified spare on the shelf are accepting a risk that is difficult to justify. Lead times for legacy FEI components through secondary market channels can run from weeks to months, depending on availability. An unplanned outage of that duration in a semiconductor or advanced materials environment carries consequences that extend well beyond the instrument itself.

Condition & Reliability Assurance

DriveKNMS applies a five-stage inspection protocol to all extractor assemblies before shipment. This process is designed specifically for the failure modes that affect precision vacuum components after extended storage or prior service.

Stage 1 – Visual and Dimensional Inspection: All electrode surfaces, mounting flanges, and insulator bodies are examined under magnification. Any mechanical damage, surface contamination, or dimensional deviation from specification results in rejection.

Stage 2 – Electrolytic Capacitor Assessment: Where the assembly includes associated drive electronics or bias circuitry, electrolytic capacitors are tested for capacitance drift and ESR degradation — the primary aging failure mode in stored assemblies.

Stage 3 – Firmware and Configuration Verification: For assemblies with embedded identification or calibration data, firmware version and stored parameters are confirmed against known-good references.

Stage 4 – Pin and Connector Integrity Check: All electrical connectors, feedthrough pins, and contact surfaces are inspected for oxidation, fretting corrosion, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.

Stage 5 – Functional Pre-shipment Review: Final documentation review confirms part number traceability, inspection records, and packaging integrity before dispatch.

Key Features for System Maintenance

• Drop-in replacement: This assembly installs directly into the original column mounting position. No mechanical adaptation, no custom machining.
• No reprogramming required: The assembly does not require column realignment software changes beyond the standard source exchange procedure already documented in the FEI service manual.
• Avoids engineering rework costs: Using the correct OEM-equivalent part eliminates the need for any column redesign, interface modification, or third-party engineering engagement.
• Preserves instrument qualification status: Substituting a non-OEM-equivalent component can invalidate instrument qualification records. This part maintains the original design intent.
• Supports long-term spares strategy: Facilities managing multiple FEI instruments should consider holding at least one verified spare per platform type. The cost of a second unit is negligible relative to the cost of a second unplanned outage.

FAQ

Q: What warranty applies to this obsolete part?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship for refurbished units, and a 180-day warranty for verified new surplus stock. Warranty terms are confirmed in writing at time of order.

Q: How do I know the unit is new or properly refurbished — not a worn-out pull?
A: Every unit shipped by DriveKNMS is accompanied by an inspection report documenting the five-stage QA process described above. Traceability records are retained. If a unit does not pass all five stages, it is not offered for sale.

Q: Should I buy more than one unit?
A: For facilities operating more than one FEI instrument on this platform, holding two units is a defensible position. Current stock levels for this part number are limited. Once existing inventory is exhausted, restock timelines are uncertain. The decision to hold a strategic spare is most cost-effective when made before an outage, not after.
