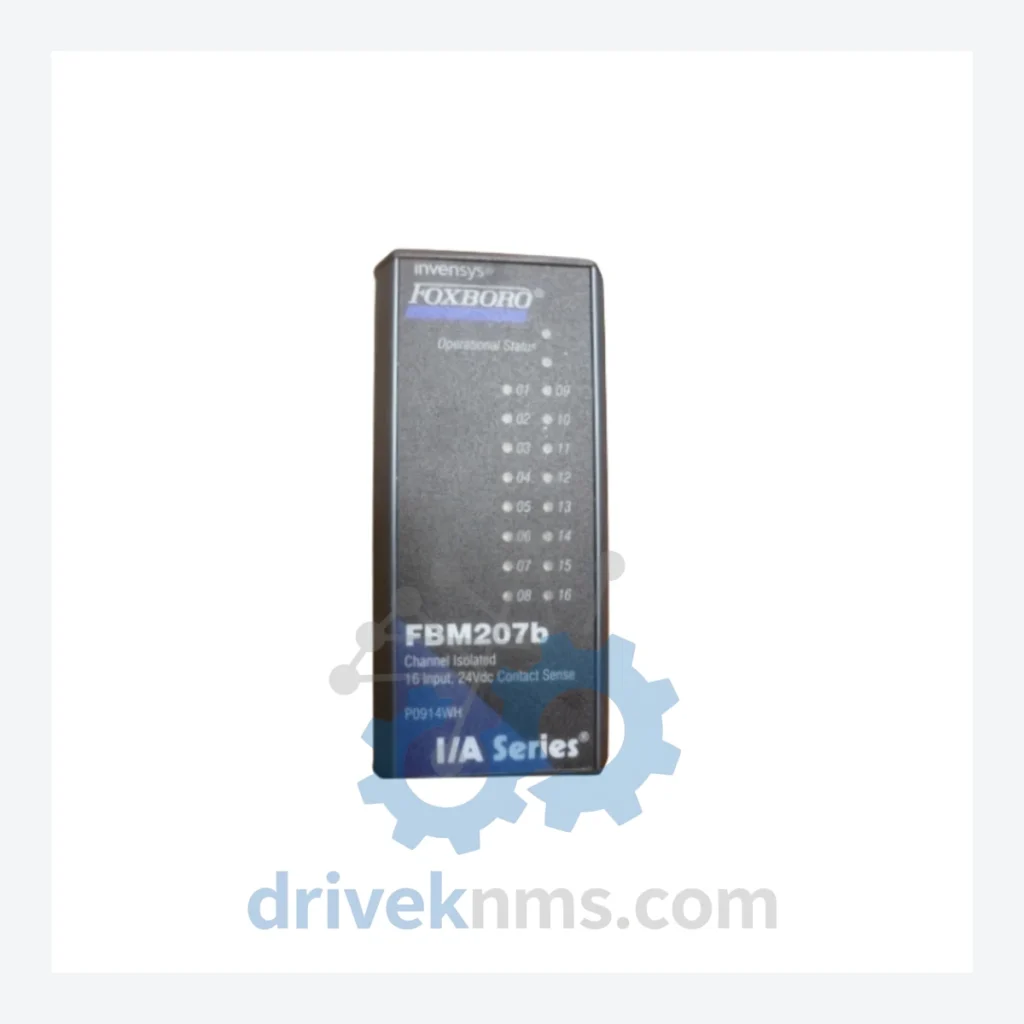

Foxboro FBM207B P0914WH: Channel Isolated 16-Input Analog Module | I/A Series DCS

Technical Dossier

Product Details And Specifications

Foxboro FBM Series: Comprehensive Module Range and Technical Overview

The Foxboro FBM (Fieldbus Module) series is the core I/O infrastructure of the Foxboro I/A Series Distributed Control System (I/A Series DCS), one of the most widely deployed process automation platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, crude oil refineries, and large-scale chemical processing facilities, the FBM series provides the field-level signal conditioning, isolation, and communication backbone that connects physical process instrumentation to the I/A Series control network. The FBM207B P0914WH specifically is a 16-channel, channel-to-channel isolated analog input module designed for high-density thermocouple, RTD, and millivolt signal acquisition in safety-critical environments where cross-channel interference cannot be tolerated.

The Evolution of FBM Series Architecture

The Foxboro I/A Series DCS was introduced in 1987 as one of the first fully distributed, open-architecture control systems. The FBM module family has evolved through several hardware generations while maintaining backward compatibility at the Nodebus and Fieldbus communication layer — a deliberate design decision that has allowed end users to operate mixed-generation hardware within the same control network for decades.

Generation 1 (1987–1995): Original FBM modules with parallel backplane architecture. Modules such as the FBM01, FBM02, and FBM04 established the baseline for analog and discrete I/O. These units used ceramic hybrid signal conditioning circuits and were rated for standard industrial environments.

Generation 2 (1995–2005): Introduction of enhanced isolation architectures and expanded channel counts. The FBM207 family emerged in this period, addressing the demand for higher channel density with per-channel galvanic isolation — critical for thermocouple inputs where ground loops between field devices would otherwise introduce measurement errors. The P0914WH suffix designates the specific hardware revision and conformal coating specification for this module.

Generation 3 / Modern Equivalents (2005–present): Foxboro introduced the Foxboro Evo platform and the FBM230/FBM231 series as functional successors, offering HART pass-through, enhanced diagnostics, and compatibility with the Control Core Services (CCS) software environment. However, the installed base of FBM207B modules in legacy I/A Series systems remains substantial, and direct replacement with newer modules requires engineering validation of the control database configuration.

Compatibility note: FBM modules communicate over the Nodebus (a proprietary 10 Mbps token-passing network) and mount into FBM Enclosures (FBE) or Remote Enclosures (FRE). Module substitution across generations requires verification of the Letterbug address assignment and the associated Control Processor (CP) software block configuration.

FBM Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the Foxboro FBM series. Each entry reflects a distinct functional classification within the I/A Series I/O architecture.

Analog Input Modules:

• FBM201 P0914TQ: 8-channel analog input, 4–20 mA, non-isolated, standard process signals.
• FBM202 P0914TR: 8-channel analog input with HART communication pass-through capability.
• FBM204 P0914TS: 16-channel analog input, multiplexed, for high-density non-isolated signal acquisition.
• FBM207 P0914WH: 16-channel analog input, channel-to-channel isolated, thermocouple/RTD/mV inputs.
• FBM207B P0914WH: Revised hardware version of FBM207 with improved cold junction compensation and extended operating temperature range.
• FBM211 P0914YA: 8-channel analog input, high-speed, for fast-loop control applications.
• FBM214 P0914YD: 4-channel isolated analog input with integrated signal conditioning for RTD inputs.

Analog Output Modules:

• FBM205 P0914TU: 8-channel analog output, 4–20 mA, for control valve and actuator positioning.
• FBM206 P0914TV: 4-channel analog output with HART, for smart positioner communication.

Discrete Input Modules:

• FBM217 P0914YN: 32-channel discrete input, 24 VDC, for high-density digital signal acquisition.
• FBM220 P0914YQ: 16-channel discrete input, 120 VAC, for field contact monitoring.
• FBM224 P0914YU: 32-channel discrete input, isolated, for critical interlock monitoring.

Discrete Output Modules:

• FBM230 P0914ZA: 16-channel discrete output, 24 VDC, relay-driven, for solenoid valve control.
• FBM232 P0914ZC: 8-channel discrete output, 120 VAC, for motor starter and contactor control.

Communication & Specialty Modules:

• FBM237 P0914ZH: PROFIBUS DP communication adapter for third-party field device integration.
• FBM242 P0914ZM: Foundation Fieldbus H1 linking device for FF-compliant instrument networks.
• FBM203 P0914TT: Pulse input module for flow totalizer and turbine meter applications.

Sourcing Hard-to-Find & Obsolete FBM Series Parts

The FBM207B P0914WH and a significant portion of the FBM series have entered the mature-to-obsolete phase of their product lifecycle. Foxboro (now part of Schneider Electric) has formally discontinued manufacturing for several FBM module variants, with OEM support contracts increasingly limited to software-only coverage under the Foxboro Evo migration program.

DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished FBM series modules sourced from decommissioned I/A Series systems globally. Our procurement network covers North America, Europe, and Asia-Pacific, enabling us to fulfill single-unit emergency replacement orders as well as bulk spare parts packages for long-term maintenance contracts.

For end users operating I/A Series systems beyond the OEM support window, DriveKNMS provides: verified functional testing against original Foxboro module specifications; traceability documentation for each unit; and multi-year warranty options on refurbished stock. We do not list modules we cannot verify — all SKUs in our inventory have passed functional validation prior to listing.

Quality Control for the FBM Series Range

The FBM207B P0914WH presents specific testing challenges due to its 16-channel isolated architecture. Each channel pair operates on an independent galvanic isolation barrier, meaning a standard board-level power-on test is insufficient to validate inter-channel isolation integrity.

DriveKNMS applies the following test protocol to all FBM207B units:

• Isolation resistance test: Each channel-to-channel and channel-to-chassis isolation barrier is tested at 500 VDC per IEC 61010-1 requirements. Minimum acceptable isolation resistance: 100 MΩ.
• Cold junction compensation accuracy: Verified against NIST-traceable thermocouple reference sources across the full operating temperature range (0°C to 60°C ambient).
• Nodebus communication validation: Module is installed in a live I/A Series test rack and polled by a CP60 or CP270 control processor to confirm correct Letterbug response and data integrity.
• Analog accuracy verification: All 16 input channels are stimulated with calibrated mV sources and output values compared against the module's published accuracy specification (±0.1% of span for thermocouple inputs).
• Visual and mechanical inspection: Backplane connector pins, conformal coating condition, and component-level inspection for corrosion or thermal damage.

For FBM207B P0914WH availability, pricing, and technical consultation:

• Email: sale@driveknms.com
• WhatsApp: +86 18359293191
• Web: driveknms.com

© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
