Foxboro FBM Series: Comprehensive Module Range and Technical Overview

The Foxboro FBM (Fieldbus Module) series is a core I/O subsystem within the Foxboro I/A Series Distributed Control System (DCS), one of the most widely deployed process automation platforms in global heavy industry. FBM modules are installed across petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities. The series provides the physical interface layer between field instrumentation and the I/A Series control network, handling analog input/output, discrete input/output, and serial communications. The installed base of FBM hardware spans several decades of continuous industrial operation, making lifecycle support and spare parts availability a critical operational concern for plant engineers and maintenance teams worldwide.

The Evolution of FBM Architecture

The FBM series was introduced alongside the Foxboro I/A Series DCS in the mid-1980s, replacing the earlier SPEC 200 and SPEC 200 Micro analog control systems. The original FBM architecture used a 75 Ω coaxial Nodebus for communication between the FBM enclosures and the I/A Series workstations and processors. Early modules such as the FBM201 and FBM202 established the baseline for 4–20 mA analog signal handling, while discrete modules like the FBM207 addressed on/off field device interfacing.

Through the 1990s and 2000s, Foxboro expanded the FBM catalog to address HART protocol pass-through, FOUNDATION Fieldbus H1 segment hosting, and Profibus DP gateway functions. The FBM214 and FBM214B variants represent the evolution of the analog input module line, incorporating enhanced signal conditioning and improved noise rejection for demanding process environments. The FBM230 and FBM232 introduced serial and Modbus RTU communication capabilities, extending the I/A Series reach to third-party devices and legacy subsystems.

With the introduction of the Foxboro Evo platform in the 2010s, Schneider Electric (which acquired Foxboro parent Invensys in 2014) positioned Foxboro Evo as the migration path for I/A Series installations. However, the FBM hardware layer retains full compatibility with Foxboro Evo control cores, meaning existing FBM enclosures and modules continue to operate without replacement in most upgrade scenarios. This architectural continuity has extended the operational lifespan of FBM hardware well into the 2020s and beyond.

FBM Full Catalog & Functionalities (SKU List)

The following SKUs represent the core FBM module range. Each entry identifies the module's primary function within the I/A Series I/O subsystem.

Analog Input (AI) Modules

• FBM201: 8-channel analog input, 4–20 mA, non-isolated, standard process measurement.
• FBM202: 8-channel analog input, 4–20 mA, isolated per channel, high-integrity signal conditioning.
• FBM203: 8-channel analog input, thermocouple/RTD, temperature measurement with cold junction compensation.
• FBM204: 8-channel analog input, millivolt/thermocouple, low-level signal acquisition for temperature sensors.
• FBM211: 8-channel analog input, 4–20 mA with HART pass-through, supports HART field device diagnostics.
• FBM214: 16-channel analog input, 4–20 mA, high-density I/O for space-constrained enclosures.

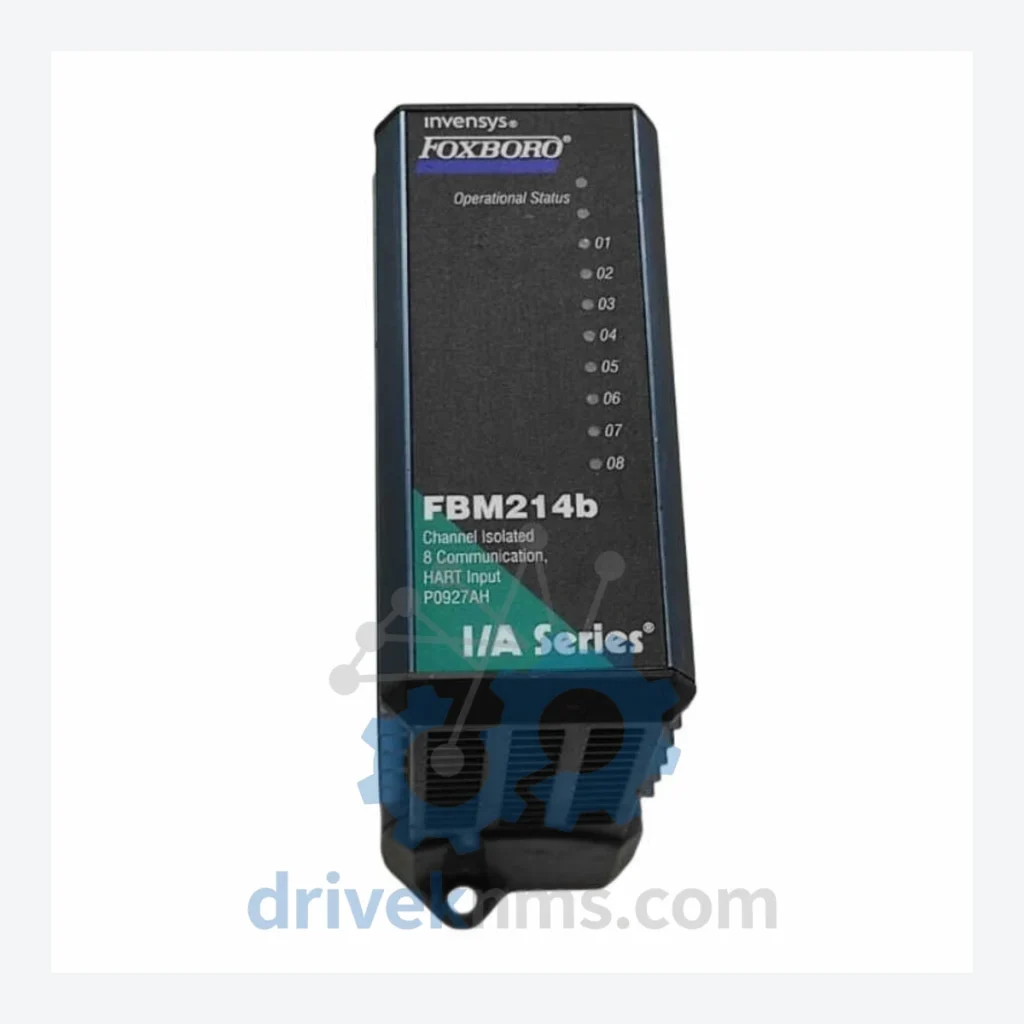

• FBM214B RH927AH: 16-channel analog input module, enhanced variant of FBM214 with improved EMC performance and updated backplane interface for I/A Series Nodebus environments.
• FBM217: 8-channel analog input, 4–20 mA, intrinsically safe (IS) rated for Zone 1 hazardous area installation.

Analog Output (AO) Modules

• FBM206: 8-channel analog output, 4–20 mA, for control valve positioners and variable speed drives.
• FBM224: 8-channel analog output, 4–20 mA with HART, supports smart positioner configuration via DCS.

Discrete Input (DI) Modules

• FBM207: 32-channel discrete input, 24 VDC, high-density on/off status monitoring for switches and contacts.
• FBM228: 16-channel discrete input, 120 VAC, for AC-powered field devices and motor status signals.

Discrete Output (DO) Modules

• FBM242: 16-channel discrete output, 24 VDC, relay-isolated, for solenoid valves and motor starters.

Communication & Specialty Modules

• FBM230: Serial communication module, RS-232/RS-485, Modbus RTU master/slave for third-party device integration.
• FBM232: Dual-port serial communication module, supports simultaneous Modbus RTU sessions on two independent ports.
• FBM233: FOUNDATION Fieldbus H1 segment interface, hosts up to 16 FF field devices per segment.

Sourcing Hard-to-Find & Obsolete FBM Parts

A significant portion of the installed FBM base consists of modules that Foxboro/Schneider Electric has classified as end-of-life or has discontinued from active production. Models including the FBM201, FBM202, FBM203, FBM204, FBM207, and FBM214 are no longer available through standard distribution channels. Plant operators facing unplanned failures of these modules are exposed to extended downtime if replacement stock is not pre-positioned.

DriveKNMS maintains a dedicated inventory of tested FBM spare modules sourced from decommissioned systems, authorized surplus channels, and long-term storage stock. All units are inspected, functionally tested against I/A Series backplane specifications, and documented with test records prior to shipment. DriveKNMS provides lifecycle extension support for FBM installations, including cross-reference assistance for identifying compatible replacement modules where direct equivalents are unavailable.

For plant maintenance teams operating under long-term service agreements or managing aging DCS infrastructure, DriveKNMS offers consignment stock programs and priority allocation for critical FBM module types. Inquiries for bulk quantities, emergency orders, and long-term supply contracts are handled directly by the technical sales team.

Quality Control for the FBM Range

FBM modules incorporate a multi-layer backplane bus architecture that requires functional validation beyond simple power-on testing. DriveKNMS applies a structured test protocol to all FBM units prior to dispatch:

• Backplane communication verification: Each module is seated in an I/A Series-compatible test enclosure and polled via Nodebus to confirm correct module identification and register response.
• Channel-level signal injection: For analog input modules, calibrated 4–20 mA signals are applied to each channel individually. Output accuracy is verified against the module's published specification (typically ±0.1% of span).
• Discrete I/O functional test: All discrete channels are cycled through on/off states and verified for correct state reporting and output switching.
• HART communication test: For HART-capable modules (FBM211, FBM224), a HART field communicator is used to confirm pass-through integrity on each channel.
• Visual and mechanical inspection: Backplane connectors, module locking mechanisms, and PCB condition are inspected for corrosion, mechanical damage, and component integrity.
• Burn-in period: Selected module types undergo a 24-hour powered burn-in to screen for early-life failures before shipment.
