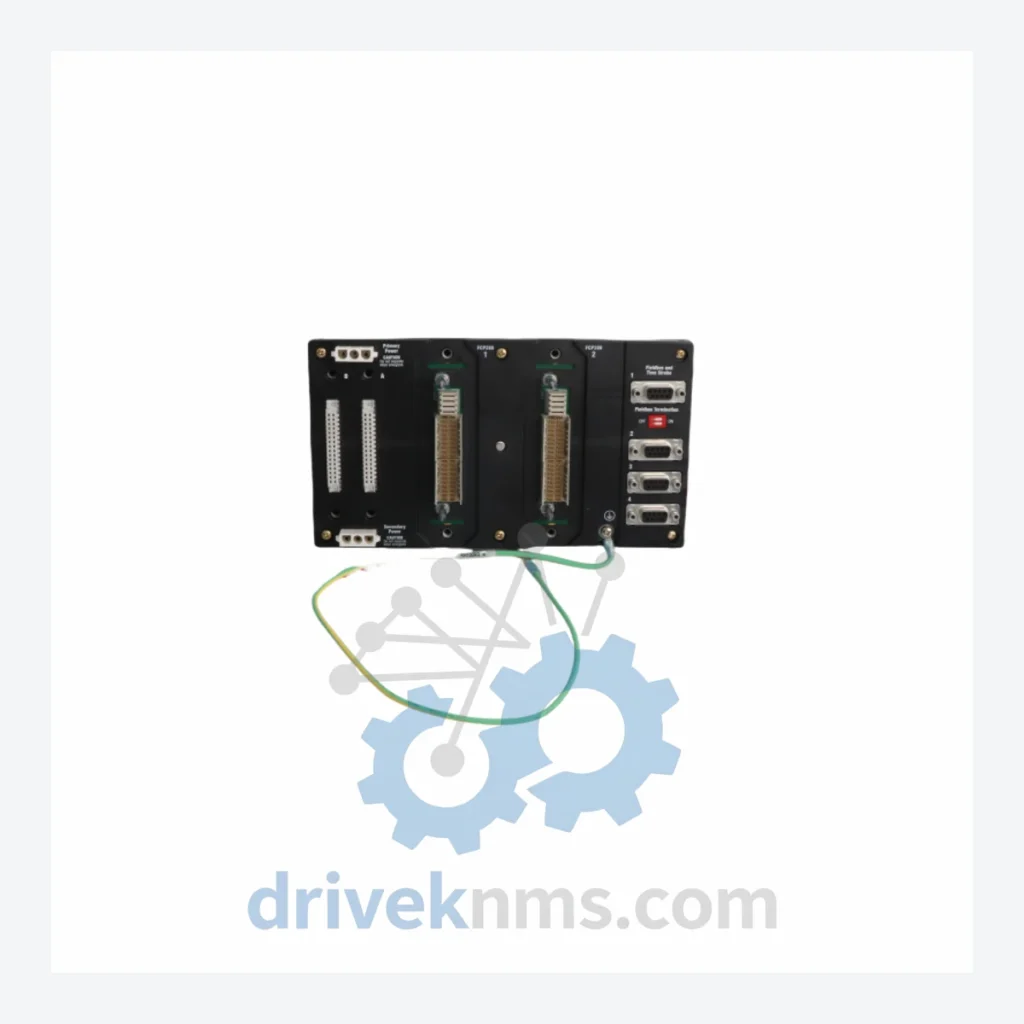

Foxboro RH924YF Mounted Modular Controller – Obsolete I/A Series Spare Part

When a Foxboro RH924YF fails on the plant floor, the immediate question is not where to find a replacement — it is whether the entire I/A Series control architecture must be retired. A full DCS migration project, including engineering, commissioning, operator retraining, and production downtime, routinely exceeds USD $2–5 million for a mid-scale process unit. Against that figure, a single verified spare module represents a fraction of the cost and months of avoided disruption. DriveKNMS maintains allocated stock of the RH924YF specifically to serve facilities that cannot afford to treat a module failure as a migration trigger.

Technical Specifications

Note: Electrical parameters specific to this module variant are not published in open documentation. DriveKNMS does not fabricate specifications. Buyers requiring detailed electrical data should request the original Foxboro datasheet at the time of inquiry.

Solving the Discontinued Hardware Crisis

The Foxboro I/A Series was deployed extensively across refining, petrochemical, pulp and paper, and power generation facilities from the 1980s through the 2000s. Many of these installations remain in active production service. The RH924YF mounted modular controller occupies a defined slot in the I/A Series architecture; its communication protocol, addressing scheme, and physical form factor are specific to that platform. There is no generic substitute that can be installed without engineering intervention.

When OEM support ends, the supply chain for these modules collapses rapidly. Distributors clear inventory, repair depots close, and within a few years the only available units are those recovered from decommissioned plants — a pool that shrinks with every passing quarter. Facilities that have not pre-positioned spare stock face a binary choice at the point of failure: pay a significant premium for whatever units remain on the secondary market, or commit to a capital project that was not budgeted and was not planned.

The rational response to this dynamic is a structured spare parts strategy executed before failure occurs. A single RH924YF held in a climate-controlled store room costs a fraction of one day of unplanned downtime on a process unit. For plant managers operating under capital expenditure constraints, this is not a procurement decision — it is an asset protection decision.

Extending Automation Asset Life by 5–10 Years: A Practical Framework

Facilities running Foxboro I/A Series infrastructure can realistically extend operational life by a decade without a full DCS replacement, provided the following disciplines are maintained:

• Critical spare identification: Audit the installed base and identify every module type for which no redundant unit exists in the control room. The RH924YF, if it is a single-point-of-failure component in your architecture, belongs at the top of that list.
• Tiered stock positioning: Hold at minimum one cold spare per unique module type. For high-criticality loops, consider two. Storage conditions matter — temperature-stable, low-humidity environments prevent electrolytic capacitor degradation and connector oxidation.
• Firmware version control: Before any replacement module is installed, verify that its firmware revision is compatible with the existing system configuration. Mismatched firmware in I/A Series environments can cause communication faults that are difficult to diagnose under pressure.
• Scheduled condition assessment: Electrolytic capacitors in modules manufactured in the 1990s and early 2000s have a finite service life. A proactive inspection program — checking for bulging, leakage, or elevated ESR — can identify modules approaching end-of-life before they fail in service.
• Vendor relationship management: Establish a relationship with a specialist supplier of Foxboro legacy parts before you need one urgently. Emergency procurement under production pressure produces poor outcomes. DriveKNMS maintains ongoing stock of I/A Series components and can advise on availability trends.

Condition & Reliability Assurance

Every RH924YF unit processed by DriveKNMS passes a five-stage inspection protocol before it is offered for sale:

1. Visual and mechanical inspection: Full examination of the PCB, connector pins, housing, and labeling. Units with physical damage, corrosion, or evidence of field repair are rejected at this stage.
2. Electrolytic capacitor assessment: Capacitors are the primary failure mode in aged industrial electronics. Each unit is assessed for physical deformation and, where test equipment permits, capacitance and ESR values are checked against specification.
3. Firmware version verification: The firmware revision is documented and disclosed to the buyer prior to shipment. This allows the receiving engineer to confirm compatibility before the unit reaches the plant floor.
4. Connector and pin integrity check: All edge connectors and backplane pins are inspected for oxidation, bending, and contamination. Affected contacts are cleaned using appropriate methods; units with structural pin damage are rejected.
5. Functional power-on test (where applicable): Units that can be safely energized in a bench environment are powered on and observed for fault indicators. Results are documented.

Key Features for System Maintenance

• Drop-in replacement: The RH924YF installs directly into the existing I/A Series enclosure slot. No mechanical modification is required.
• No reprogramming required: The module adopts the configuration resident in the system. Plant engineers do not need to rebuild control strategies or reconfigure field device assignments.
• Avoids engineering reconstruction costs: A verified replacement module eliminates the need for a migration feasibility study, new hardware specification, FAT/SAT testing, and the associated engineering fees — costs that typically run into six figures even for a partial system upgrade.
• Preserves validated process control logic: In regulated industries (pharmaceutical, food and beverage, nuclear), replacing a DCS platform triggers revalidation requirements. Maintaining the existing Foxboro I/A Series architecture with spare modules avoids this compliance burden entirely.

Frequently Asked Questions

What warranty applies to a discontinued module?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the age of the hardware, we recommend buyers treat this as a bridge solution and maintain at least one additional spare in reserve.

How do I know the unit is genuine and not counterfeit?
All units are sourced from decommissioned industrial sites or authorized surplus channels. Physical markings, PCB revision codes, and component dates are cross-referenced during inspection. We do not source from unverified brokers.

Should I buy more than one unit?
For any module that is a single point of failure in a production-critical loop, holding two units is the minimum defensible position. The RH924YF is no longer manufactured. Each unit that leaves the secondary market permanently reduces the available pool. Procurement cost today is lower than procurement cost in 18 months.

Can you source other Foxboro I/A Series modules?
Yes. DriveKNMS specializes in legacy Foxboro, Honeywell, ABB, and Siemens industrial control components. Contact us with your full bill of materials for a consolidated availability check.
